3.5 Control Shelf

3 3
1
2
3
4
5
6
1 LCP cradle (LCP not shown)
2 Bus terminal switch
(see chapter 5.8.6 Configuring RS485 Serial Communication)
3 Serial communication terminals (see Table 5.1)
4 Digital input/output terminals (see Table 5.2)
5 Cable/EMC clamps
6 Relay 1 and relay 2 (see Illustration 5.19)
7 Control card (underneath LCP and control terminals)

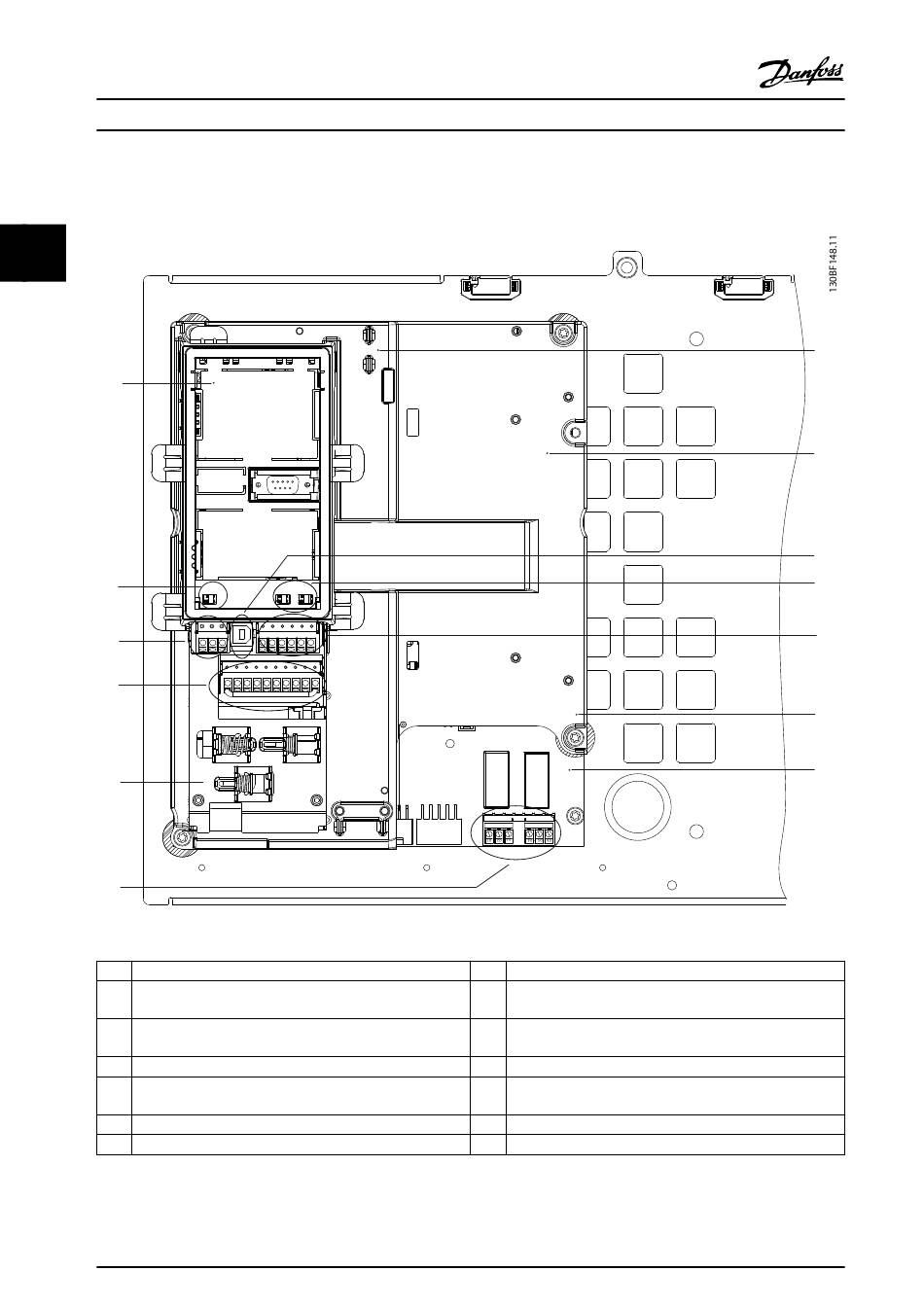

Illustration 3.3 View of Control Shelf
10
VLT® Refrigeration Drive FC 103
61 68 69 39 42 50 53 54 55
Remove Jumper to activate Safe Stop
12 13 18 19 27 29 32 33 20 37
Danfoss A/S © 04/2018 All rights reserved.
RELAY 1 RELAY 2
8 Control shelf
9 USB port
10 Analog input switches A53/A54
(see chapter 5.8.11 Selecting Voltage/Current Input Signal)
11 Analog input/output terminals (see Table 5.3)
12 Brake resistor terminals, 104–106
(on power card underneath control shelf )
13 Power card (underneath the control shelf )
– –
7
8
9
10
11
12
13
