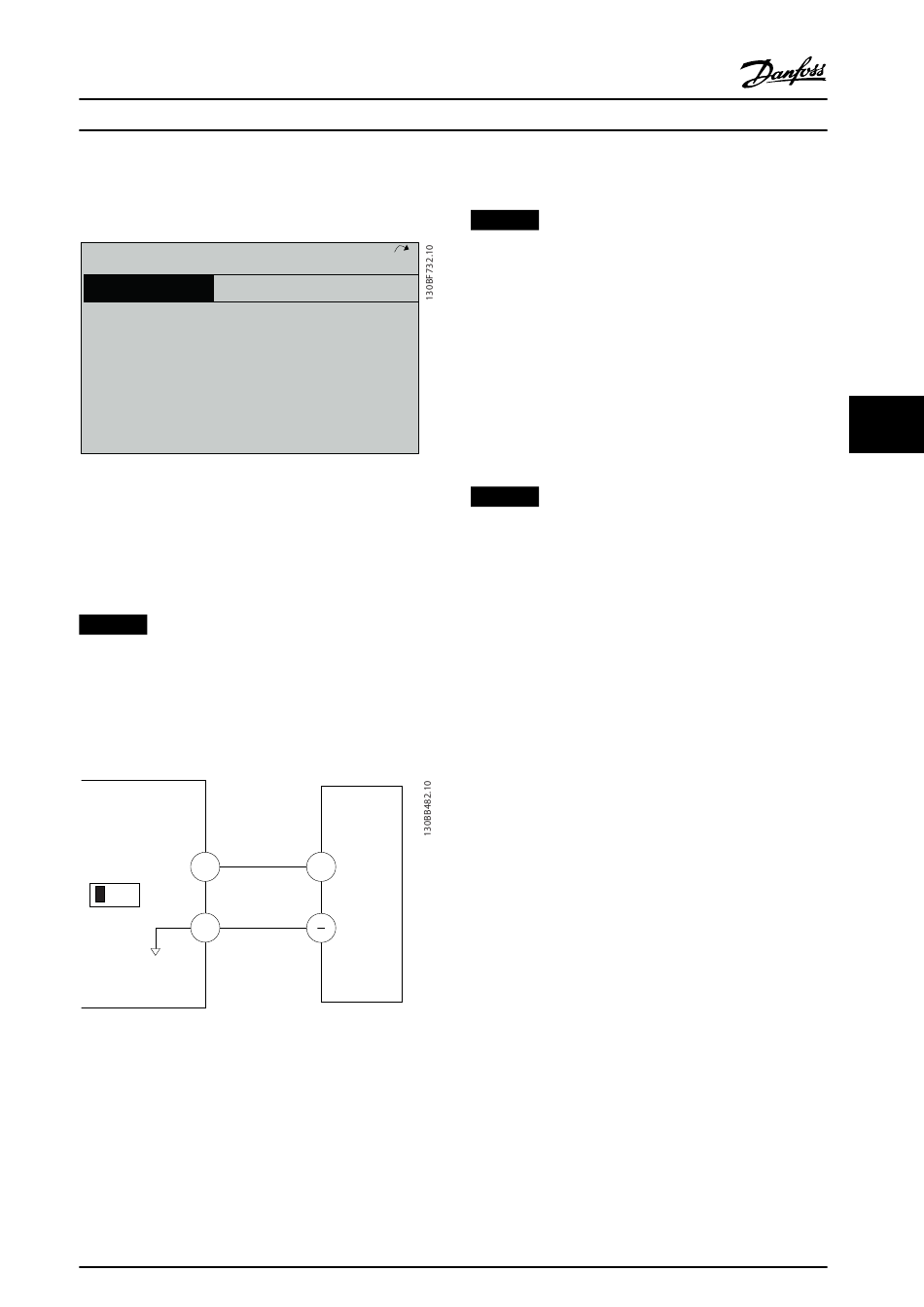

Commissioning
10. Select parameter 6-15 Terminal 53 High Ref./Feedb.
Value. Set maximum speed reference on terminal
53 at 50 Hz and press [OK].
14.7 %
Analog Reference
6 - 15 Terminal 53 High
Ref./Feedb. Value
50.000
Illustration 6.11 Parameter 6-15 Terminal 53 High Ref./Feedb.
Value
With an external device providing a 0–10 V control signal
connected to drive terminal 53, the system is now ready
for operation.
NOTICE
In Illustration 6.11, the scroll bar on the right of the
display is at the bottom. This position indicates the
procedure is complete.
Illustration 6.12 shows the wiring connections used to
enable the external device set up.
53
6-1*
U - I
A53
55
Illustration 6.12 Wiring Example for External Device Providing
0–10 V Control Signal
MG16P222
Operating Guide
0.00 A 1(1)
Q3-21
+
0-10V
Danfoss A/S © 04/2018 All rights reserved.
6.4.2 Entering System Information
NOTICE
SOFTWARE DOWNLOAD
For commissioning via PC, install MCT 10 Set-up
Software. The software is available for download (basic
version) or for ordering (advanced version, code number
130B1000). For more information and downloads, see
www.danfoss.com/en/service-and-support/downloads/dds/
vlt-motion-control-tool-mct-10/.
The following steps are used to enter basic system
information into the drive. Recommended parameter
settings are intended for start-up and checkout purposes.
Application settings vary.
NOTICE
Although these steps assume that an asynchronous
motor is used, a permanent magnet motor can be used.
For more information on specific motor types, see the
product-specific programming guide.
1. Press [Main Menu] on the LCP.
2. Select 0-** Operation/Display and press [OK].
3. Select 0-0* Basic Settings and press [OK].
4. Select parameter 0-03 Regional Settings and
press [OK].
5. Select [0] International or [1] North America as
appropriate and press [OK]. (This action changes
the default settings for some basic parameters).
6. Press [Quick Menus] on the LCP and then select
02 Quick Setup.
7. Change the following parameters settings listed
in Table 6.3 if necessary. The motor data is found
on the motor nameplate.
6 6
53
