AWG5200 Series Technical Reference

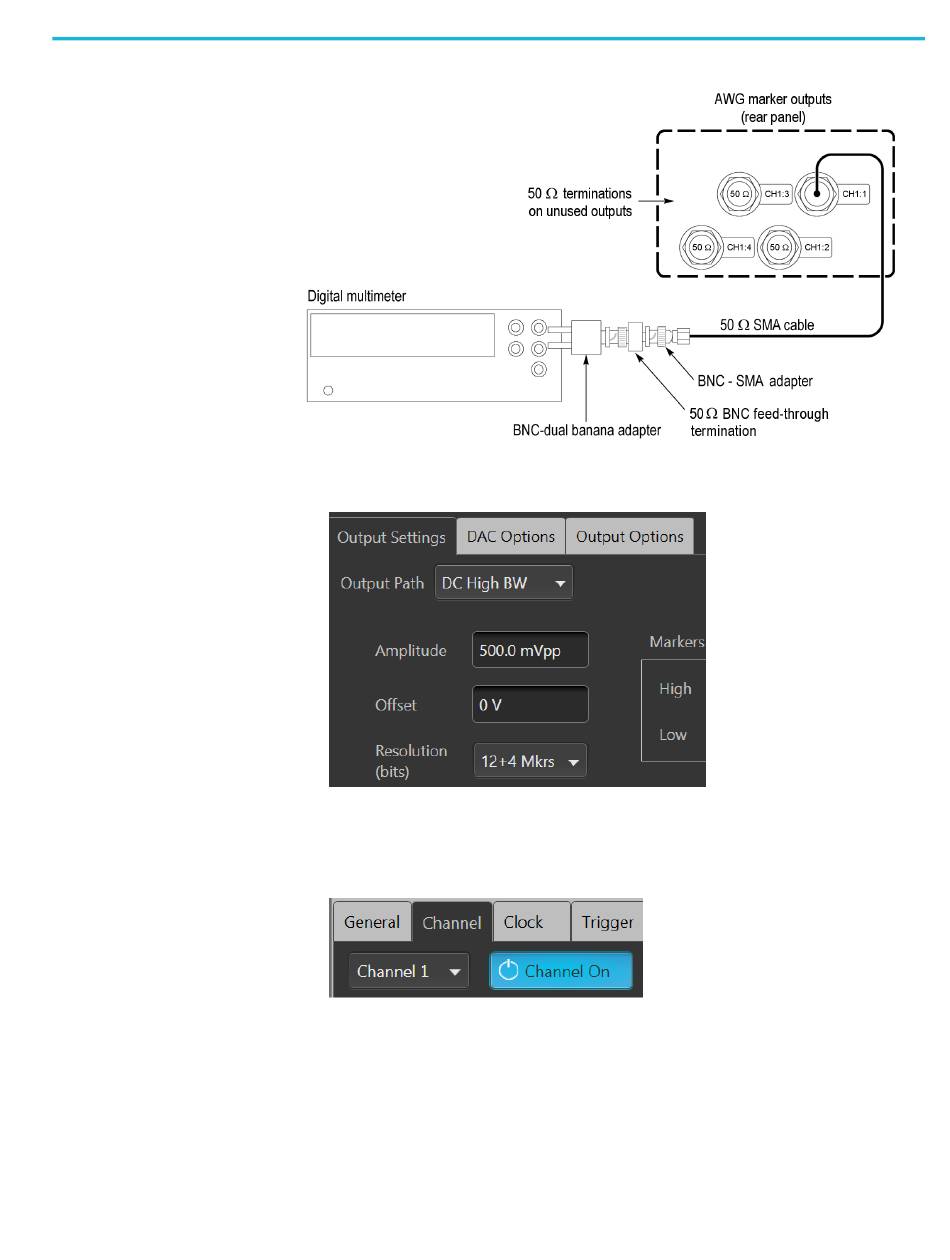

7. In the Setup -> Channel tab, select Output Settings and set the Channel 1
Resolution to 12+4 Mkrs.
8. Press the AWG front panel All Outputs Off button (or click All Outputs Off
on the Home screen) to enable the outputs (front panel light off).
9. Enable the Channel 1 output.
10. In the Setup -> Channel tab, select Output Settings and set the Channel 1
Marker High Level setting as shown in the first row of the following table.
(See Table 42.)
Performance tests
59
