10 MHz reference frequency accuracy

AWG5200 Series Technical Reference
Required equipment
Frequency counter
SMA female-to-BNC male adapter
50 Ω SMA cable
1. Click the Reset to Default Setup button in the toolbar

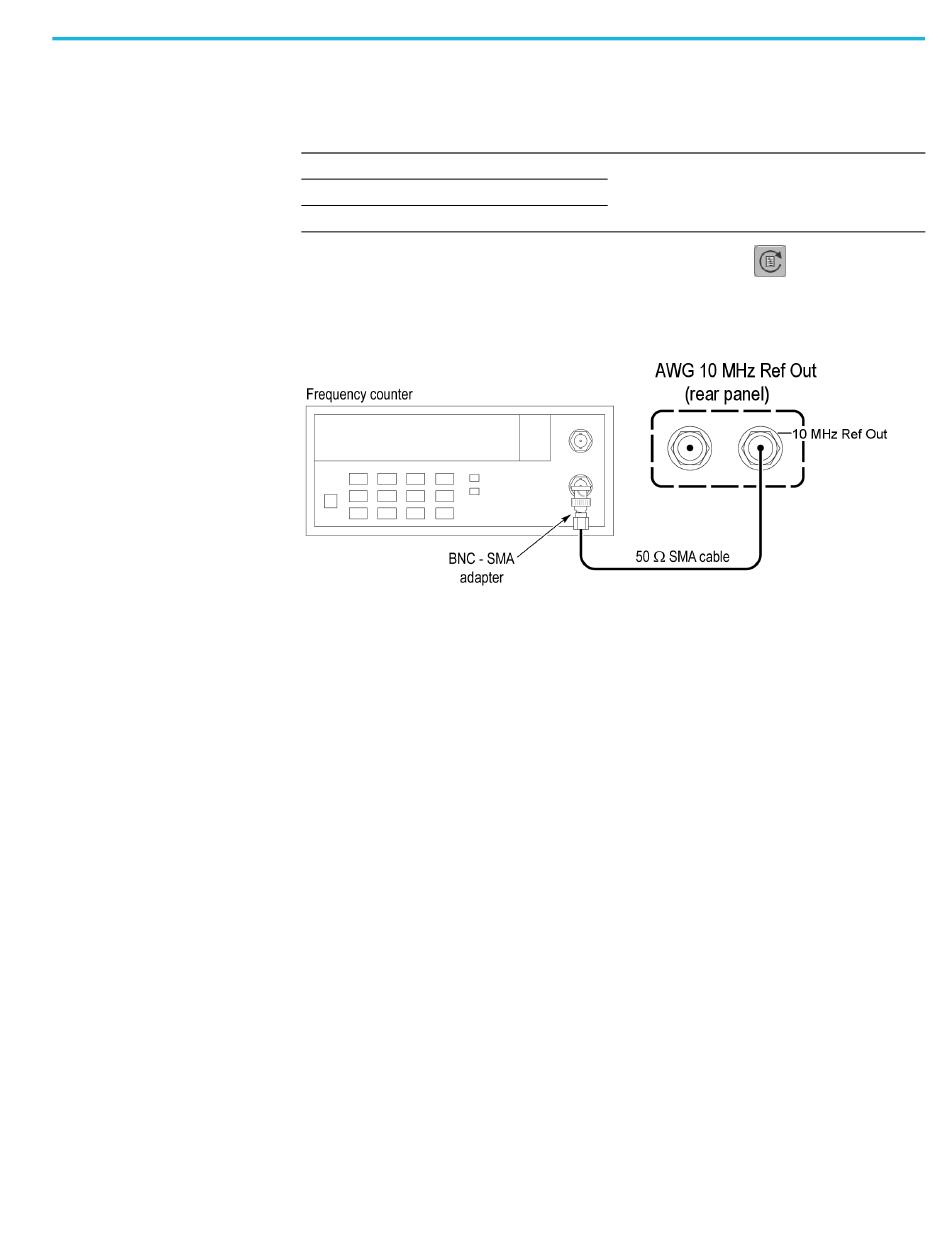

2. Connect the 10 MHz Reference Output on the rear of the AWG to the input of
the Frequency Counter. Use a 50 Ω SMA cable and a BNC-SMA adapter.
3. On the Frequency Counter, press the Meas and the Freq buttons.
4. Verify that the frequency counter reading falls within the range of
9.99998 MHz to 10.00002 MHz.
5. Disconnect the test setup.
Performance tests
Prerequisites
(See page 42, Prerequisites.)
.
