Tektronix AWG5200 Series Technical Reference page 62

Performance tests
DC High Volt output path
48
20. Press the AWG front panel All Outputs Off button (or click All Outputs Off
on the Home screen) to enable the outputs (front panel light off).

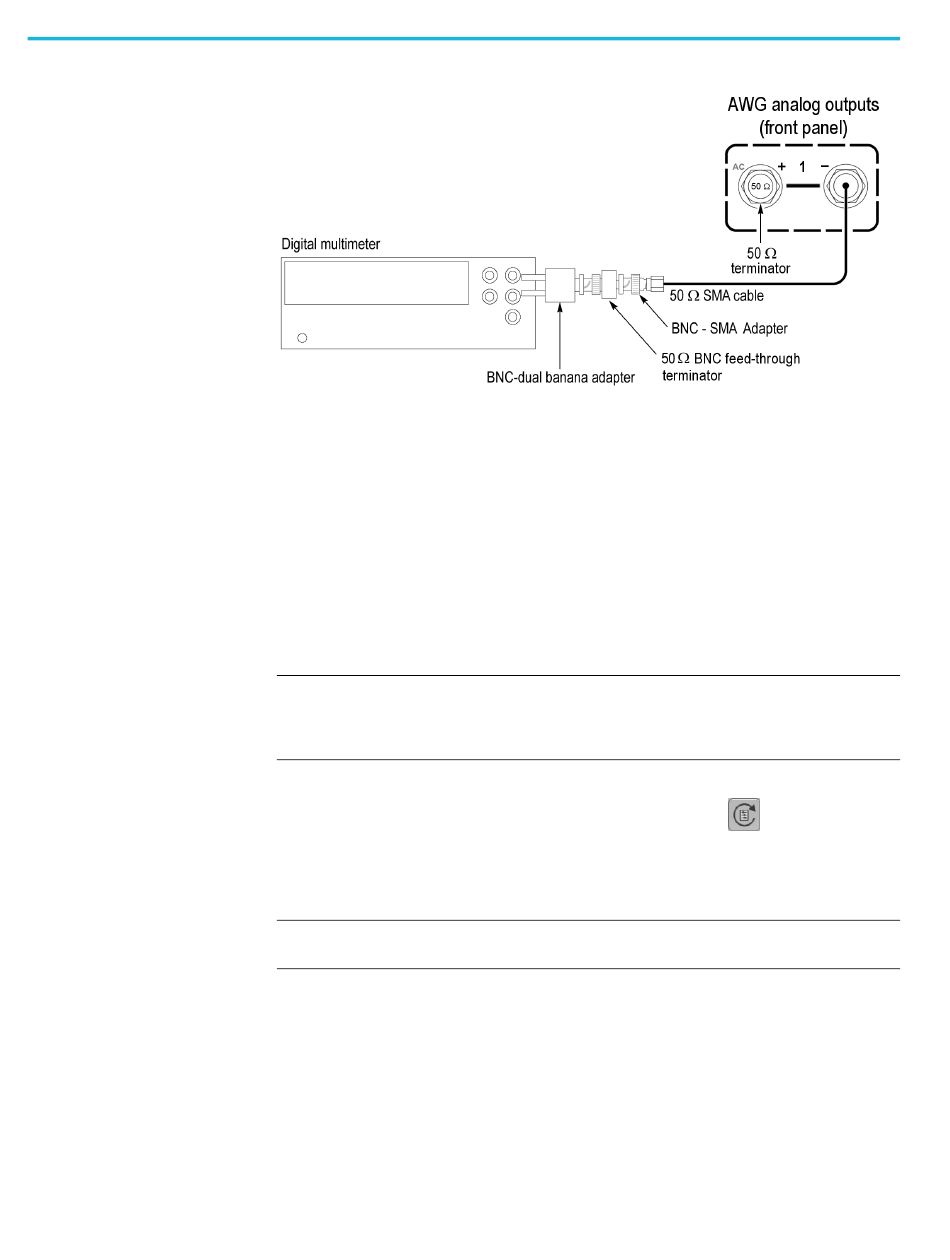

21. Repeat steps 9 through 17 for the CH1 (–) connector.
22. Repeat steps 4 through 21 until all channels are checked, modifying the
instructions for the channel under test.
23. Press the AWG front panel All Outputs Off button (or click All Outputs Off
on the Home screen) to disable the outputs (front panel light on).
24. Disconnect the test setup.
NOTE.
This is the start of testing the optional DC High Volt output path
(Option HV).
If option HV is not licensed, skip this procedure.
1. Click the Reset to Default Setup button in the toolbar
2. Load the test waveforms PV_DC_Plus.wfmx and PV_DC_Minus.wfmx
into the Waveform List.
NOTE.
Test waveforms are located at
C:\Program Files\Tektronix\AWG5200\Samples\PV.
3. From the Waveform List window, assign the waveform PV_DC_Plus.wfmx
to Channel 1.
4. Press the AWG front panel All Outputs Off button (or click All Outputs Off
on the Home screen) to disable the outputs (front panel light on).
.
AWG5200 Series Technical Reference
