Input and output options

The instrument has two USB ports on the front panel, and four USB ports on the

rear panel. (See Figure 1.) These ports can be used for an external mouse and/or

keyboard. Additionally, an external video display can be connected to the VGA

display port on the rear panel.

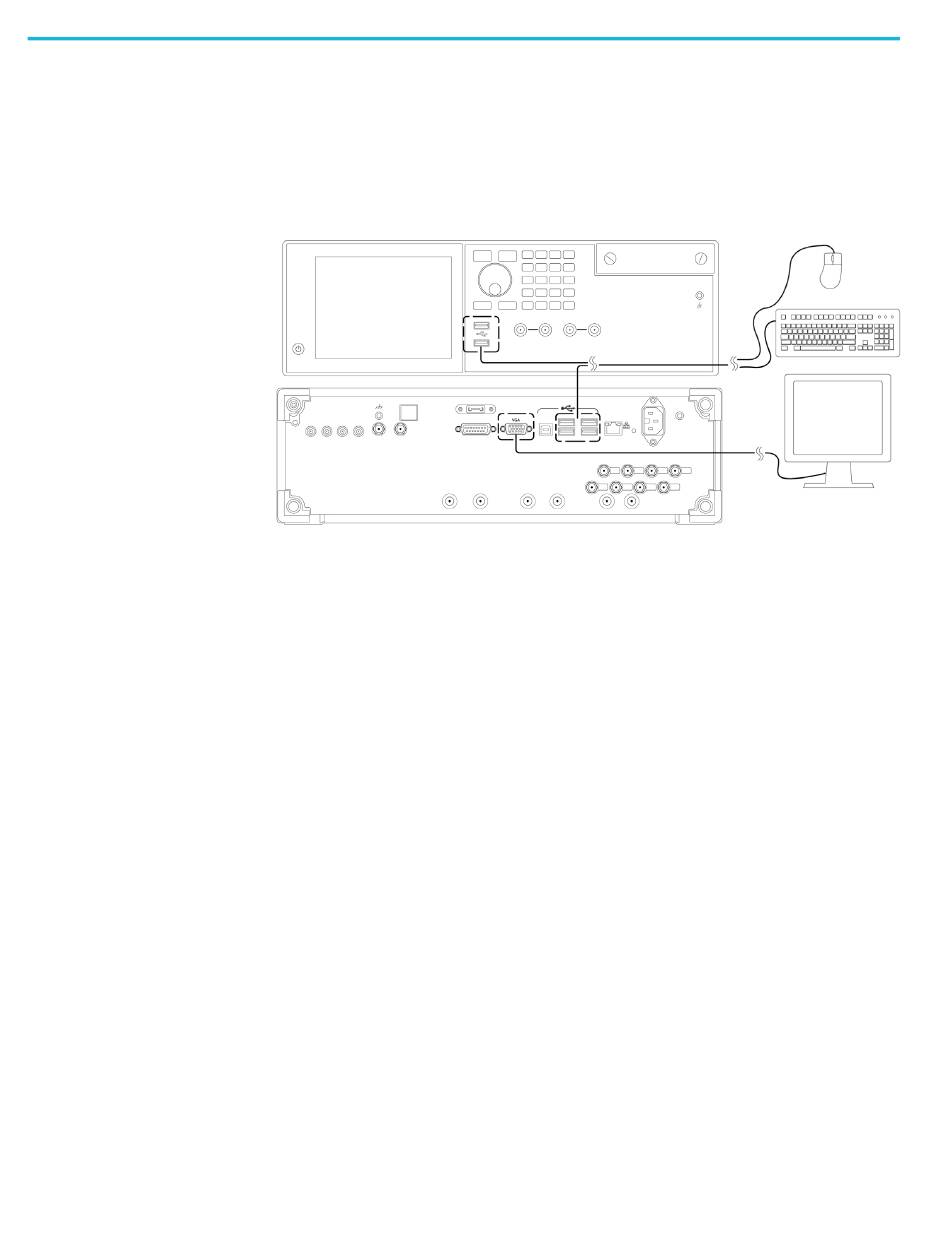

Figure 1: Peripheral connections
