Brief procedures
40
8. Click the Reset to Default Setup button in the toolbar
9. Set the Function Generator to output a 1 kHz square wave at 5 V
10. Turn on the output of the Function Generator.
11. Load the test waveform PV_Square.wfmx into the Waveform List.
Test waveforms are located at C:\Program
Files\Tektronix\AWG5200\Samples\PV.
12. From the Waveform List window, assign the waveform PV_Square.wfmx
to Channel 1.

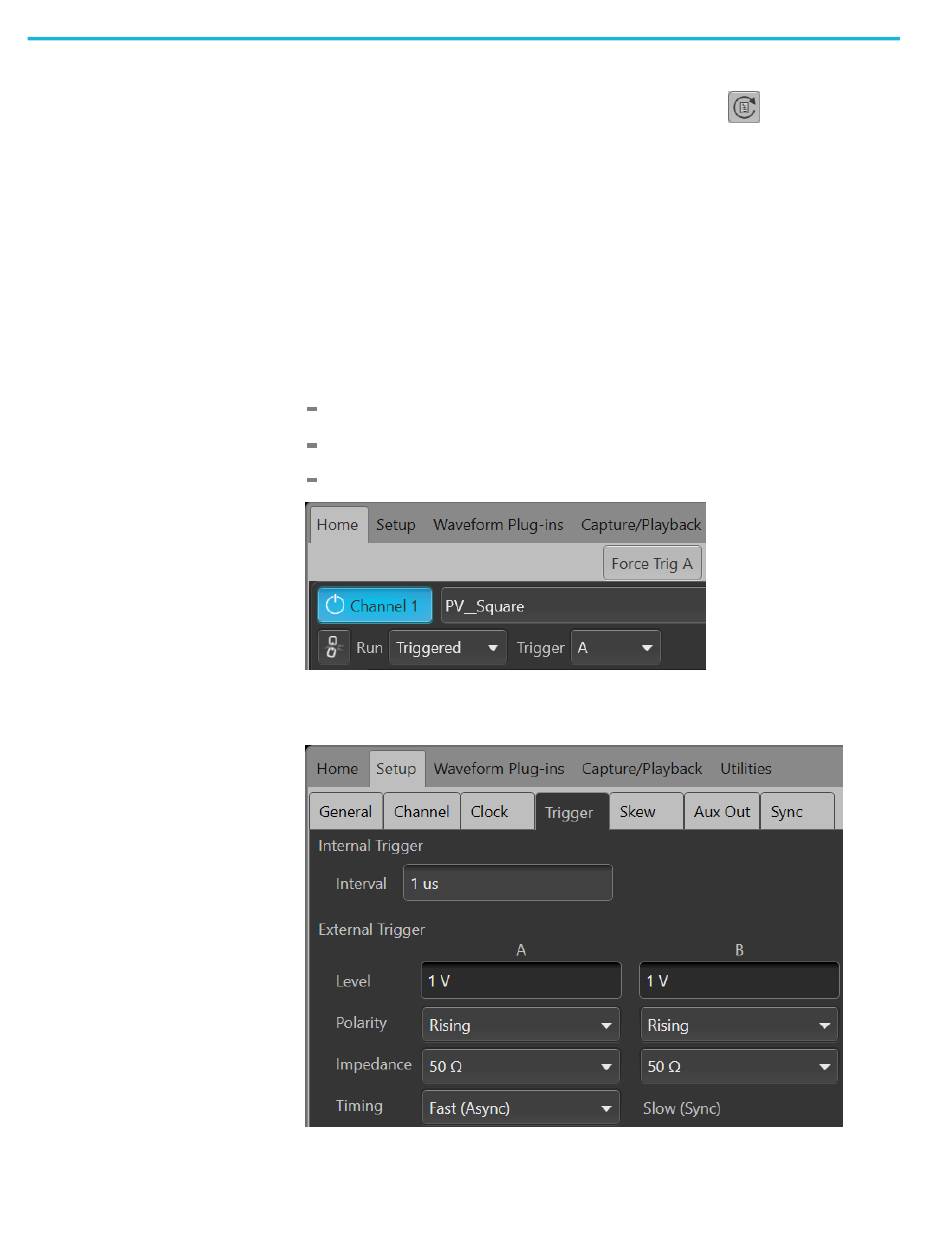

13. Click the Home tab and set the AWG's Channel 1 as follows:
Run Mode to Triggered
Trigger Input to A
Enable the Channel
14. In the Setup -> Trigger tab, set the External Trigger Level to 1.0 V (A and
B). Leave all other settings to their default settings.
.
