Appendix B: EPIM Specifications
B.2 EPIM-F1 AND EPIM-F2
The EPIM-F1 and EPIM-F2 shown in Figure B-2 support multimode
fiber optic cabling. Each EPIM has an internal Cabletron Systems FOT-F
fiber optic transceiver. The EPIM-F1 is equipped with SMA connectors
and the EPIM-F2 is equipped with ST connectors.
Table B-1 EPIM-F1 and EPIM-F2 Specifications
Parameter
Receive
Sensitivity
Peak Input Power
Transmitter Power
50/125 m Fiber
62.5/125 m
Fiber
100/140 m Fiber
Error Rate
Page B-2
149030

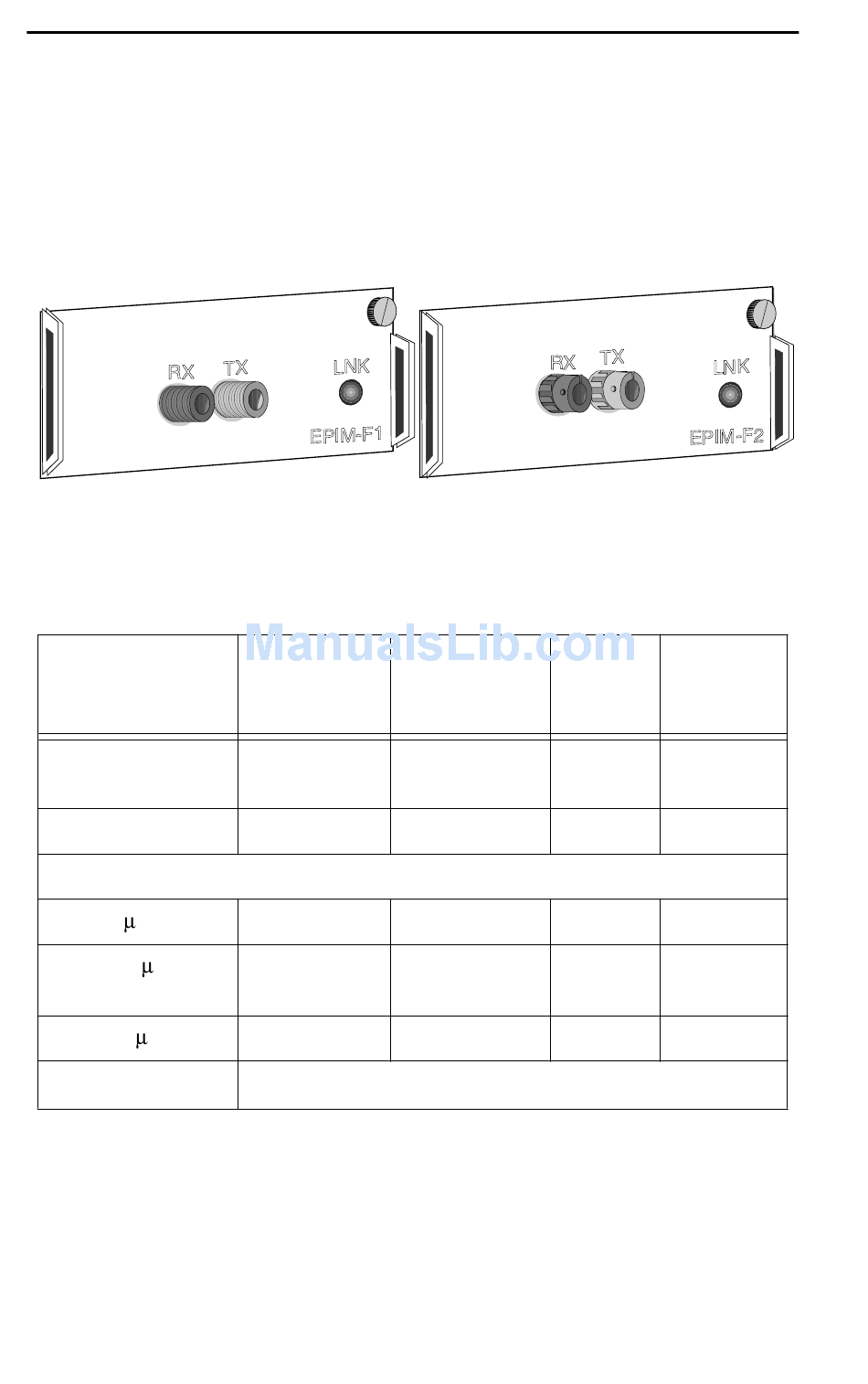

Figure B-2 The EPIM-F1 and EPIM-F2
Typical
Value
-30.5 dBm
-7.6 dBm
-13.0 dBm
-10.0 dBm
-7.0 dBm
Better than 10
Worst Case
-28.0 dBm
-8.2 dBm
-15.0 dBm
-12.0 dBm
-9.0 dBm
-10
MicroMMAC Installation Guide
Worst Typical
Case Budget
Budget
– –
– –
13.0 dB 17.5 dB
16.0 dB 20.5 dB
19.0 dB 23.5 dB
149031
