c. Check that the twisted pair connection meets dB loss and cable
specifications outlined in Appendix C, Network Planning and
Configuration.
If a link still has not been established, contact Cabletron Systems
Technical Support.
4.1.2 Connecting a 10BASE-T Segment to the
MicroMMAC-32E and MicroMMAC-34E
The MicroMMAC-32E has one RJ71 connector and the
MicroMMAC-34E has two RJ71 connectors. Each RJ71 connector
supports twelve 10BASE-T segments.
Refer to Appendix C, Network Planning and Configuration,
NOTE
for RJ71 pinouts.
To connect the MicroMMAC in an existing twisted pair wiring system,
perform the following steps:
1. Connect an RJ71 connector to an RJ71 port on the MicroMMAC as
shown in Figure 4-2.

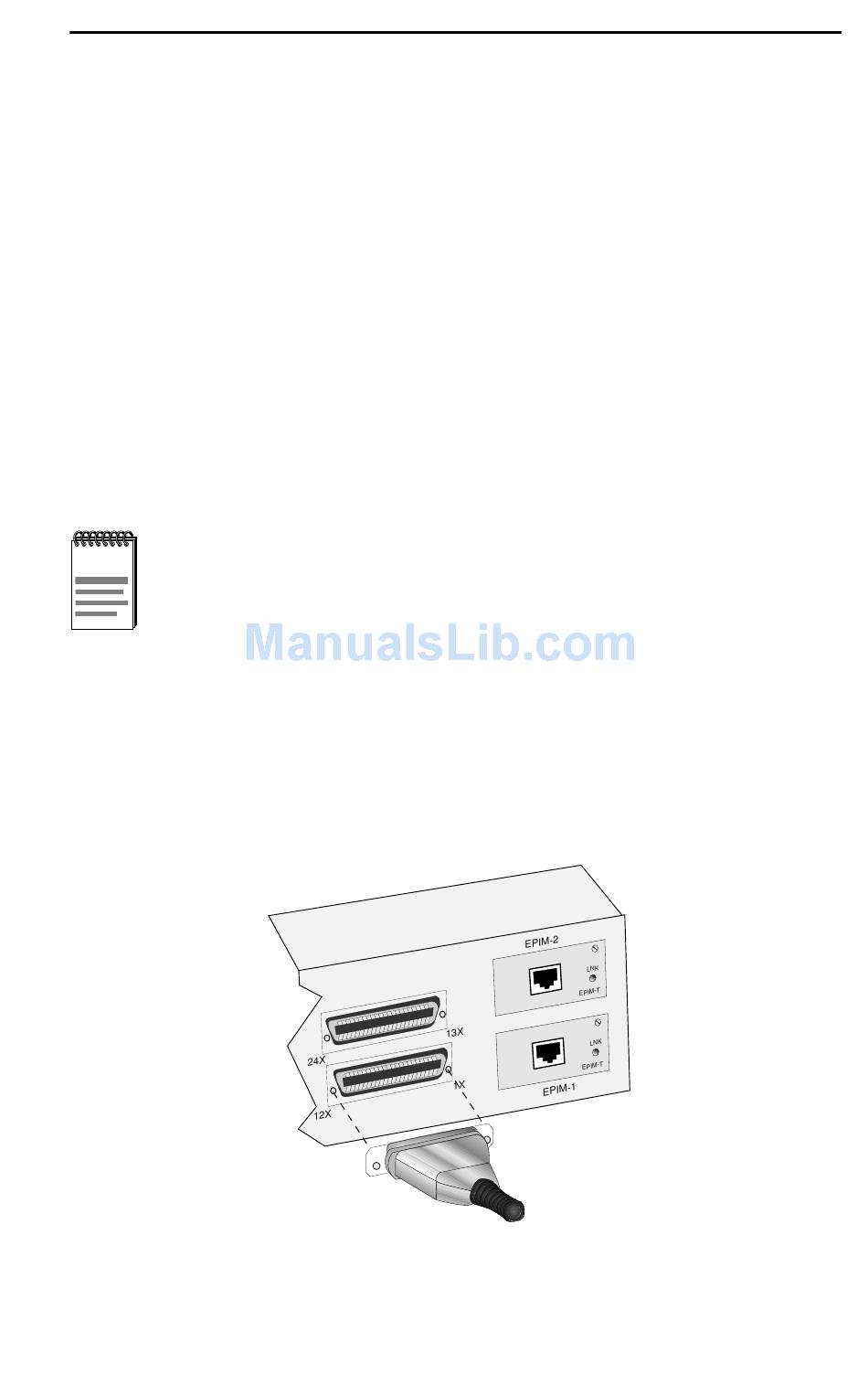

Figure 4-2 MicroMMAC-32E/34E Network Ports
MicroMMAC Installation Guide
Connecting the MicroMMAC to the Network
090813
Page 4-3
