3.8.1 Shelf or Tabletop Installation

Before installation, ensure that you locate the MicroMMAC within reach
of the network cabling and follow the requirements listed below:
• A single phase grounded power receptacle that meets the power supply
requirements listed in Appendix A, Section A.2, Power Supply
Requirements, must be located within seven feet of the
MicroMMAC.
• In a shelf installation, the shelf must be able to support 30 pounds of
static weight for each device in the stack.
• The temperature for the selected location must maintain a temperature
between 5˚C and 40˚C (41˚F and 104˚F), and fluctuate less than 10˚C
(18˚F) per hour.
• There must be sufficient clearance around the unit for proper
ventilation.
For a shelf or tabletop installation, locate the MicroMMAC within 7 feet
of its power source and with an unrestricted free surface area 21 inches
wide, 18 inches deep and 6 inches high, as shown in Figure 3-7.
18 INCHES
6 INCHES
MicroMMAC Installation Guide
MicroMMAC-24E 10BASE-T HUB LANVIEW R
WITH

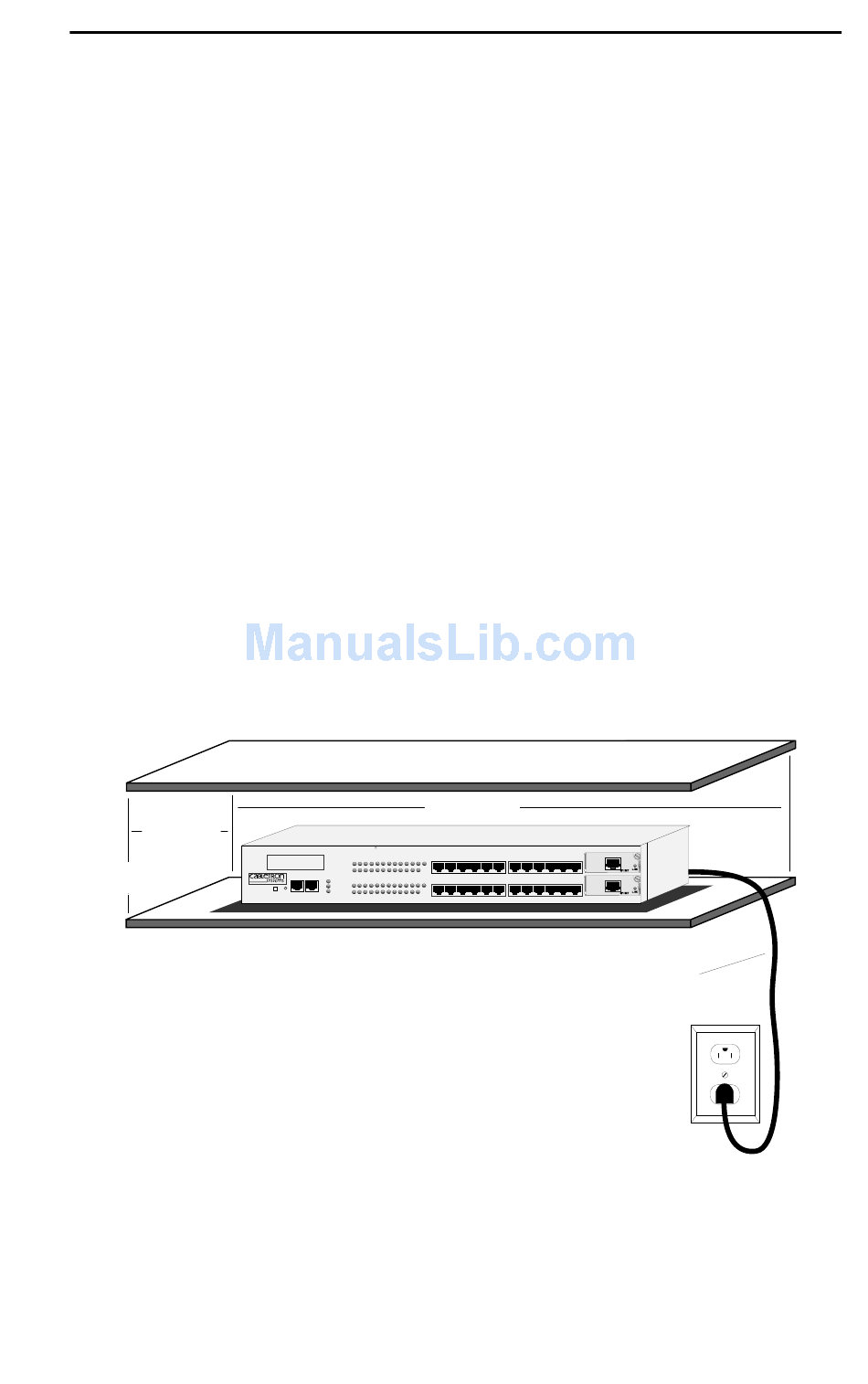

Figure 3-7 Shelf or Tabletop Installation
Installing the MicroMMAC
21 INCHES
7-FOOT POWER CORD
EPIM 2
EPIM 1
