To stack SEH non-intelligent hubs together, perform the following steps:
1. Attach the SEH HubSTACK Interconnect cable to the OUT port on
the rear panel of the SEH as shown in Figure 3-11.
2. Attach the other end of the SEH HubSTACK Interconnect cable to the
IN port on the rear panel of the SEH next in the stack.
SEH HubSTACK
INTERCONNECT CABLES (PN 9380110)
HubSTACK
SEH-24
HubSTACK
SEH-24
HubSTACK
SEH-24
HubSTACK
SEH-24
MicroMMAC-34E
MicroMMAC Installation Guide
10BASE-T
HUB LANVIEW®
WITH
OUT SEH INTERCONNECT IN
10BASE-T
HUB LANVIEW®
WITH
OUT SEH INTERCONNECT IN
10BASE-T
HUB LANVIEW®
WITH
OUT SEH INTERCONNECT IN
10BASE-T HUB LANVIEW®
WITH
OUT SEH INTERCONNECT IN
10BASE-T
HUB LANVIEW®
WITH
SN
LINE:
100-125V - 4.0A
200-250V - 2.0A
50/60Hz

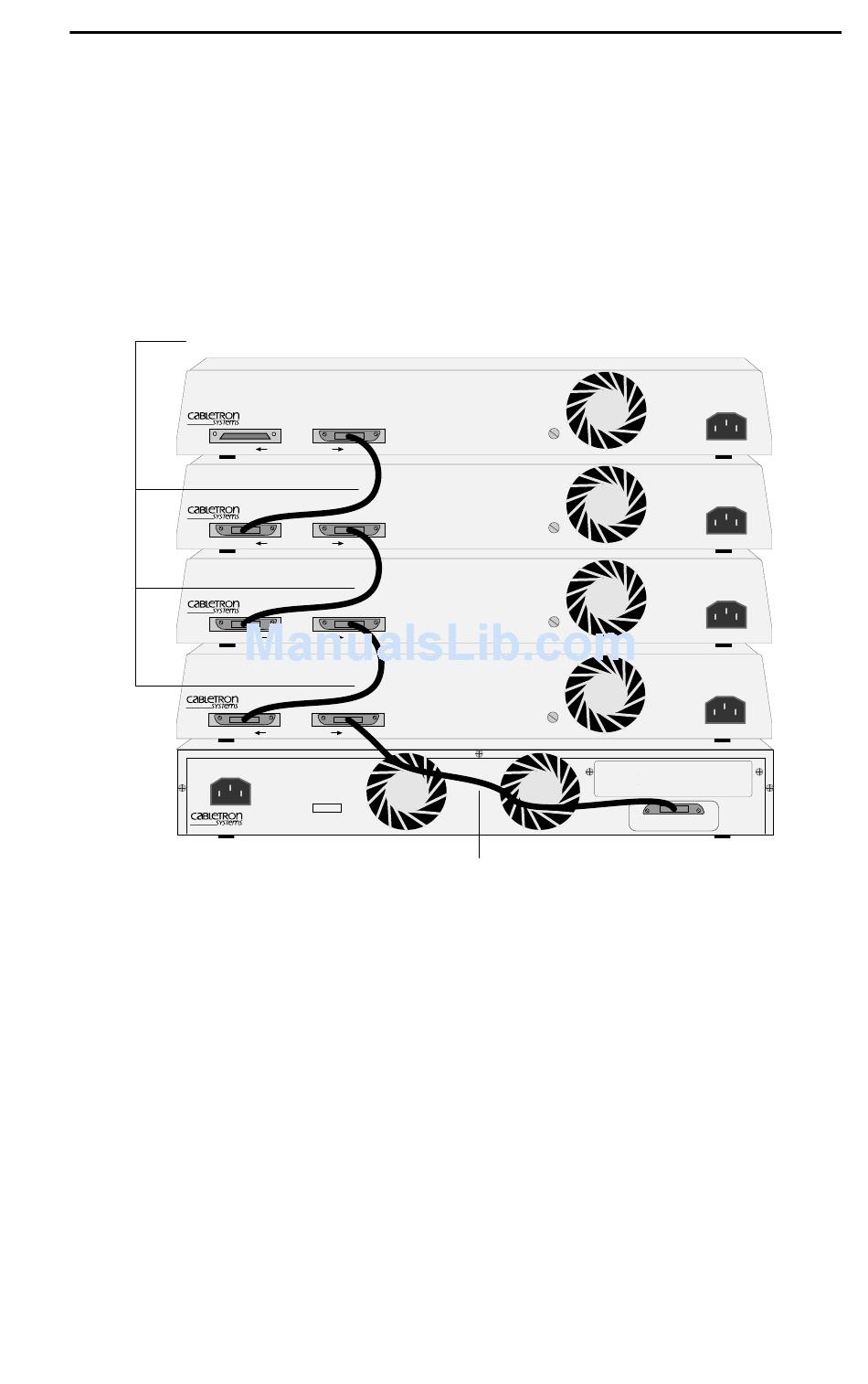

Figure 3-11 Stacking the MicroMMAC
Installing the MicroMMAC
MicroMMAC HubSTACK
INTERCONNECT CABLE (PN 9380111)
SEH INTERCONNECT
OUT
090805
