Chapter 3: Installation

3.5 ADDING/REPLACING EPIMS

This section explains how to add/replace an Ethernet Port Interface
Module (EPIM) to upgrade or change the capabilities of the
MicroMMAC.
EPIMs are sensitive to static discharge. Be sure to use an
!
antistatic wrist strap and observe all static precautions during
CAUT ION this procedure. Failure to do so could result in damage to the
EPIM.
To install an EPIM, perform the following steps:
When removing an EPIM, make sure to pull the module straight
!
out. Failure to do so could result in damage to the connector.
CAUT ION
1. Remove the coverplate or the EPIM (whichever applies).
2. Slide the EPIM into place, making sure the connector on the EPIM
attaches to the connector inside the MicroMMAC. See Figure 3-5.
3. Install the mounting screw.
Page 3-8
090828

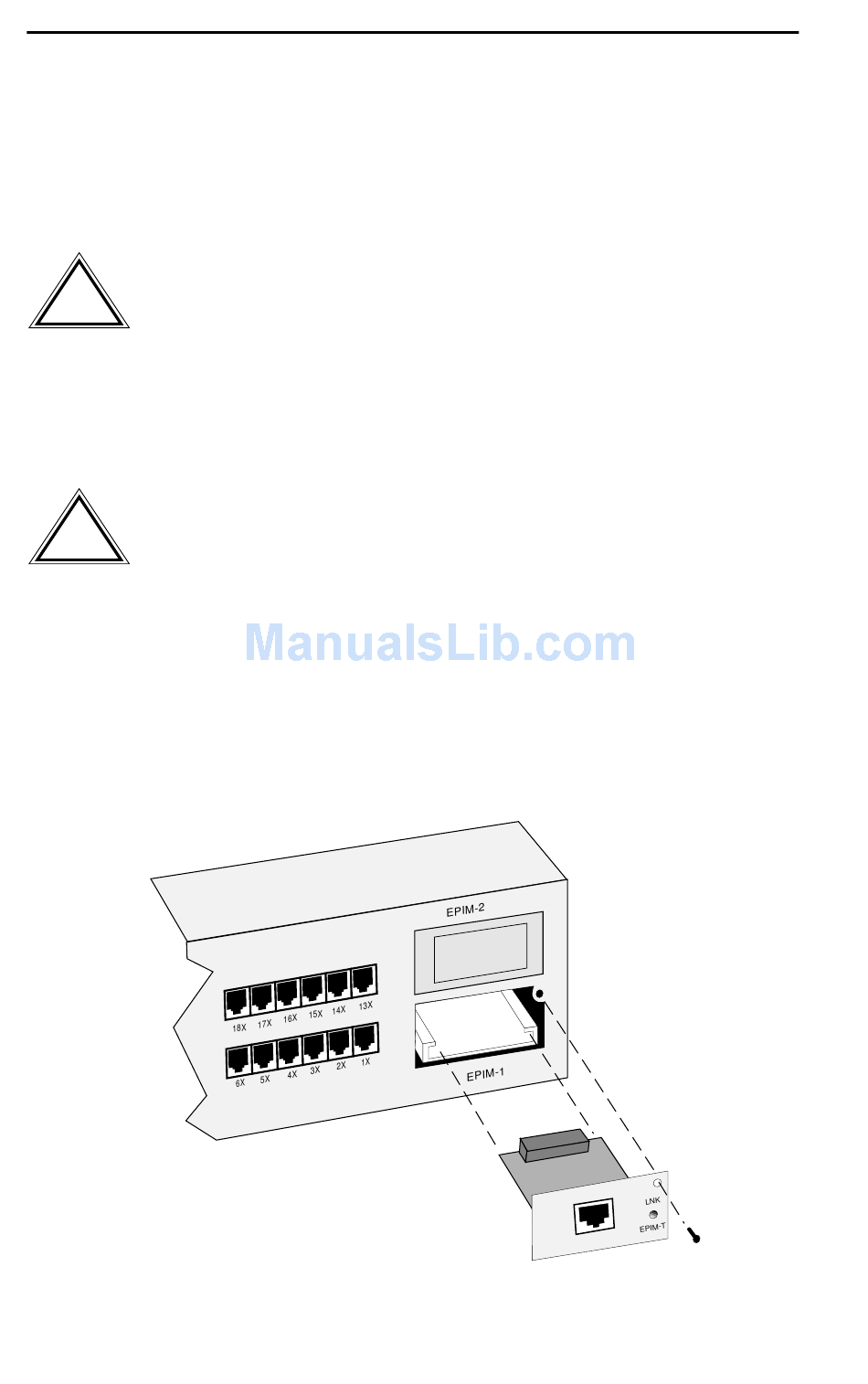

Figure 3-5 Installing an EPIM
MicroMMAC Installation Guide
