3.8.3 Rack Mounting the MicroMMAC

Refer to Figure 3-9 and perform the following steps to install the
MicroMMAC in a 19-inch rack.
1. Remove four cover screws (two from each side) located along the
front edges of each side of the MicroMMAC.
Do not remove the cover from the MicroMMAC. Do not remove
any other screws from the unit.
2. Using the four cover screws removed in step 1, attach the rack
mounting brackets to each end of the MicroMMAC.
MicroMMAC-24E

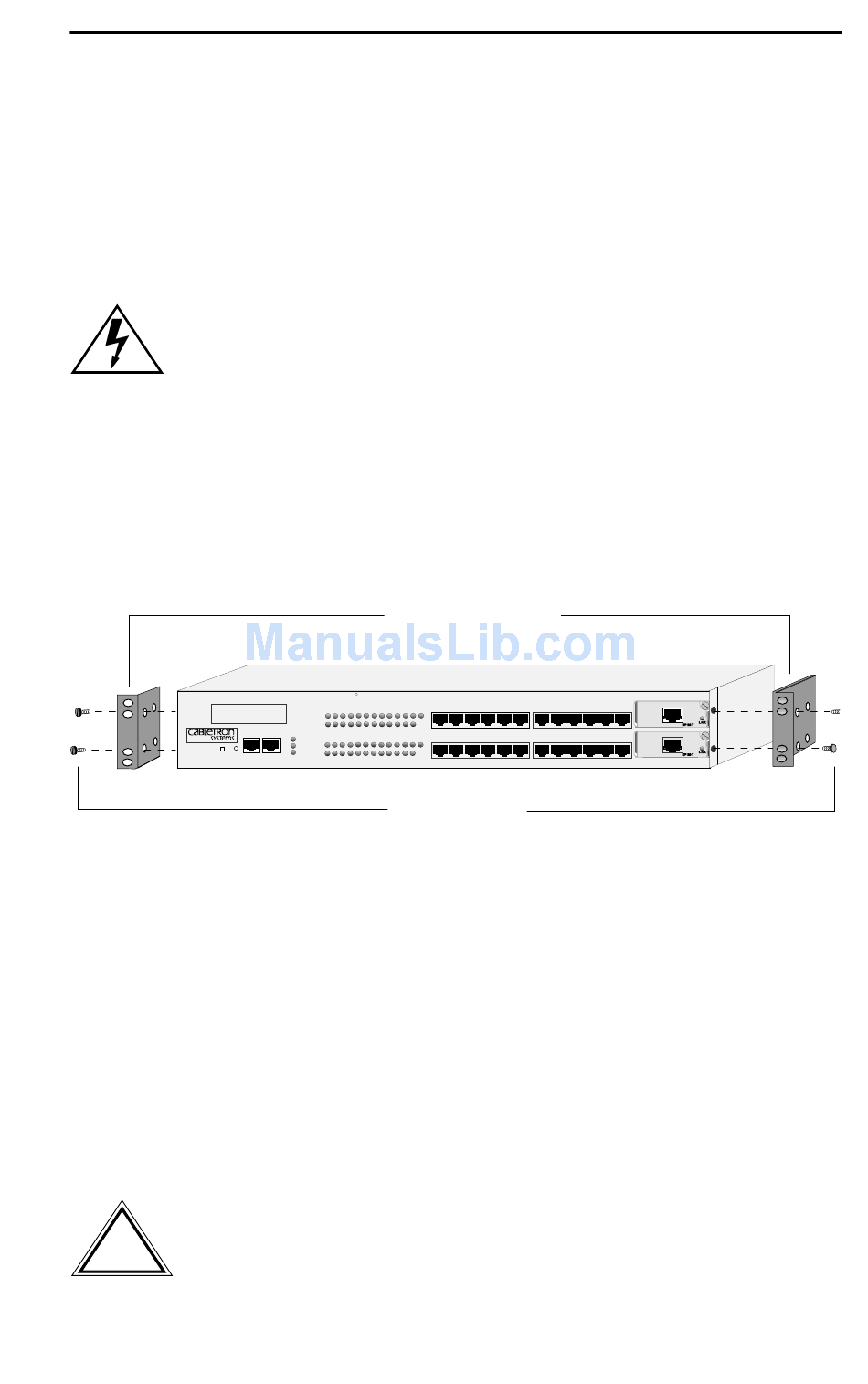

Figure 3-9 Installing the Rackmount Brackets
3. Ensure that the rack used to install the unit will support the unit and
that the rack will remain stable with the unit installed in it. Support the
MicroMMAC securely from underneath and align the brackets of the
MicroMMAC chassis with the screw holes in the equipment rack as
shown in Figure 3-10. Fasten the MicroMMAC to the 19-inch rack
securely.
The cooling fans at the rear panel of the MicroMMAC must
!
have adequate clearance (two inches on either side and in
CAUT ION the rear) for unrestricted air flow.
MicroMMAC Installation Guide
WALL/RACK MOUNTING
BRACKETS (2)
10BASE-T HUB LANVIEW
R
WITH
SCREWS (4)
Installing the MicroMMAC
EPIM 2
EPIM 1
090808
Page 3-13
