Chapter 3: Installation
If you temporarily disconnect one end of a HubSTACK Interconnect
cable and leave the other end attached to the hub, ensure that you
disconnect the cable from the OUT port as shown in Figure 3-12. This
ensures proper termination of the HubSTACK cable.
DISCONNECT MicroMMAC AND SEH
INTERCONNECT CABLES AT THE "OUT" PORT.
HubSTACK
10BASE-T
SEH-24
OUT
HubSTACK
10BASE-T
SEH-24
OUT
MicroMMAC-34E

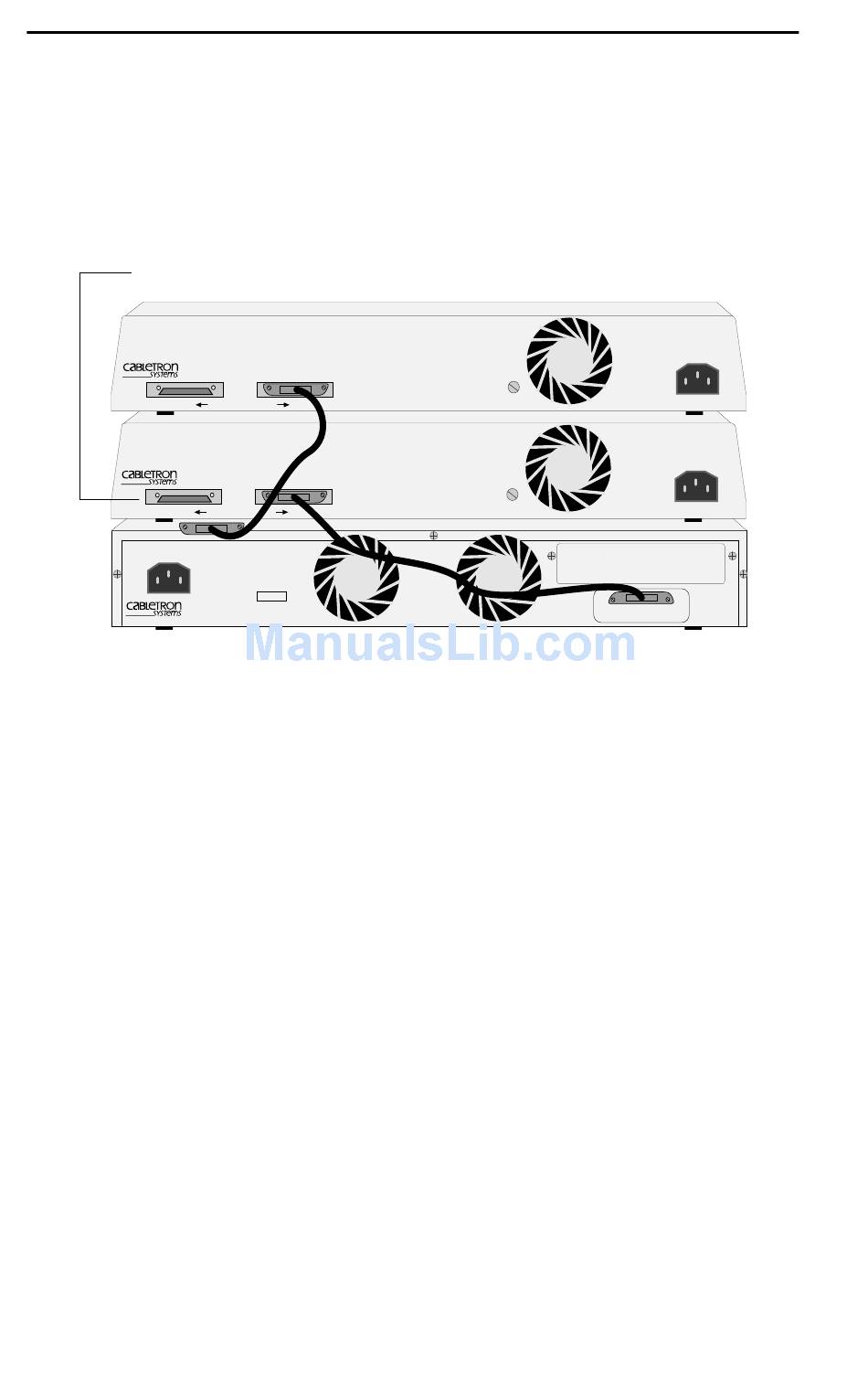

Figure 3-12 Disconnecting the HubSTACK Interconnect Cable
Page 3-16
HUB
LANVIEW®
WITH
SEH INTERCONNECT
IN
HUB
LANVIEW®
WITH
SEH INTERCONNECT
IN
10BASE-T
HUB
LANVIEW®
WITH
SN
LINE:
100-125V - 4.0A
200-250V - 2.0A
50/60Hz
SEH INTERCONNECT
MicroMMAC Installation Guide
OUT
090806
