Chapter 3: Installation

3.8.2 Attaching the Strain-Relief Bracket

To attach the strain-relief bracket to the bottom of the MicroMMAC,
perform the following steps:
1. Locate the strain-relief bracket and four 8-32 x 3/8-inch screws from
the MicroMMAC-ACCY-KIT package.
Do NOT attempt to attach the strain-relief bracket with screws
other than the 8-32 x 3/8-inch screws included with the
MicroMMAC accessory kit. Use of longer screws may damage
the unit or cause electrical shock.

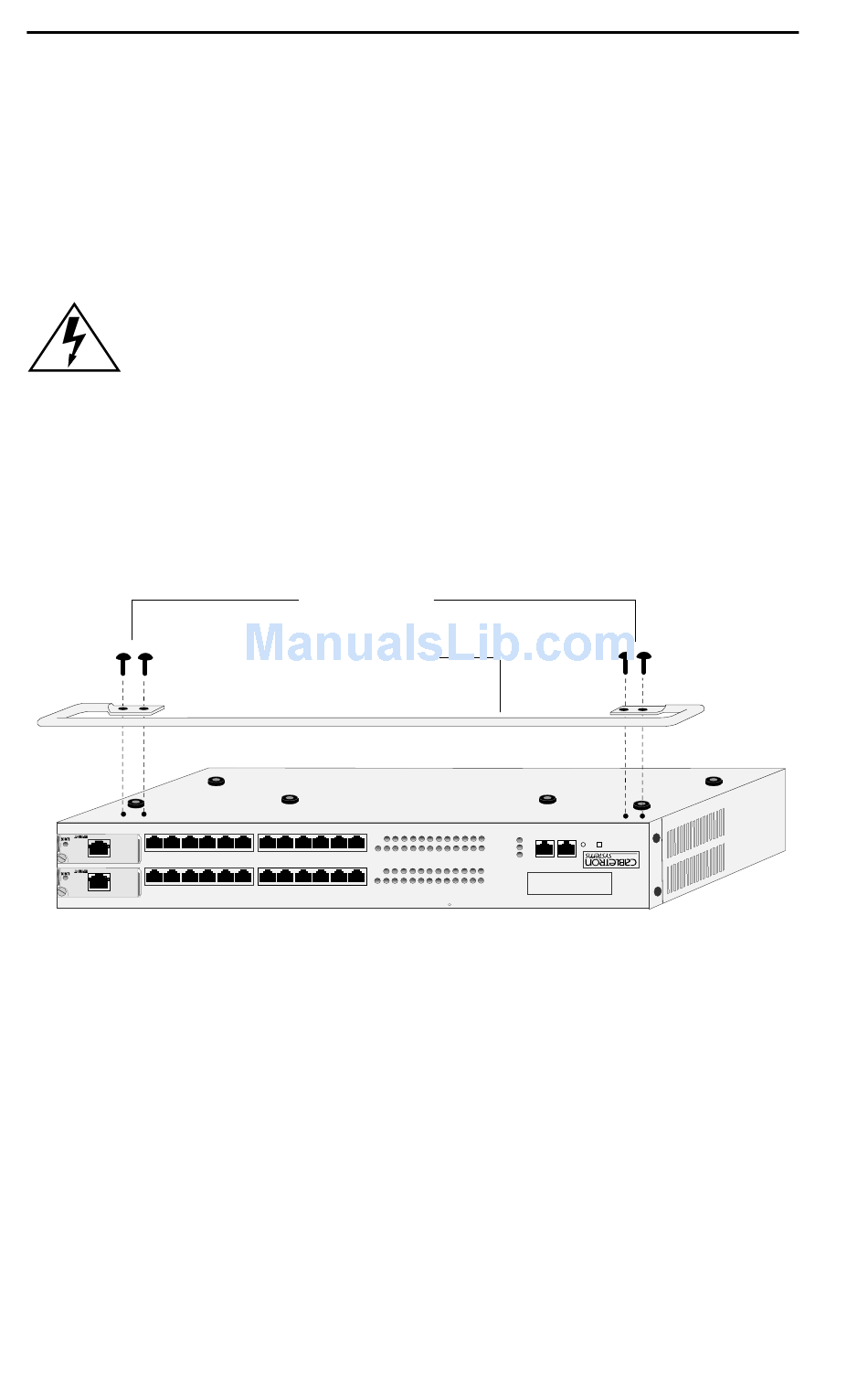

2. Attach the strain-relief bracket to the bottom of the MicroMMAC as
shown in Figure 3-8.
STRAIN-RELIEF BRACKET
1 EPIM
2 EPIM
Figure 3-8 Attaching the Strain-Relief Bracket
Page 3-12
SCREWS (4)
LANVIEW
R
MicroMMAC Installation Guide
MicroMMAC-24E
HUB 10BASE-T
WITH
090807
