◆Giga bit-Ethernet: LAN A, B

This product is equipped with 2 ports for giga bit.

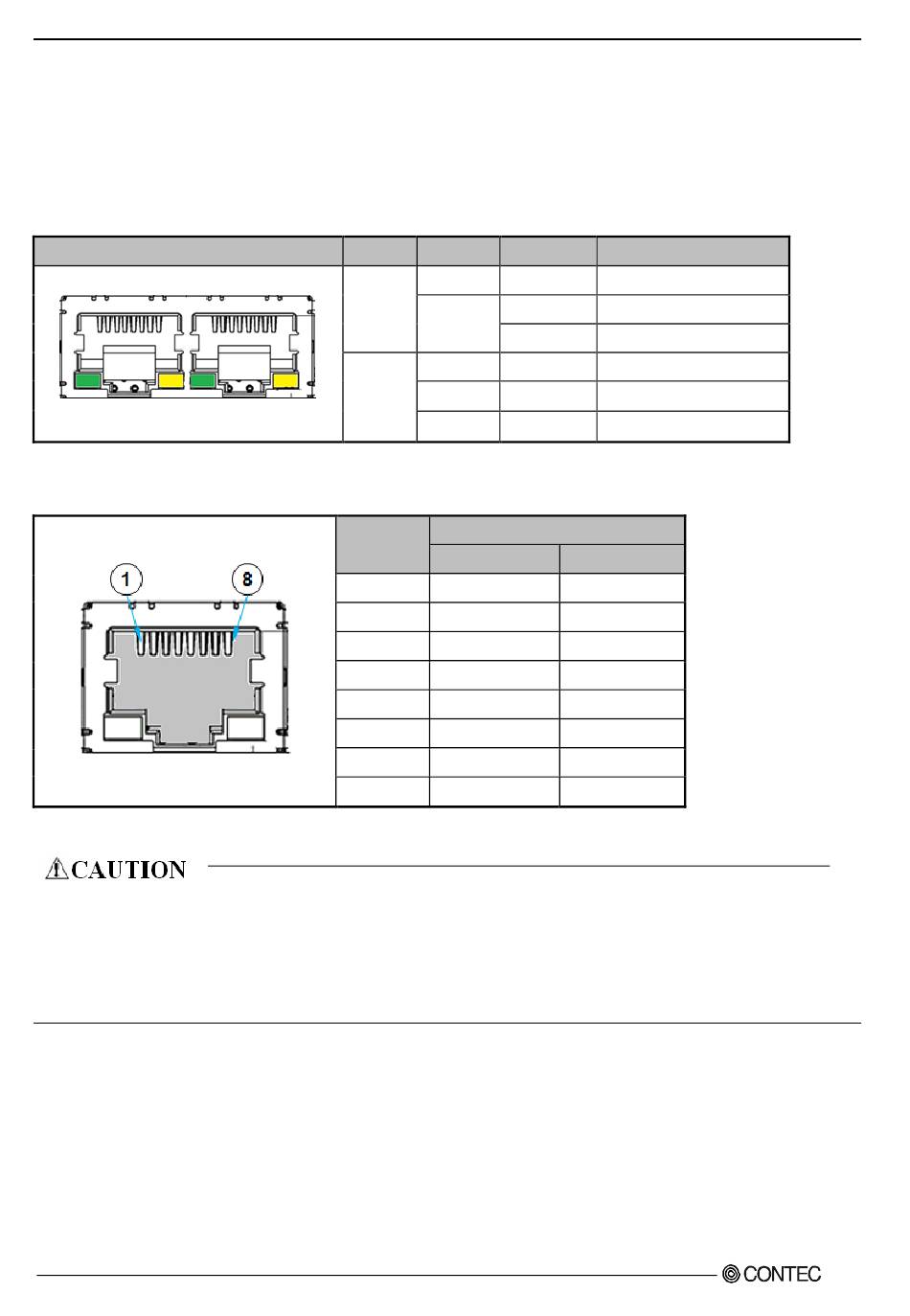

Table 5.6. Giga bit-Ethernet Connector
LED Name
Table 5.7. Giga bit-Ethernet Connector Pin assignment
- If you are using an operating system other than the operating system of the preinstalled model, LAN- 1
and LAN-2 may not be assigned to the silkscreen-printed "LAN-A" and "LAN-B."
- Attention should to be paid to the guaranteed operating range of temperature in using 1000BASE-T.
For more details on this, refer to chapter 3, Installation Requirements. Note that the Ethernet should be
configured as 100BASE-TX or 10BASE-T in using under the temperature 0 - 50°C.
72
LED Color State
N/A OFF
Link ON
Green
Blinking
N/A OFF
Speed Green ON
Yellow ON
Function
Pin No.
100BASE-TX
1 TX+
2 TX-
3 RX+
4 N.C.
5 N.C.
6 RX-
7 N.C.
8 N.C.
PT-S2000HX/HXC/LX/LXC Series User's Manual
Condition
LAN link is not established
LAN link is established
LAN activity occurring
10 Mb/s data rate
100 Mb/s data rate
1000 Mb/s data rate
1000BASE-T
TRD+(0)
TRD-(0)
TRD+(1)
TRD+(2)
TRD-(2)
TRD-(1)
TRD+(3)
TRD-(3)
