Hardware setup

・ Before you start, be sure that the power is turned off.
・ Remove only those screws that are explained. Do not move any other screw.
◆Panel mount & Attachment Fittings / PT-S2000HX/HXC
-
- CAUTION :
- The maximum thickness of the
mounting bracket is 7mm
-
-
Recommended to
secure the
screws in the
numerical order
as figure.
-

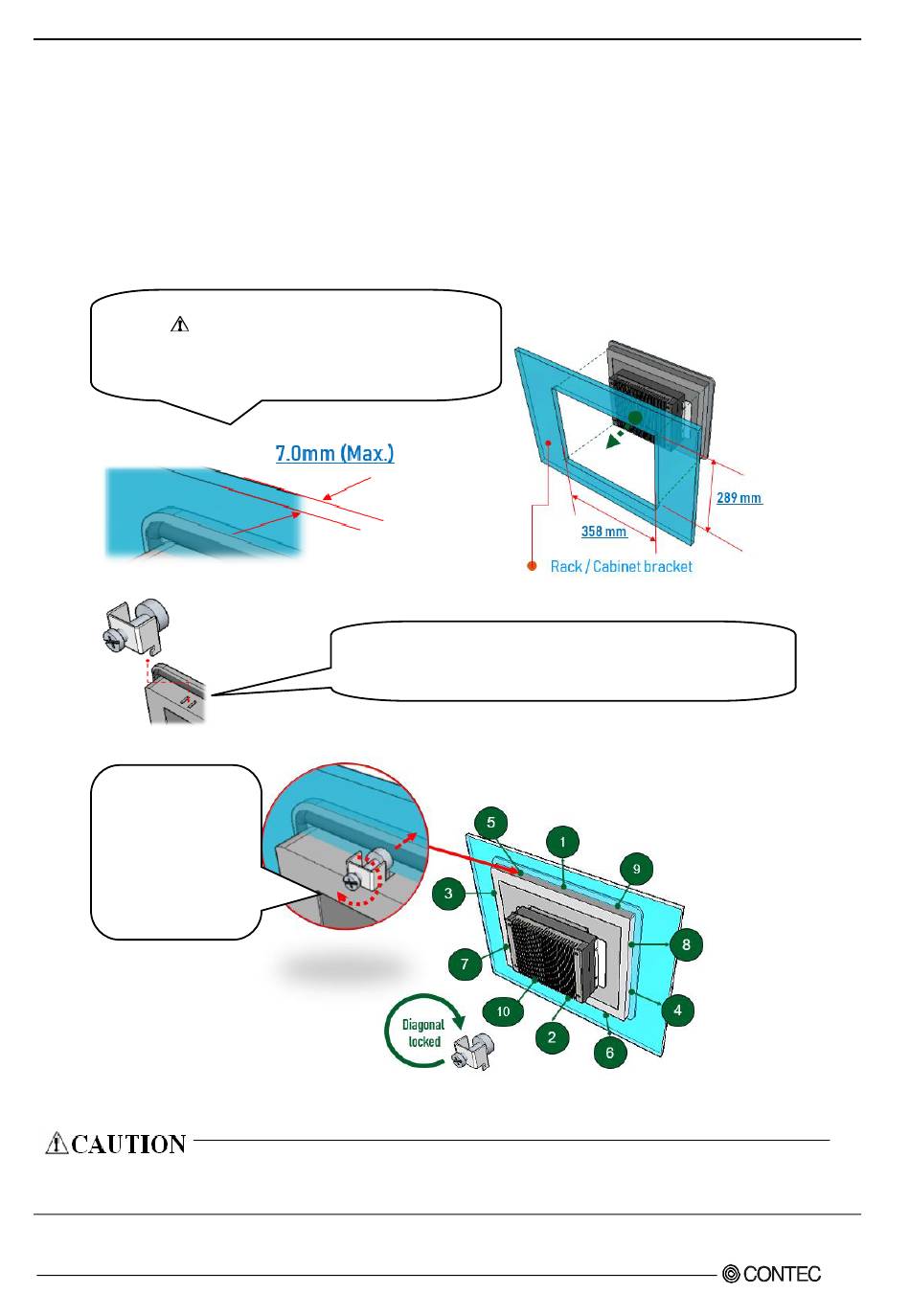

Figure 3.1. PT-S2000HX/HXC Attaching the Attachment Fittings
- Screw holes may be damaged if screws are tightened with a torque greater than the specified torque. The
specified tightening torque is 5 - 6kgf･cm.
20
Please place the mounting clip in the guide groove
according to the direction as figure.
