◆GPIO Port: DIO

The product is equipped with an interface to which you can connect a remote switch and a GPIO device.
GPIO is not isolated.

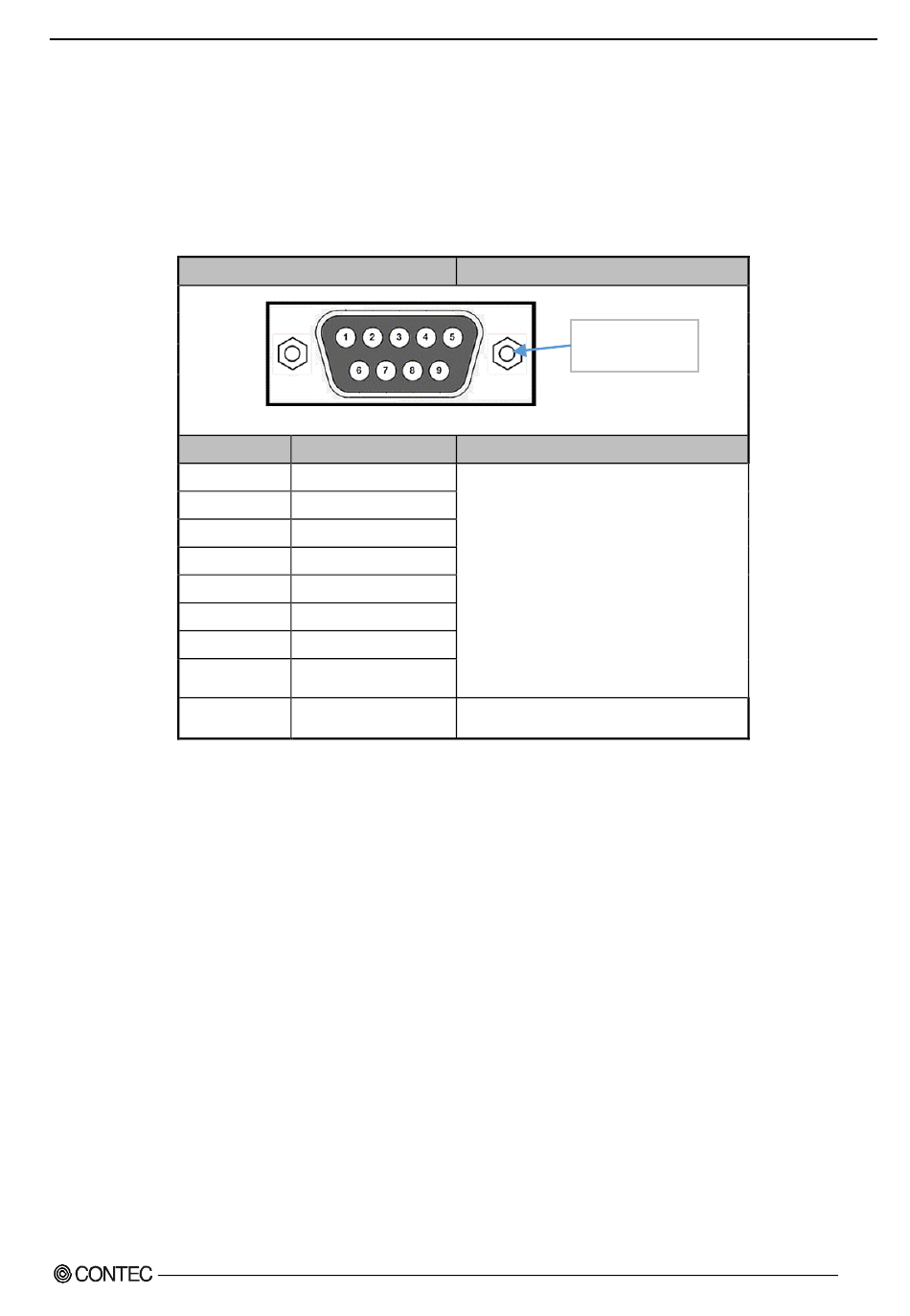

Table 5.10 Digital I/O connector
Connector type
Pin No.
PT-S2000HX/HXC/LX/LXC Series User's Manual
Signal Name
1 GPIO1
2 GPIO5
3 GPIO2
4 GPIO6
5 GPIO3
6 GPIO7
7 GPIO4
8 GPIO8
9 GND
9-pin D-SUB (MALE)
No.4-40UNC
Inch screw
threads
Meaning
General-purpose I/O
Input and output can be selected
respectively
GND
75
