◆USB3.0 Port: USB3.0
This product is equipped with 1 channel for USB 3.0 TYPE-A interface.

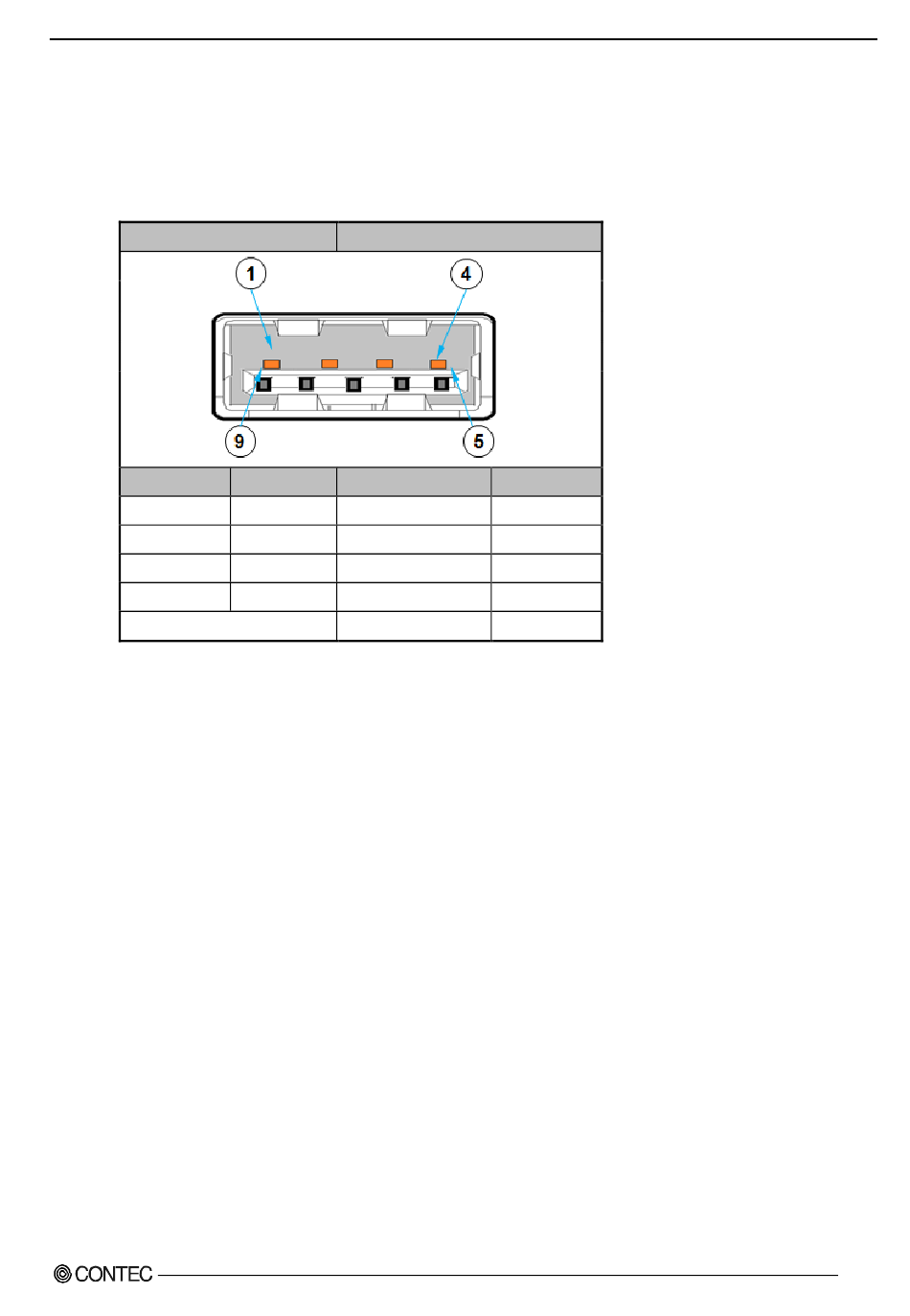

Table 5.5. USB3.0 Connector
Connector type
Pin No.
1
2
3
4
PT-S2000HX/HXC/LX/LXC Series User's Manual
USB 3.0 Type A
Signal name
Pin No.
USB_VCC
5
DATA-
6
DATA+
7
USB_GND
8
9
Signal name
SSRX-
SSRX+
USB_GND
SSTX-
SSTX+
71
