NanoCam Plus NCP-DVR720 User Manual

Hd dash cam dvr with g-sensor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

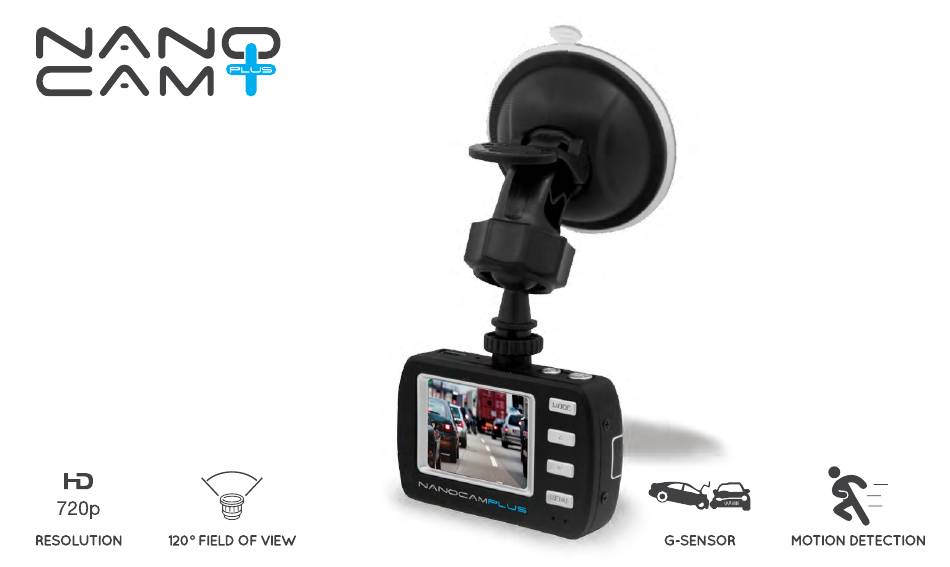

NCP-DVR720
USER MANUAL
HD DASH CAM DVR
G-SENSOR
WITH

Advertisement

Table of Contents
loading

Related Manuals for NanoCam Plus NCP-DVR720

Summary of Contents for NanoCam Plus NCP-DVR720

  • Page 1 NCP-DVR720 USER MANUAL HD DASH CAM DVR G-SENSOR WITH...

  • Page 2: Table Of Contents

    Caution ..................................5 Battery warning ................................5 Notes on Installation ..............................5 Introduction ................................6 1.1 Features ................................6 1.2 Package Contents .............................. 6 1.3 Product Overview ............................... 7 Getting Started ................................. 7 2.1 Inserting the Memory Card..........................7 2.2 Installing Car DVR ............................... 8 2.2.1 Adjust the device position ........................
  • Page 3 2.6.1 Recording Video ........................... 11 2.6.2 Locked Recording ..........................11 2.6.3 Recording Screen ..........................12 2.6.4 Video Mode ............................13 2.7 Video Menu ..............................13 2.7.1 Resolution ............................. 13 2.7.2 Loop Recording ............................ 13 2.7.3 Exposure............................... 14 2.7.4 WDR ..............................15 2.7.5 Motion Detection ...........................
  • Page 4 3.1.6 White Balance ............................21 3.1.7 Colour ..............................22 3.1.8 ISO ............................... 22 3.1.9 Exposure............................... 23 3.1.2.0 Quick review ............................23 3.1.2.1 Date Stamp............................24 3.2 Playback Screen ............................... 24 3.3 Playback Menu ..............................24 3.3.1 Deleting Photos & Videos ........................24 3.3.2 Locking and Unlocking Photos and Videos ...................

  • Page 5: Caution

    Caution • Ensure you are using your Car DVR within your countries’ road laws. Please make sure you are familiar with your local road legislation before use. • Avoid leaving your Car DVR in direct sunlight for extended periods of time in an unventilated space. •...

  • Page 6: Introduction

    1. Introduction Thank you for purchasing a NanoCam Plus Car DVR. We are certain that our product will give you trouble free operation while providing you with a safety feature that enhances your driving experience. Our products, like most after-market safety enhanced devices, are designed to assist and aid the driver, not to replace the manual function of the person operating the vehicle.

  • Page 7: Product Overview

    1.3 Product Overview Power Button Rec/OK Button Bracket Socket Reset Button Mini USB power socket Microphone Lens Micro SD card slot MODE Mode Button Up Button Down Button Menu Button menu 1.5” screen 2. Getting Started 2.1 Inserting Memory Card With the Car DVR turned off and the screen facing towards you insert the memory card into the slot on the underside of the camera with the text on the Micro SD card facing away from you.

  • Page 8: Installing Car Dvr

    To remove the memory card Ensure that the Car DVR is powered off, then push the memory card until a click is heard and then release the card to eject. 2.2 Installing the Car DVR 1. Remove the protective stickers from the Car DVR and the Suction Mount. 2.

  • Page 9: Powering The Car Dvr On / Off

    2.3.2 Manual Power On/Off and Reset 2.3.2.1 Manual Power On Hold the Power button on the top of the camera until the NanoCam Plus start up screen appears. 2.3.2.2 Power Off Make sure that recording has been stopped and then press the Power button on the top of the car DVR.

  • Page 10: Set The Date / Time

    3. Press the (Menu) Button again to enter the Settings Menu . 4. Use the Buttons to navigate the Settings Menu and highlight the Format setting and press (Rec/Ok) to select. 5. Select OK to confirm and press the (Rec/Ok) Button. Note: 1.

  • Page 11: Using The Dvr

    2.6 Using the Car DVR 2.6.1 Recording Video When the Car DVR is connected to your vehicle's 12v power supply, the Car DVR will automatically power up and begin recording when you start your vehicle. During the start up the buttons will be unresponsive and the camera will take a moment to begin recording.

  • Page 12: Recording Screen

    2.6.3 Recording Screen Number Number Item Item Video Mode Microphone / Mute Recording Loop Recording Recording Duration Motion Detection Resolution Exposure Date Recording Indicator Time Recording Lock Micro SD Card Power G Sensor...

  • Page 13: Video Mode

    2.6.4 Video Mode When the Car DVR is powered up the video screen will start by default. In this screen recording will automatically start and can be stopped by pressing the (Rec/Ok) Button. To access the Video Menu, ensure that the Car DVR is not recording then press the (Menu) button.

  • Page 14: Exposure

    3. Use the Buttons to navigate the Settings Menu and highlight the Loop Recording setting and press (Rec/Ok) to select. 4. Use the Buttons to highlight your required Clip Length, then press the (Rec/Ok) button to confirm your selection. Note: 1.

  • Page 15: Wdr

    2.7.4 WDR The WDR setting increases the dynamic range of the camera. To turn this setting on or off, please follow the instructions below. 1. Press the (Rec/Ok) Button to stop the Car DVR from recording. 2. Press the (Menu) Button to enter the Video Menu . 3.

  • Page 16: Recording Audio

    2.7.6 Recording Audio The Recording Audio setting allows you to mute the microphone during recording, or set it to record. To set your recording preferences, please follow the instructions below. 1. Press the (Rec/Ok) Button to stop the Car DVR from recording. 2.

  • Page 17: G Sensor

    2.7.8 G Sensor (Gravity Sensing) The G Sensor defines the required force needed to trigger emergency recording. Once Emergency recording is triggered the current recording will be saved and protected from being saved over by the normal loop recording. To set the required sensitivity please follow the instructions below.

  • Page 18: Park Mode

    2.8.0 Park Mode When activated, Park Mode will monitor the DVR's G Sensor after you have turned off your vehicle. If an impact is detected the DVR will power up and record a 60 second clip. To set Park Mode, follow the instructions below. 1.

  • Page 19: Photo Mode

    3. Photo Mode This screen is used to capture still images using your Car DVR. To access the Photo screen ensure that the camera is not recording and press the (Mode) button. Photo mode also has a menu which is used to edit the photo settings. This menu can be accessed by pressing the (Menu) in the Photo Screen.

  • Page 20: Sequence

    Note: 1. Menus cannot be accessed while the camera is recording. Please stop the recording before attempting to access the menu. 2. This setting can only be accessed through the Photo Menu, please make sure that you are in the Photo screen when you access the menu. 3.1.3 Sequence When Sequence is activated, when a photo is triggered a sequence of 3 photos is taken.

  • Page 21: Sharpness

    3.1.5 Sharpness Sharpness sets the boldness of the image. Images with a stronger sharpness will create bolder images with stronger outlines. To change the photo Sharpness, please follow the instructions below. 1. Enter the Photo screen. 2. Press the (Menu) Button to enter the Photo Menu . 3.

  • Page 22: Colour

    3.1.7 Colour The Colour setting is used to set the colour palette. To change the Colour setting follow the instructions below. 1. Enter the Photo screen. 2. Press the (Menu) Button to enter the Photo Menu . Buttons to navigate the Photo Menu and highlight the Colour setting and press 3.

  • Page 23: Exposure

    3.1.9 Exposure Exposure is used to manually control the light settings. To change the Exposure setting follow the instructions below 1. Enter the Photo screen. 2. Press the (Menu) Button to enter the Photo Menu . Buttons to navigate the Photo Menu and highlight the Exposure setting and press 3.

  • Page 24: Date Stamp

    3.1.2.1 Date Stamp Date stamp is used to stamp your photos with the time and date that they are taken. To select your preferred time and date format follow the instructions below. 1. Enter the Photo screen. 2. Press the (Menu) Button to enter the Photo Menu .

  • Page 25: Locking And Unlocking Photos And Videos

    2. In the Playback Screen use the buttons to select the photo or video that you want to delete (if you want to delete all unlocked photos and videos select any unlocked Photo or Video). 3. Press the (Menu) button to enter the Playback Menu and use the buttons to select the Delete setting and press the (Rec/Ok) button.

  • Page 26: Menu Tables

    Menu Tables Single 5S Timer +2.0 -1/3 FHD1080P 1920 x 1080 Capture Mode 2S Timer 10S Timer +5/3 -2/3 1080P 1440 x 1080 12M 4032x3024 3M 2048x1536 +4/3 -1.0 Resolution 720P 1280 x 720 10M 3648x2736 2MHD 1920x1080 Exposure +1.0 -4/3 WVGA 848 x 480 Resolution...
  • Page 27 Set Date and Time Delete Current Delete All Date / Time Delete 3 Minutes Lock Current Lock All Auto Power Off Protect 1 Minute Unlock Current Unlock All Key Beeps Volume English French Spanish Portuguese Dutch Chinese S Language Chinese T Russian Japanese Korean...

  • Page 28: Warranty

    This warranty is provided in addition to your rights under the Australian & New Zealand Consumer Law. NanoCam Plus warrants that this product is free from defects in material and workmanship for a period of 12 months from the date of purchase or for the period stated on the packaging.
