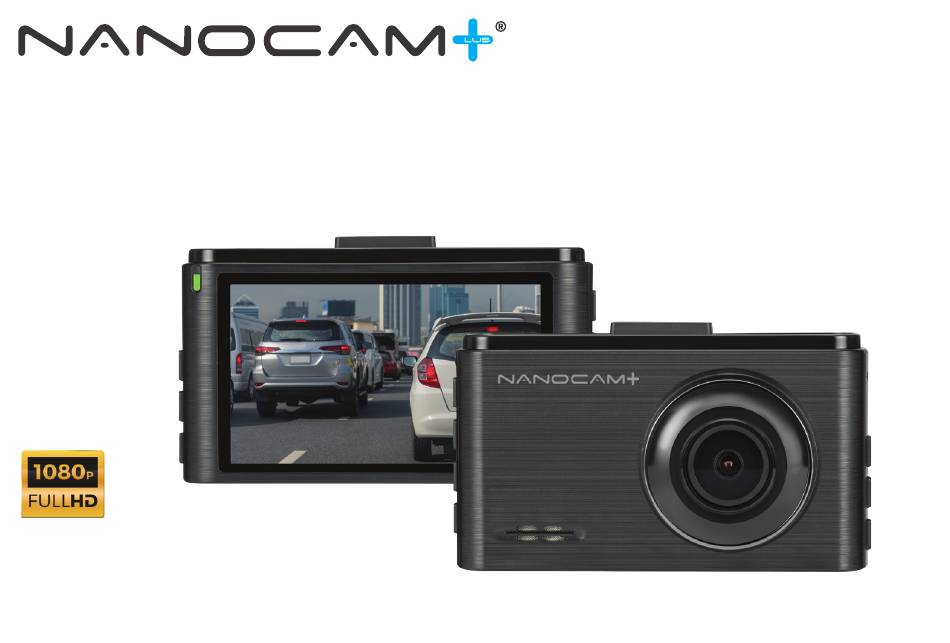

- Page 1 NCP-DVRGPSWIFI Full HD Dash Camera with 3.0” IPS Screen + GPS + WiFi USER MANUAL Your Safety. Our Priority...
-
Page 3: Table Of Contents
GETTING STARTED ........................11 To remove the memory card ....................11 INSTALLING THE CAR DVR .....................11 Adjust the device position ....................12 Installing your NCP-DVRGPSWIFI ..................12 Adjust the camera position ....................12 Connecting to Power ......................12 POWERING THE CAR DVR ON / OFF ..................13 Auto Power On/Off ......................13... - Page 4 Manual Power On .......................13 Power Off ..........................14 RESET THE DEVICE ........................14 10.0 PLAYING BACK VIDEO ON A PC ....................14 11.0 INITIAL SETTINGS .........................14 11.1 Formatting the Inserted Micro SD Card ................15 12.0 SET DATE / TIME ........................16 13.0 USING THE CAR DVR ......................17 14.0 RECORDING VIDEO .........................17 15.0...
- Page 5 19.0 PHOTO MODE .........................23 19.1 Resolution ..........................23 19.2 Photo Quality ........................24 19.3 Exposure ..........................25 19.4 ISO Sensitivity ........................25 19.5 Contrast ..........................26 19.6 Sharpness ..........................27 19.7 Saturation ...........................28 19.8 Levels ..........................29 20.0 PLAYBACK MENU ........................30 20.1 Volume ..........................30 20.2 Deleting Photos and Videos ....................30 20.3 Locking and Unlocking Photos and Videos ................31 20.4 Video Type ...........................32 21.0...
- Page 6 21.5 Stamp ..........................35 21.6 Language ..........................35 21.7 Flicker ..........................36 21.8 Screen Time Out .........................36 21.9 Protect Level (Gravity Sensing) ..................37 22.0 PARKING MONITOR .......................38 22.1 Motion Detection ........................38 22.2 Setup Reset ........................39 22.3 Format SD Card ........................40 22.4 FW Version..........................40 23.0 GPS ............................41 24.0...
-
Page 7: Caution
CAUTION • Ensure you are using your Car DVR within your countries’ road laws. Please make sure you are familiar with your local road legislation before use. • Avoid leaving your Car DVR in direct sunlight for extended periods of time in an unventilated space. -
Page 8: Introduction
4. Only use the included charging cable to power the Car DVR. INTRODUCTION Thank you for purchasing a NanoCam Plus Car DVR. We are certain that our product will give you trouble free operation while providing you with a safety feature that enhances your driving experience. -
Page 9: Features
FEATURES • Recording Full High Definition 1080p footage at 30 frames per second. • 3” colour IPS screen • 135° wide angle lens • Emergency recording saves your footage when an impact is detected • Supports Micro SD cards, class 10 and above up to 128GB PACKAGE CONTENTS Dash Camera GPS Module... -
Page 10: Product Overview
PRODUCT OVERVIEW 1. Micro SD card slot* 7. Rec/OK Button 13. Mini USB power socket 2. Up Button ( ) 8. Mode Button 14. Slot for fixing Suction Mount 3. Menu Button ( ) 9. Lock Recording Button ( ) 15. -
Page 11: Getting Started
GETTING STARTED Inserting Memory Card With the Car DVR turned off and the screen facing towards you insert the memory card into the slot on the left side of the camera with the text on the Micro SD card facing away from you. Push the memory card in until a click is heard. -
Page 12: Adjust The Device Position
4. Secure the mount by flipping the switch up while still holding the base against the windscreen. ADJUST THE DEVICE POSITION INSTALLING YOUR NCP-DVRGPSWIFI 1. Push the bracket into bracket slot on top of device, and slide the mount from right to left until a click sound is heard. -
Page 13: Powering The Car Dvr On / Off
Car DVR will automatically power up and start recording when the vehicle accessories are activated. MANUAL POWER ON/OFF AND RESET MANUAL POWER ON Hold the Power button on the top of the camera until the NanoCam Plus start up screen appears. -
Page 14: Power Off
POWER OFF Make sure that recording has been stopped and then press the Power button on the bottom right hand side of the car DVR. After powering down the device please wait for 10 seconds before turning the Car DVR back on. RESET THE DEVICE If the Car DVR does not function normally, try restarting the car DVR. -
Page 15: Formatting The Inserted Micro Sd Card
2. Formatting your Micro SD Card will delete all files from the card. Once these files have been deleted you will not be able to recover them. * Please ensure that the NCP-DVRGPSWIFI is compatible with Micro SD cards up to 128GB capacity, Class 10 or above. Micro SD Card is not included. -
Page 16: Set Date / Time
12.0 SET DATE / TIME Setting the Time and Date allows you to stamp your footage with the time as a reference. 1. Press the OK Rec/Ok Button to stop the Car DVR from recording. 2. Press the Menu Button to enter the Video Menu. 3. -
Page 17: Using The Car Dvr
13.0 USING THE CAR DVR 14.0 RECORDING VIDEO When the Car DVR is connected to your vehicle’s 12v power supply, using the supplied 12v adapter the Car DVR will automatically power up and begin recording when you start your vehicle. During the start up the buttons will be unresponsive and the camera will take a moment to begin recording. -
Page 18: Locked Recording
15.0 LOCKED RECORDING Locked Recording saves the current video file and protects it from being overwritten. To manually start a Locked Recording follow the instructions below. 1. During recording push the button. NOTE: 1. If the G Sensor (Gravity Sensing) function is enabled and a collision is detected, the device will automatically trigger the emergency recording and protect the current video file. -
Page 19: Screen Interface
16.0 SCREEN INTERFACE 1. Video Mode 2. Loop Recording 3. Exposure 4. Microphone / Mute Recording 5. Recording Indicator 6. GPS 7. WIFI 8. Recording Time 9. Resolution 10. Park Mode 11. G Sensor 12. SD Card 13. Charging 14. Date 15. -
Page 20: Video Resolution
17.1 VIDEO RESOLUTION Resolution sets the video quality. Higher resolution video will capture more detail and will also produce larger files. To change the recording resolution, please follow the instructions below. 1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2. -
Page 21: Delayed Power Off
3. Use the Up and Down Buttons to navigate the Settings Menu and highlight the Loop Recording setting and press OK (Rec/Ok) to select. 4. Use the Up and Down Buttons to highlight your required Clip Length, then press the OK (Rec/Ok) button to confirm your selection. -
Page 22: Audio Record
NOTE: • Menus cannot be accessed while the camera is recording. Please stop the recording before attempting to access the menu. 17.4 AUDIO RECORD The Recording Audio setting allows you to mute the microphone during recording, or set it to record. -
Page 23: Photo Mode
1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2. Press the Button to enter the Movie Mode Menu. 3. Use the and Buttons to navigate the Movie mode Menu and highlight the LDWS setting and press OK (Rec/Ok) to select. -
Page 24: Photo Quality
NOTE: 1. Menus cannot be accessed while the camera is recording. Please stop the recording before attempting to access the menu. 2. This setting can only be accessed through the Photo Menu, please make sure that you are in the Photo screen when you access the menu. 19.2 PHOTO QUALITY Quality sets the image detail. -
Page 25: Exposure
19.3 EXPOSURE Exposure is used to manually control the light settings. To change the Exposure setting follow the instructions below 1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2. Press the Button twice to enter the Photo Menu. 3. -
Page 26: Contrast
2. Press the Button twice to enter the Photo Menu. 3. Use the Up and Down Buttons to navigate the Photo Menu and highlight the ISO setting and press OK (Rec/Ok) to select. 4. Use the Up and Down Buttons to highlight your required ISO setting, then press the OK (Rec/Ok) button to confirm your selection. -
Page 27: Sharpness
NOTE: 1. Menus cannot be accessed while the camera is recording. Please stop the recording before attempting to access the menu. 2. This setting can only be accessed through the Photo Menu, please make sure that you are in the Photo screen when you access the menu. 19.6 SHARPNESS Sharpness sets the boldness of the image. -
Page 28: Saturation
19.7 SATURATION The Saturation setting is used to manually adjust the settings used to Saturate the intensity level of the colors reproduced on the video . 1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2. Press the Button twice to enter the Photo Menu. -
Page 29: Levels
19.8 LEVELS The Level setting is used to manually adjust the settings used to counteract different light conditions. This setting is set to Auto by default. To change the Level setting follow the instructions below. 1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2. -
Page 30: Playback Menu
20.0 PLAYBACK MENU 20.1 VOLUME To increase the volume of the speaker of Dash Camera. 1. Navigate to the playback screen using the instructions in the section labeled Playback Screen. 2. In the Volume Mode use the Up and Down Buttons to select the level of volume you want to adjust. -
Page 31: Locking And Unlocking Photos And Videos
6. Select OK and press the OK (Rec/Ok) button to confirm the deletion. NOTE: 1. Menus cannot be accessed while the camera is recording. Please stop the recording before attempting to access the menu. 2. You will only be able to delete videos that have not been protected by a G Sensor. 3. -
Page 32: Video Type
4. Use the Up and Down Buttons to select either Unlock All, which will unlock all photos and videos, Unlock Current to unlock the currently selected photo or video, Lock All to lock all videos and photos to protect them from deletion, or Lock Current to lock the currently selected to protect the currently selected photo or video from deletion. -
Page 33: Settings Menu
NOTE: • Menus cannot be accessed while the camera is recording. Please stop the recording before attempting to access the menu. 21.0 SETTINGS MENU The Settings menu is used to adjust the cameras Settings. To Access the Settings menu, ensure that the camera is not recording and press the Menu Button to enter the Video Menu, then press the Menu Button again to enter the Photo... -
Page 34: Time Setting
1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2. Press the Button 4 times to enter the General Setting Menu. 3. Use the Up and Down Buttons to navigate the Settings Menu and highlight the Auto Power Off and press OK (Rec/Ok) to select Never /1min/5minutes 21.3 TIME SETTING Time Setting will help you to set the time of your DVR matching to the local time... -
Page 35: Stamp
21.5 STAMP GPS Stamp feature will stamp the GPS co-ordinates onto your recorded video as it records by default. 1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2. Press the Button 4 times to enter the General Setting Menu. 3. -
Page 36: Flicker
21.7 FLICKER Flicker option will help you to adjust the camera's frequency rate when recording video to minimise flickering effect from LED lights. 1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2. Press the Button 4 times to enter the General Setting Menu. 3. -
Page 37: Protect Level (Gravity Sensing)
21.9 PROTECT LEVEL (GRAVITY SENSING) The G Sensor defines the required force needed to trigger emergency recording. Once Emergency recording is triggered the current recording will be saved and protected from being saved over by the normal loop recording. To set the required sensitivity please follow the instructions below. -
Page 38: Parking Monitor
22.0 PARKING MONITOR When activated, Parking Monitor will monitor the DVR’s G Sensor after you have turned off your vehicle. If an impact is detected the DVR will power up and record a 60 second clip. To set Park Mode, follow the instructions below. 1. -
Page 39: Setup Reset
To set up Motion Detection on your Dash Cam follow the directions below. 1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2. Press the Button 4 times to enter the General Setting Menu. 3. Use the Up and Down Buttons to navigate the Settings Menu and highlight the Protect Level setting and press OK (Rec/ Ok) to select. -
Page 40: Format Sd Card
22.3 FORMAT SD CARD Format SD Card will format your Micro SD Card. 1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2. Press the Button 4 times to enter the General Setting Menu. 3. Use the Up and Down Buttons to navigate the Settings Menu and highlight the Format SD card and press OK( Rec/Ok) to select. -
Page 41: Gps
Dash Camera has connected with satellites. 24.0 WIFI WIFI is default ON. 1. Please download the NCP-DVRGPSWIFI app from the play store or Apple Store depending on your mobile device. 2. After successfully downloading and installation of the app on your mobile . -
Page 42: Video Play Back
24.1 VIDEO PLAY BACK 1. Open the NCP-DVRGPSWIFI App. 2. Press the Camera Browser Icon. 3. Select a Video to playback. 4. Selected Video will start playing. -
Page 43: Video Download
24.2 VIDEO DOWNLOAD 1. Open the NCP-DVRGPSWIFI App. 2. Press the Camera Browser Icon. 3. Press the edit Icon on the top right of App. 4. Select a Video to download. 5. Press the Save button and the video will to download. -
Page 44: Sharing A File On Social Media
24.3 SHARING A FILE ON SOCIAL MEDIA 1. Open the NCP-DVRGPSWIFI App. 2. Press the Local Files Icon. 3. Press the Share Icon on the bottom. Note: Files needs to be saved on phone before sharing 4. Select a App to share with. -
Page 45: Warranty Terms & Conditions
This warranty is provided in addition to your rights under the Australian & New Zealand Consumer Law. NanoCam Plus warrants that this product is free from defects in material and workmanship for a period of 12 months from the date of purchase or for the period stated on the packaging. - Page 46 All costs involved in claiming this warranty, including the cost of the retailer sending the product to NanoCam Plus, will be borne by you. NanoCam Plus Address: 44 Translink Drive, Keilor Park Victoria Australia 3042 Ph: +61 03 8331 4800 Email: info@nanocamplus.com.au...
