NanoCam Plus NCP-150DVR User Manual

Full hd dash camera with 3.2" ips screen
Hide thumbs

Advertisement

Quick Links

Download this manual

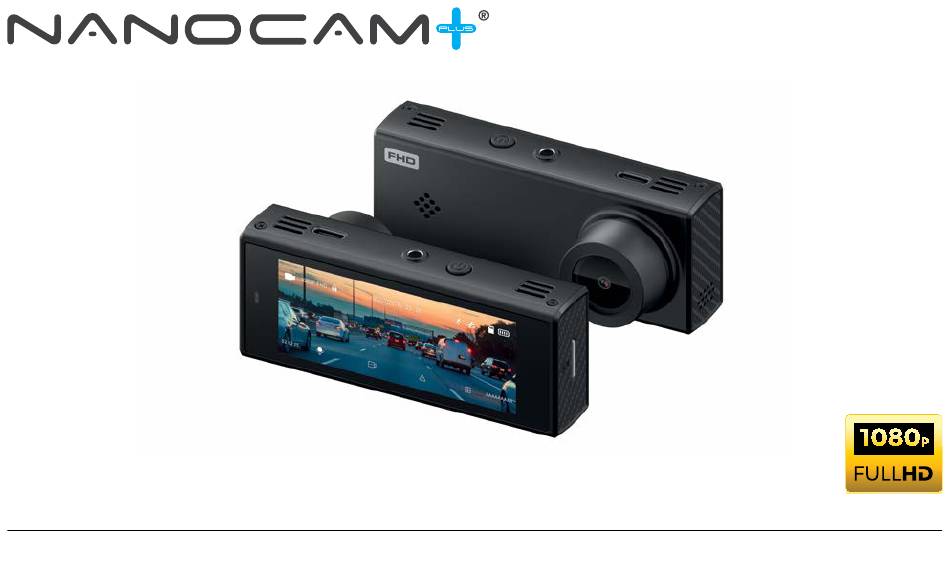

USER MANUAL
Full HD Dash Camera with 3.2" IPS Screen
Connecting
NCP-150DVR
your drive.

Advertisement

loading
Need help?

Need help?

Do you have a question about the NCP-150DVR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NanoCam Plus NCP-150DVR

Summary of Contents for NanoCam Plus NCP-150DVR

  • Page 1 USER MANUAL Full HD Dash Camera with 3.2" IPS Screen Connecting NCP-150DVR your drive.
  • Page 3 CONTENTS CAUTION ..........................6 PRODUCT INFORMATION ..................... 8 INTRODUCTION ........................8 PACKAGE CONTENTS ....................9 PRODUCT OVERVIEW ....................10 BUTTON FUNCTIONS......................11 GETTING STARTED ......................13 INSERTING A MICRO SD CARD .................. 13 REMOVING A MICRO SD CARD ................... 13 INSTALLING THE NCP-DVR150 .................. 14 ADJUSTING THE ANGLE OF THE NCP-DVR150 ............
  • Page 4 CONNECTING TO POWER ................... 16 LED INDICATOR ......................17 POWERING ON/OFF......................17 AUTO POWER ON/OFF ....................17 MANUAL POWER ON ....................17 5.3 MANUAL POWER OFF ..................18 5.4 RESETTING THE DASH CAMERA ................ 18 INITIAL SETTINGS ......................18 FORMATTING THE INSERTED MICRO SD CARD ............18 SETTING THE TIME AND DATE ..................
  • Page 5 10.0 VIDEO MENU ........................23 11.0 PICTURE MODE ........................ 26 12.0 PLAYBACK ........................27 13.0 WARRANTY TERMS & CONDITIONS ................28 13.1 INDEMNITY ......................... 29 13.2 WARRANTY AND WARRANTY DISCLAIMER ............... 29 13.3 LIMITATIONS OF NANOCAM+ LIABILITY ..............32 14.0 NOTES ..........................
  • Page 6 CAUTION • Ensure you are using your Dash Camera within your country's road laws. Please make sure you are familiar with your local road legislation before use. • Leaving your car exposed to sunlight for extended periods of time with restricted ventilation can possibly damage the unit.
  • Page 7 NOTES ON INSTALLATION • It is advised that the Dash Camera is installed near the rear-view mirror, at the top centre of the windshield for optimal operation. • Make sure that the lens is within working range of the windscreen wiper to ensure a clear view when it rains.
  • Page 8 PRODUCT INFORMATION For the latest manual and product updates please visit our websites: www.nanocamplus.com.au or www.nanocamplus.co.nz INTRODUCTION Thank you for purchasing a Nanocam Dash Camera. Please read through the instructions before attempting to install or use this product. This User Guide is designed to assist with the day-to-day operation of the NCP- DVR150. Before attempting to use or install your Nanocam NCP-DVR150, please ensure you have read and understood all of the safety notes below: •...
  • Page 9 • Since the mount sticks on the windshield with the 3M adhesive, please ensure that the camera is best located to capture the maximum view. • We suggest you power-on the Dash Camera and test the playback image on screen prior to removing the 3M tape for installation.
  • Page 10 PRODUCT OVERVIEW 1. Microphone 6. Reset 11. Display Screen 2. UP Button (also ON/OFF audio) 7. Mini USB Power Socket 12. Micro SD card slot 3. REC/OK Button 8. Slot for affixing mount 13. Speaker 4. DOWN/LOCK/Display Switch Button 9. ON/OFF Power Button 14.
  • Page 11 BUTTON FUNCTIONS MENU & MODE BUTTON When the device is not recording, press the M Button to switch between Video Mode / Photo Mode / Play Back Mode. Press and hold the 'M' Button to enter into the menu settings. OK BUTTON Press the OK Button to start/stop video recording in Video Mode.
  • Page 12 While the Dash Camera is recording, press the 'Lock' Button to lock the current file. Locking a file will prevent it from being recorded over during loop recording. UP BUTTON In the Settings menu, use the Up Button to toggle between settings. Press the Up Button to turn the inbuilt microphone ON/OFF.
  • Page 13 GETTING STARTED INSERTING A MICRO SD CARD With the Dash Camera turned off and the screen facing towards you, insert Micro SD Card (not included) in the slot on the right side of the NCP-DVR150 with the text on the Micro SD card away from you.
  • Page 14 INSTALLING THE NCP-DVR150 1. Connect the window mount to the top of the Dash Camera and rotate the locking nut (See Fig 1 on page 15) clockwise until it is tight. 2. Please follow the instructions on page 6 before continuing. 3.
  • Page 15 ADJUSTING THE ANGLE OF THE NCP-DVR150 1. Loosen the Angle Locking Nut on the mounting bracket, and adjust the vertical and horizontal angle of the camera. 2. Tighten the Angle Locking Nut to lock the position of the camera. Mounting Locking Nut Angle Locking Nut 3M adhesive...
  • Page 16 CONNECTING TO POWER Only use the included charger to power and charge the Dash Camera. 1. Once the Dash Camera is securely installed on your vehicle’s windscreen, plug the DC Power Plug into your vehicle’s cigarette lighter. 2. Run the power cable along the top and side of the windscreen and behind your glove box. Plug the Type-C USB plug into the Dash Camera and the DC Power Adaptor into your cigarette lighter port.
  • Page 17 LED INDICATOR • A flashing blue light indicates recording is in progress. NOTE: • The NCP-DVR150 is designed to be constantly powered by the included DC Power Plug. POWERING ON/OFF AUTO POWER ON/OFF When the Dash Camera is correctly installed and connected to your vehicle’s power supply, the Dash Camera will automatically power up and start recording when the vehicle accessories are activated.
  • Page 18 RESETTING THE DASH CAMERA If the Dash Camera does not function normally, try restarting the Dash Camera. To restart the Dash Camera, using a small pin, press and hold the Reset button on the bottom side of the camera. INITIAL SETTINGS Before using the Dash Camera we recommend formatting a Micro SD Card and setting the correct Time and Date.
  • Page 19 NOTES: • Menus cannot be accessed while the Dash Camera is recording. Please stop the recording before attempting to access the menu. • Formatting your Micro SD Card will delete all files from the card. Once these files have been deleted you will not be able to recover them. SETTING THE TIME AND DATE Setting the Time and Date allows you to stamp your footage with the time and date as a reference.
  • Page 20 NOTES: • Menus cannot be accessed while the Dash Camera is recording. Please stop the recording before attempting to access the menu. • Once the time and date is set, it can be stamped onto your footage using the Date Stamp setting.
  • Page 21 INTERFACE VIDEO MODE...
  • Page 22 1. Video Mode: number 3 shows the loop recording duration in minutes. 2. Resolution: 1080 FHD Video Recording Resolution. 3. Duration: (example: 00:00:01) Loop Recording timer and also indicates if the Dash Camera is recording when highlighted red. 4. Date: (example: 01/01/2021) 5.
  • Page 23 SETUP MENU 1. Press to stop recording. 2. Press and hold the Button to enter into the Settings Menu. 3. Press the Buttons to select the setting you wish to change. 4. Press Button on your selected option. 5. The new settings will be shown on the top right of the screen and also on the selected setting icon.
  • Page 24 Menu Setting Options Description Requires a 3-wire wire hardwire kit. When park mode is turned on and the car detects Park Mode the engine is off, it enters in-to stand by state, it will be turned on and record video when collision occurs.
  • Page 25 Menu Setting Options Description Date Stamp Off / On Select On/Off to have the date and time stamped on the recorded Video. Default: On Microphone Off / On Turning this setting off mutes the built in microphone. Default: On Beep sound Off / On Mutes control for Button beeps.
  • Page 26 11.0 PICTURE MODE Picture Micro SD Card Resolution Battery Indicator...
  • Page 27 12.0 PLAYBACK 1. Press the Button once to stop recording. 2. Press Button twice to enter Playback Mode. Press again to enter into Normal video /Event video /Photo playback 3. Press Buttons to select the desired file to be played back. 4.
  • Page 28 13.0 WARRANTY TERMS & CONDITIONS Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
  • Page 29 13.1 INDEMNITY You agree to defend, indemnify and hold harmless Nanocam+ and its subsidiaries and affiliates from and against any and all claims, proceedings, injuries, liabilities, losses, costs and expenses (including reasonable legal fees), including but not limited to, claims alleging negligence, invasion of privacy, copyright infringement and/or trademark infringement against Nanocam+ and its subsidiaries and affiliates, relating to or arising out of your breach of any provision of these terms, your misuse of Nanocam+ products or its services, or your unauthorised modification or...
  • Page 30 Nanocam+ (including third party content), that any defects in the Nanocam+ products or services be corrected or that the Nanocam+ products or Nanocam+ services will be compatible with any other specific hardware or service. Further, Nanocam+ does not warrant that Nanocam+ products or services or Nanocam+ servers that provide you with data and content are free of viruses or other harmful components.
  • Page 31 statutory, regarding the Nanocam+ products and services, including any implied warranty of title, merchantability, fitness for a particular purpose, or non-infringement of third-party rights. Because some jurisdictions do not permit the exclusion of implied warranties, the last sentence of this section may not apply to you. Nanocam+ hereby further expressly disclaims all liability for any claims for service failures that are due to normal product wear, product misuse, abuse, product modification improper product selection or your noncompliance with all applicable federal, state or local laws.
  • Page 32 13.3 LIMITATIONS OF NANOCAM+ LIABILITY Under no circumstances will Nanocam+ be liable in any way for any content, including, but not limited to, the loss of content, any errors or omissions in any content, or any loss or damage of any kind incurred in connection with use of or exposure to any content posted, emailed, accessed, transmitted, or otherwise made available via Nanocam+.
  • Page 33 14.0 NOTES...
  • Page 36 V1.0 Connecting your drive. www.nanocamplus.com.au | www.nanocamplus.co.nz All Images, Information and Content are Copyright © 2024 www.directed.com.au Directed Electronics Australia Pty Ltd. All Rights Reserved. www.directed.co.nz...
