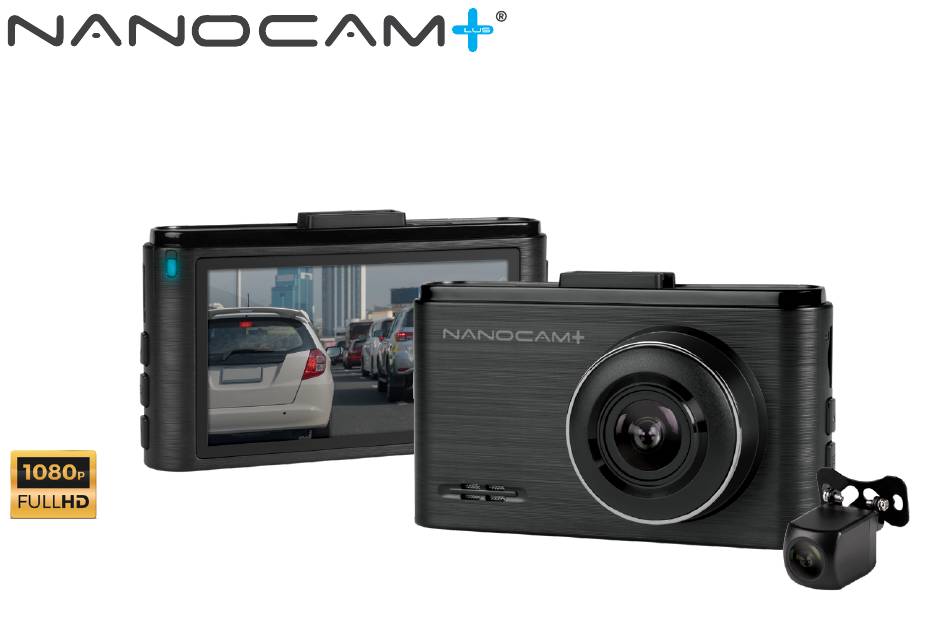

NanoCam Plus NCP-DVRFHD2 User Manual

Full hd front & rear dash camera with 3.0 screen + wifi + reversing camera
Hide thumbs

Advertisement

Quick Links

Download this manual
NCP-DVRFHD2
Full HD Front & Rear Dash Camera
with 3.0 Screen + WIFI + Reversing Camera
USER MANUAL
Your Safety.
Our Priority

Advertisement

loading
Need help?

Need help?

Do you have a question about the NCP-DVRFHD2 and is the answer not in the manual?

Questions and answers

Related Manuals for NanoCam Plus NCP-DVRFHD2

Summary of Contents for NanoCam Plus NCP-DVRFHD2

  • Page 1 NCP-DVRFHD2 Full HD Front & Rear Dash Camera with 3.0 Screen + WIFI + Reversing Camera USER MANUAL Your Safety. Our Priority...

  • Page 3: Table Of Contents

    PACKAGE CONTENTS ......................10 PRODUCT OVERVIEW ......................11 GETTING STARTED ........................12 TO REMOVE THE MEMORY CARD ..................12 INSTALLING THE CAR DVR ....................12 INSTALLING YOUR NCP-DVRFHD2 ..................13 ADJUST THE CAMERA POSITION..................13 INSTALLING THE REAR CAMERA ..................14 7.3.1 REAR CAMERA WIRING DIAGRAM .................15 7.3.2 REAR CAMERA FEATURES .....................15...
  • Page 4 AUTO POWER ON/OFF ......................16 MANUAL POWER ON/OFF AND RESET ................17 MANUAL POWER ON ......................17 POWER OFF ...........................17 RESET THE DEVICE .......................17 10.0 PLAYING BACK VIDEO ON A PC .....................17 11.0 INITIAL SETTINGS .........................18 11.1 FORMATTING THE INSERTED MICRO SD CARD ..............18 11.2 SET DATE / TIME ........................19 12.0...
  • Page 5 17.1 RESOLUTION..........................26 17.2 PHOTO QUALITY ........................26 17.3 EXPOSURE ..........................27 17.4 ISO SENSITIVITY ........................28 17.5 CONTRAST ..........................29 17.6 SHARPNESS...........................29 17.7 SATURATION ..........................30 17.8 LEVELS ...........................31 18.0 PLAYBACK MENU ........................32 18.1 VOLUME ..........................32 18.2 DELETING PHOTOS AND VIDEOS ..................32 18.3 LOCKING AND UNLOCKING PHOTOS AND VIDEOS .............33 18.4 VIDEO TYPE ..........................34 19.0...
  • Page 6 19.6 LANGUAGE ..........................37 19.7 FLICKER ..........................38 19.8 SCREEN SAVER ........................38 19.9 G SENSOR ..........................39 20.0 PARK MODE ...........................40 20.1 MOTION DETECTION ......................40 20.2 RESET .............................41 20.3 FORMAT SD CARD .........................42 20.4 FW VERSION ..........................42 21.0 WIFI ............................42 21.1 VIDEO PLAY BACK .........................44 21.2 VIDEO DOWNLOAD ........................45 21.3...

  • Page 7: Caution

    CAUTION • Ensure you are using your Car DVR within your countries’ road laws. Please make sure you are familiar with your local road legislation before use. • Avoid leaving your Car DVR in direct sunlight for extended periods of time in an unventilated space.

  • Page 8: Notes On Installation

    6. Only use the included cable to power the Car Dash Cam. 7. The NCP-DVRFHD2 is designed to be constantly connected to the included power supply, and is NOT designed to be used solely with the camera’s built in battery.

  • Page 9: Introduction

    INTRODUCTION Thank you for purchasing a NanoCam Plus Car DVR. We are certain that our product will give you trouble free operation while providing you with a safety feature that enhances your driving experience.

  • Page 10: Features

    FEATURES • Recording Full High Definition 1080p footage at 30 frames per second • 3” colour IPS screen • 135° wide angle lens • Emergency recording saves your footage when an impact is detected • Supports Micro SD cards, class 10 and above up to 128GB PACKAGE CONTENTS Dash Camera Rear Camera...

  • Page 11: Product Overview

    PRODUCT OVERVIEW 1. Micro SD card slot* 7. Rec/OK Button 13. Mini USB power socket 2. Up Button ( ) 8. Mode Button 14. Slot for fixing 3M Mount 3. Menu Button ( ) 9. Lock Recording Button ( ) 15.

  • Page 12: Getting Started

    GETTING STARTED Inserting Memory Card with the Car DVR turned off and the screen facing towards you insert the memory card into the slot on the left side of the camera with the text on the Micro SD card facing away from you.

  • Page 13: Installing Your Ncp-Dvrfhd2

    INSTALLING YOUR NCP-DVRFHD2 1. Remove the protective stickers from the Car DVR and the 3M mount. 2. Press the mount base firmly against the windscreen and hold for 30 seconds. 3. Insert the power cable adapter onto the dash camera power socket.

  • Page 14: Installing The Rear Camera

    INSTALLING THE REAR CAMERA Select a flat and centred location near the number plate lamp at the rear of the vehicle to mount camera. Attach tape to the bracket of the camera to hold the camera in position while installing, and drill two small holes, one for the first screw, the second to run the reverse camera cable through.

  • Page 15: Rear Camera Wiring Diagram

    7.3.1 REAR CAMERA WIRING DIAGRAM Rear Camera 8M Rear Camera Cable Reversing Light Wire 7.3.2 REAR CAMERA FEATURES After successfully installing and connecting of the rear camera into the main DVR, the rear camera will be displayed on the Dash Cam's 3.0" Screen. Both Cameras will instantaneously start recording after DVR is powered ON.

  • Page 16: Connecting To Power

    Display can switch between: 1. Full Front Camera view 2. Full Rear Camera view 3. Half Front and Half Rear view 4. Full Front with small window for Rear view 5. Full Rear with small window for Front view When your vehicle is in reverse gear, the display will change to the Rear Camera view to assist the driver when reversing / parking.

  • Page 17: Manual Power On/Off And Reset

    MANUAL POWER ON/OFF AND RESET MANUAL POWER ON Hold the Power button on the top of the camera until the NanoCam Plus start up screen appears. POWER OFF Make sure that recording has been stopped and then press the Power button on the bottom right hand side of the car DVR.

  • Page 18: Initial Settings

    11.0 INITIAL SETTINGS Before using the Car DVR we recommend formatting the inserted Micro SD Card and setting the correct Time and Date. 11.1 FORMATTING THE INSERTED MICRO SD CARD Formatting the Micro SD card will delete all information on the inserted Micro SD Card and prepare the card for use with the Car DVR.

  • Page 19: Set Date / Time

    * Please ensure that the NCP-DVRFHD2 is compatible with Micro SD cards up to 128GB capacity, Class 10 or above. Micro SD Card is not included. 11.2 SET DATE / TIME Setting the Time and Date allows you to stamp your footage with the time as a reference.

  • Page 20: Recording Video

    NOTE: 1. Menus cannot be accessed while the camera is recording. Please stop the recording before attempting to access the menu. 2. Once the time and date is set it can be stamped onto your footage using the Date Stamp setting.

  • Page 21: Locked Recording

    13.0 LOCKED RECORDING Locked Recording saves the current video file and protects it from being overwritten. To manually start a Locked Recording follow the instructions below. 1. During recording push the button. NOTE: 1. If the G Sensor function is enabled and a collision is detected, the device will automatically trigger the emergency recording and protect the current video file.

  • Page 22: Screen Interface

    14.0 SCREEN INTERFACE 1. Video Mode 2. Loop Recording 3. Exposure 4. Microphone / Mute Recording 5. Recording Indicator 6. GPS 7. WIFI 8. Recording Time 9. Resolution 10. Park Mode 11. G Sensor 12. SD Card 13. Charging 14. Date 15.

  • Page 23: Video Resolution

    15.1 VIDEO RESOLUTION Resolution sets the video quality. Higher resolution video will capture more detail and will also produce larger files. To change the recording resolution, please follow the instructions below. 1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2.

  • Page 24: Microphone

    Recording setting and press OK (Rec/Ok) to select. 4. Use the Up and Down Buttons to highlight your required Clip Length, then press the OK (Rec/Ok) button to confirm your selection. NOTE: 1. Menus cannot be accessed while the camera is recording. Please stop the recording before attempting to access the menu.

  • Page 25: Ldws

    NOTE: • Menus cannot be accessed while the camera is recording. Please stop the recording before attempting to access the menu 16.0 LDWS The built-in LDWS - Lane Depature Warning System will constantly monitor the road ahead and your driving lane. The camera will provide both an audible and visual alert if your vehicle is drifting out of it's lane.

  • Page 26: Resolution

    17.1 RESOLUTION Resolution sets the still image photo quality. Higher resolution images will capture more detail and will also produce larger files. To change the photo resolution, please follow the instructions below. 1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2.

  • Page 27: Exposure

    2. Press the Button twice to enter the Photo Menu. 3. Use the Up and Down Buttons to navigate the Photo Menu and highlight the Quality setting and press OK (Rec/Ok) to select. 4. Use the Up and Down Buttons to highlight your required quality, then press the OK (Rec/ Ok) button to confirm your selection.

  • Page 28: Iso Sensitivity

    NOTE: 1. Menus cannot be accessed while the camera is recording. Please stop the recording before attempting to access the menu. 2. This setting can only be accessed through the Photo Menu, please make sure that you are in the Photo screen when you access the menu. 17.4 ISO SENSITIVITY ISO is used to manage how much light is let into the image sensor.

  • Page 29: Contrast

    17.5 CONTRAST Contrast setting is used to set the contrast level of the color in the recorded videos 1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2. Press the Button twice to enter the Photo Menu. 3.

  • Page 30: Saturation

    3. Use the Up and Down Buttons to navigate the Photo Menu and highlight the Sharpness setting and press OK (Rec/Ok) to select. 4. Use the Up and Down Buttons to highlight your required sharpness, then press the OK (Rec/Ok) button to confirm your selection. NOTE: 1.

  • Page 31: Levels

    NOTE: 1. Menus cannot be accessed while the camera is recording. Please stop the recording before attempting to access the menu. 2. This setting can only be accessed through the Photo Menu, please make sure that you are in the Photo screen when you access the menu. 17.8 LEVELS The Level setting is used to manually adjust the settings used to counteract different light conditions.

  • Page 32: Playback Menu

    18.0 PLAYBACK MENU 18.1 VOLUME To increase the volume of the speaker of Dash Camera. 1. Navigate to the playback screen using the instructions in the section labeled Playback Screen. 2. In the Volume Mode use the Up and Down Buttons to select the level of volume you want to adjust.

  • Page 33: Locking And Unlocking Photos And Videos

    6. Select OK and press the OK (Rec/Ok) button to confirm the deletion. NOTE: 1. Menus cannot be accessed while the camera is recording. Please stop the recording before attempting to access the menu. 2. You will only be able to delete videos that have not been protected by a G Sensor. 3.

  • Page 34: Video Type

    and videos, Unlock Current to unlock the currently selected photo or video, Lock All to lock all videos and photos to protect them from deletion, or Lock Current to lock the currently selected to protect the currently selected photo or video from deletion. 5.

  • Page 35: Settings Menu

    19.0 SETTINGS MENU The Settings menu is used to adjust the cameras Settings. To Access the Settings menu, ensure that the camera is not recording and press the Menu Button to enter the Video Menu, then press the Menu Button again to enter the Photo Menu,Press the Menu Button again to enter PlayBack Menu , Press the Menu Button again...

  • Page 36: Date/Time

    19.3 DATE/TIME Date/Time option will help you to set the date in the format which you want on you video display and also on the water mark on the recorded video. 1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2.

  • Page 37: Stamp

    19.5 STAMP GPS Stamp feature will stamp the GPS co-ordinates onto your recorded video as it records by default. 1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2. Press the Button 4 times to enter the General Setting Menu. 3.

  • Page 38: Flicker

    19.7 FLICKER Flicker option will help you to adjust the camera's frequency rate when recording video to minimise flickering effect from LED lights. 1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2. Press the Button 4 times to enter the General Setting Menu. 3.

  • Page 39: G Sensor

    19.9 G SENSOR The G Sensor defines the required force needed to trigger emergency recording. Once Emergency recording is triggered the current recording will be saved and protected from being saved over by the normal loop recording. To set the required sensitivity please follow the instructions below.

  • Page 40: Park Mode

    20.0 PARK MODE When activated, Parking Monitor will monitor the DVR’s G Sensor after you have turned off your vehicle. If an impact is detected the DVR will power up and record a 60 second clip. To set Park Mode, follow the instructions below. 1.

  • Page 41: Reset

    To set up Motion Detection on your Dash Cam follow the directions below. 1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2. Press the Button 4 times to enter the General Setting Menu. 3. Use the Up and Down Buttons to navigate the Settings Menu and highlight the Protect Level setting and press OK (Rec/ Ok) to select.

  • Page 42: Format Sd Card

    20.3 FORMAT SD CARD Format SD Card will format your Micro SD Card. 1. Press the OK (Rec/Ok) Button to stop the Car DVR from recording. 2. Press the Button 4 times to enter the General Setting Menu. 3. Use the Up and Down Buttons to navigate the Settings Menu and highlight the Format SD card and press OK( Rec/Ok) to select.
  • Page 43 4. Select ON/Off to Switch On/Off WIFI. WIFI is default ON. 1. Please download the NCP-DVRFHD2 app from the play store or Apple Store depending on your mobile device. 2. After successfully downloading and installation of the app on your mobile.

  • Page 44: Video Play Back

    21.1 VIDEO PLAY BACK 1. Open the NCP-DVRFHD2 App. 2. Press the Camera Browser Icon. 3. Select a Video to playback. 4. Selected Video will start playing.

  • Page 45: Video Download

    21.2 VIDEO DOWNLOAD 1. Open the NCP-DVRFHD2 App. 2. Press the Camera Browser Icon. 3. Press the edit Icon on the top right of App. 4. Select a Video to download. 5. Press the Save button and the video will to download.

  • Page 46: Sharing A File On Social Media

    21.3 SHARING A FILE ON SOCIAL MEDIA 1. Open the NCP-DVRFHD2 App. 2. Press the Local Files Icon. 3. Press the Share Icon on the bottom. Note: Files needs to be saved on phone before sharing 4. Select a App to share with.

  • Page 47: Warranty Terms & Conditions

    22.0 WARRANTY TERMS & CONDITIONS Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
  • Page 48 Nanocam Plus and its subsidiaries and affiliates, relating to or arising out of your breach of any provision of these terms, your misuse of Nanocam Plus products or its services, or your unauthorised modification or alteration of products or software.
  • Page 49 Nanocam Plus product or software. In the event of any loss, damage or injury, you will not look to Nanocam Plus to compensate you or anyone else. You release and waive for yourself and your insurer all subrogation and other rights to recover against Nanocam Plus arising as a result of the payment of any claim for loss, damage or injury.
  • Page 50 Should the claim for damages be based on wilful or grossly negligent breach of contractual duty or obligation on the part of Nanocam Plus, the preclusion and limitation of liability mentioned in the preceding sentences will not apply. The preceding preclusion and limitation of liability will also not apply to claims for damages arising out of loss of life, bodily injury or health impacts for which Pixbee may be liable, or for non-contractual liability.
  • Page 52 V1.1 Your Safety. Our Priority All Images, Information and Content are Copyright © 2023 www.nanocamplus.com.au www.directed.com.au Directed Electronics Australia Pty Ltd. All Rights Reserved. www.nanocamplus.co.nz www.directed.co.nz...
