Summary of Contents for NanoCam Plus NCP-MIRDVR961

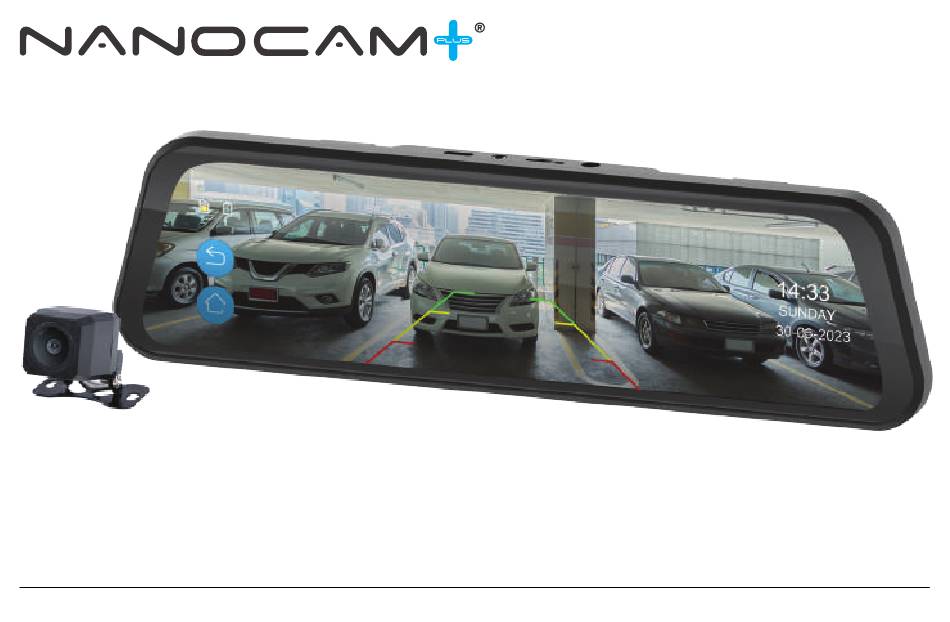

- Page 1 USER MANUAL 9.66" Touch Screen Rear DVR Mirror Monitor with Voice Control, ADAS and 1080p Rear Camera Your Safety. NCP-MIRDVR961 Our Priority.
-
Page 3: Table Of Contents
FUNCTIONS ......................... 9 GETTING STARTED ......................11 Inserting/Removing a Micro SD Card ................11 Installing the NCP-MIRDVR961 ..................12 Connecting Power Supply to the NCP-MIRDVR961 .............12 CONNECTING THE REVERSE CAMERA ................13 Installation Guide ......................13 Reverse Camera Wiring Diagram ................14 POWERING THE DVR MIRROR MONITOR ON/OFF ............. 14 Auto Power On/Off ......................14... - Page 4 PLAYING BACK RECORDED VIDEO ON A PC ..............16 HOME INTERFACE ......................17 DVR MIRROR MONITOR INTERFACE .................. 18 10.0 ADAS INTERFACE ......................19 11.0 ROA AND BSA CALIBRATION ..................... 22 11.1 ROA Calibration (Rear Object Alert) ................22 11.2 BSA Calibration (Blind Spot Assistance) ..............23 12.0 FILE MANAGEMENT ......................
- Page 6 Please read this user manual carefully before using the product and retain the manual for future reference. CAUTION • Ensure that you are using the product within your countries’ road laws. Please make sure you are familiar with your local road legislation before use. •...
-
Page 7: Introduction
• Please observe local regulations when disposing the product. INTRODUCTION Thank you for your purchase. The Nanocam Plus NCP-MIRDVR961 is an innovative full HD 1080p DVR Mirror Monitor that uses a high performance chip to produce high definition video with seamless playback. We are certain that this product will give you trouble-free operation while providing you with a safety feature that enhances your driving experience. -
Page 8: Package Contents
PACKAGE CONTENTS 9.66” DVR Mirror Monitor Rear Camera 12/24V Adaptor Rubber Fasteners 8m Rear Camera Cable 3M VHB Adhesive Rear Camera User Manual EVA Pads x 2 Mounting Screws... -
Page 9: Functions
FUNCTIONS... - Page 10 1. Power Port Type-C 5. Power/Display Off Key 2. AV In (Rear Camera) 6. Touch Panel/Display Screen 3. Micro SD Card Port 7. GPS Port (not applicable) 4. Speaker 8. Reset Button * Note: Micro SD Card is not included and must be purchased separately. TYPE-C USB PORT Connect to TypeUSB cable for power.
-
Page 11: Getting Started
GETTING STARTED INSERTING/REMOVING A MICRO SD CARD With the DVR Mirror Monitor turned off and the screen facing towards you, insert the memory card with the text on the Micro SD Card facing you. Push the memory card in until a click is heard. -
Page 12: Installing The Ncp-Mirdvr961
CONNECTING POWER SUPPLY TO THE NCP-MIRDVR961 Only use the included charger to power and charge the NCP-MIRDVR961. 1. Once the DVR Mirror Monitor is securely installed onto your vehicle’s rear view mirror, plug the 12/24V DC charger into your vehicle’s 12V input port or power source. -
Page 13: Connecting The Reverse Camera
CONNECTING THE REVERSE CAMERA INSTALLATION GUIDE 1. Select a flat and centred location near the number plate lamp at the rear of the vehicle to mount the camera. 2. Attach tape to the bracket of the camera to hold the camera in position while installing, and drill two small holes, one for the first screw, the second to run the reverse camera cable through. -
Page 14: Reverse Camera Wiring Diagram
12V input port. AUTO POWER ON/OFF When the NCP-MIRDVR961 is correctly installed and connected to your vehicles’ 12/24V DC power supply, the DVR Mirror Monitor will automatically power on and start recording when the car’s accessories are activated. -
Page 15: Manual Power On/Off
REC icon on the display. Then press and hold the power button at the bottom of the NCP-MIRDVR961. After powering off the device please wait for 10 seconds before powering the DVR Mirror Monitor on again. RESETTING THE DEVICE If the DVR Mirror Monitor is not functioning normally, try restarting the DVR Mirror Monitor. -
Page 16: Playing Back Recorded Video On A Pc
PLAYING BACK RECORDED VIDEO ON A PC To playback video files on your PC, it is recommended to connect the Micro SD Card (not included) directly to your PC using either a USB Micro SD Card reader (not included) or if your PC has a Micro SD Card slot, a Micro SD Card converter (not included). -
Page 17: Home Interface
HOME INTERFACE 1. SD Card Indicator 6. ADAS Button 2. Power Connected Indicator 7. Recorded Files Playback 3. Return Button 8. Driving Settings 4. Home Button 9. System Settings 5. Driving Recording Settings 10. Time, Day and Date... -
Page 18: Dvr Mirror Monitor Interface
DVR MIRROR MONITOR INTERFACE 1. SD Card Indicator 5. Recording Icon/ 9. Take Picture Duration 2. Power Connected 10. Lock Recorded File Indicator 6. Parking Monitor 11. Microphone On/Off 3. Return Button 7. Voice Control 12. Time, Day and Date 4. -
Page 19: Adas Interface
10.0 ADAS INTERFACE 1. SD Card Indicator 4. Home Button 2. Power Connected Indicator 5. ROA (Rear Object Alert) 3. Return Button 6. BSA (Blind Spot Assistance) - Page 20 1. Touch the appropriate Function button located between Calibration and Settings of each feature to turn on/off the respective ROA and BSA. 2. Touch the appropriate Settings button to turn on/off the individual audio alerts. 3. Touch the appropriate Calibration button to calibrate settings for ROA and BSA respectively.
- Page 21 PLEASE NOTE: • The red warning zone will not work when reverse gear is engaged. • When either the ROA or BSA is off, the red warning zone will not be highlighted.
-
Page 22: Roa And Bsa Calibration
11.0 ROA AND BSA CALIBRATION 11.1 ROA CALIBRATION (REAR OBJECT ALERT) Press the Calibration button under ROA. Use the directional arrows to adjust the ROA zone in the centre. You can press the centre square to select specific coordinates for adjustment. Once done, press SAVE to confirm the settings. -
Page 23: Bsa Calibration (Blind Spot Assistance)
11.2 BSA CALIBRATION (BLIND SPOT ASSISTANCE) Press the Calibration button under BSA. Use the directional arrows to adjust the BSA zones on the left and right. You can press the centre square to select specific coordinates on the left and right zones for adjustment. Once done, press SAVE to confirm the settings. -
Page 24: File Management
12.0 FILE MANAGEMENT Touch the File Management button to open the File Management window. The saved files can be played back by pressing the selected file. Files triggered by the G- Sensor will be saved under VIDEO LOCK and the pictures under PHOTO. -
Page 25: Driver Settings
13.0 DRIVER SETTINGS Touch to open the sub menu for each setting and touch again to confirm settings. Selected setting will have the tick mark next to it. DESCRIPTION FEATURE Loop Recording Touch to set loop recording time. Loop recording allows you to set the duration that the camera will record before creating a new clip. - Page 26 DRIVER SETTINGS CONT' DESCRIPTION FEATURE Microphone Touch to turn on/off internal microphone. Turning off will mute the voice on the recorded footage. Options: Off / On Default: On ( RED means Off) G-Sensor Touch to change the settings of the built-in G-Sensor. The G-Sensor monitors your vehicle against impact forces and will automatically protect the current recording in the event of a collision.
- Page 27 DRIVER SETTINGS CONT' DESCRIPTION FEATURE Date Stamp To stamp Date and Time on the recorded video. Options: Off / On Default: On Non Mirror Image Change the rear camera image on the DVR Mirror Monitor to a non-mirror image. Irrespective of the selection, this will allow the camera to record license plates correctly.
-
Page 28: System Settings
14.0 SYSTEM SETTINGS DESCRIPTION FEATURE Auto LCD Off Touch to change the Auto LCD Off setting. Setting the screen time out will set the time after which the screen will switch off automatically while the DVR Mirror Monitor will continue recording. - Page 29 SYSTEM SETTINGS CONT' DESCRIPTION FEATURE Power On/Off Sound To turn On/Off Power On/Off sound Options: Off / On Default: Off Format Micro SD Card To format the Micro SD Card (Not included) Restore Factory Settings To restore to factory settings Date and Time To adjust date and time Voice Command...
-
Page 30: Warranty Terms And Conditions
15.0 WARRANTY TERMS AND CONDITIONS Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. - Page 31 Nanocam Plus and its subsidiaries and affiliates, relating to or arising out of your breach of any provision of these terms, your misuse of Nanocam Plus products or its services, or your unauthorised modification or alteration of products or software.
- Page 32 Nanocam Plus product or software. In the event of any loss, damage or injury, you will not look to Nanocam Plus to compensate you or anyone else. You release and waive for yourself and your insurer all subrogation and other rights to recover against Nanocam Plus arising as a result of the payment of any claim for loss, damage or injury.
- Page 33 Nanocam Plus does not undertake any risk that you or property, or the person or property of others, may be subject to injury or loss if such an event occurs. The allocation of such risks remains with you, not Nanocam Plus.
- Page 34 LIMITATIONS OF NANOCAM PLUS LIABILITY Under no circumstances will Nanocam Plus be liable in any way for any content, including, but not limited to, the loss of content, any errors or omissions in any content, or any loss or damage of any kind incurred in connection with use of or exposure to any content posted, emailed, accessed, transmitted, or otherwise made available via Nanocam Plus.
-
Page 36: Notes
16.0 NOTES... - Page 40 V1.0 Your Safety. Our Priority. www.nanocamplus.com.au | www.nanocamplus.co.nz All Images, Information and Content are Copyright © 2023 www.directed.com.au Directed Electronics Australia Pty Ltd. All Rights Reserved. www.directed.co.nz...
