4. Verify that a Link exists by checking that the port LINK LED is
solid green. If the LINK LED is off, perform the following
steps until it is on:
a. Check that the power is turned on for the device at the
other end of the Link.
b. Verify proper crossing over of fiber strands between the
applicable port on the ELS100-16TX and the fiber optic
device at the other end of the fiber optic link segment.
c. Verify that the fiber connection meets the dB loss

specifications.

If a Link has not been established, contact Cabletron Systems
Global Call Center. Refer to Section 1.2, Getting Help, for details.
The ELS100-16TX is now ready to be set up through Local
Management. Refer to Chapter 4, Monitoring and Managing Your
ELS100-16TX, to configure the ELS100-16TX.
Unpacking and Installing Your ELS100-16TX
9X 11X 13X 15X
10X 12X 14X 16X

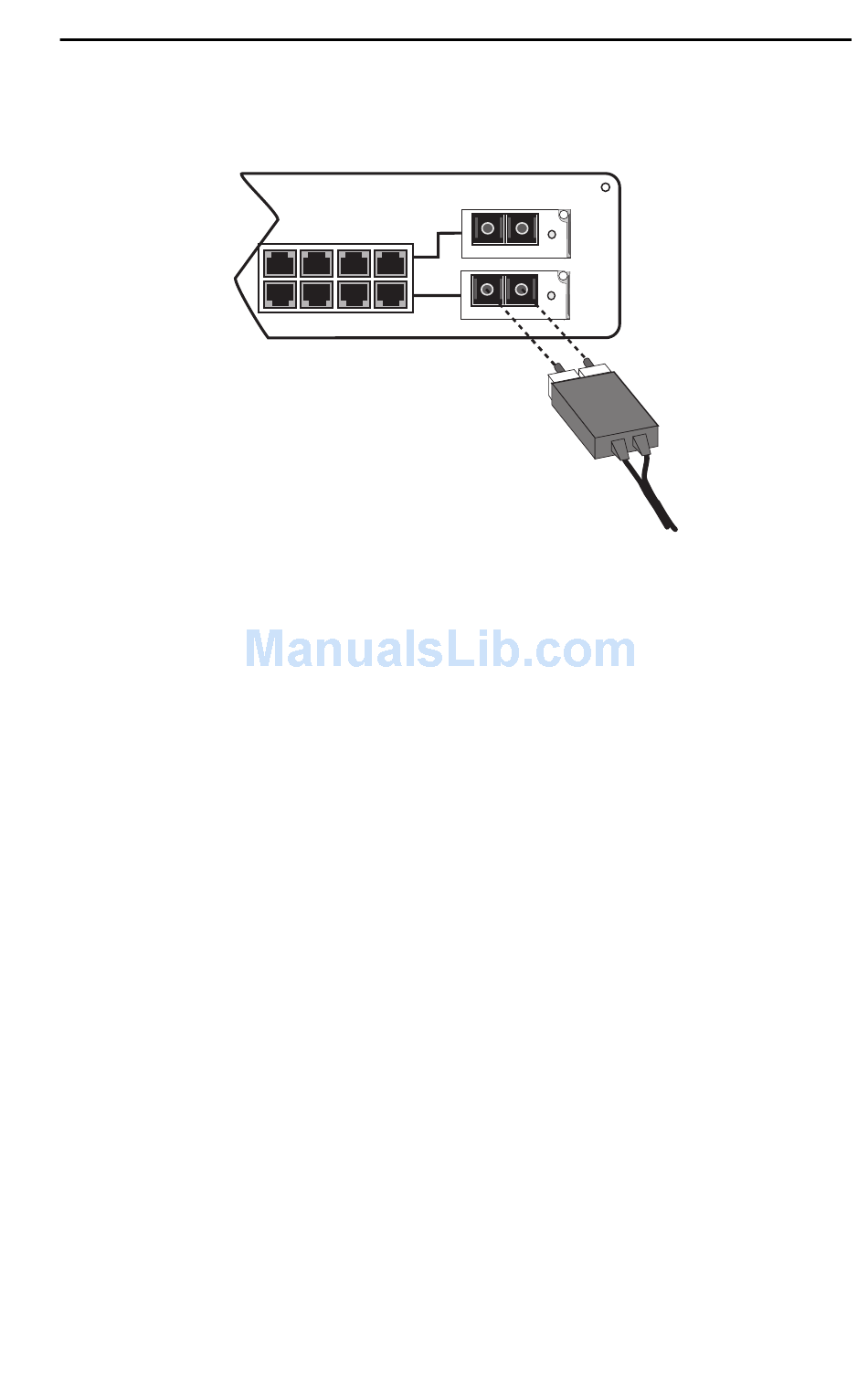

Figure 2-7. EPIM-100FX Port
EPIM100
LNK
EPIM-100FX
LNK
EPIM-100FX
EPIM100
2-13
