Trunk Group #1
To enable trunking for the example shown, perform the following:
1. Connect the desired ports of the ELS100-16TXs together using
100BASE-T crossover cables.
If ELS100-16TX A is handling only a small number of users,
the A to B Trunk Group could have just two ports per ELS100-
16TX. If ELS100-16TX B and C are expected to interconnect
many users, you could use up to eight ports in the B to C
Trunk Group.
2. Using LCM or an NMS, turn on trunking for the connected
ports on each ELS100-16TX.
For ELS100-16TX A, at the LCM prompt:
a. Type
trunk 2,3 on
PORT STATUS MODE
STATUS
STATUS
TX ACT FDX MON
PWR
CPU
RESET STATUS
COM RX COL 100 USR
ELS100-16TX
PORT STATUS MODE
LINK
STATUS
STATUS
TX ACT FDX MON
PWR
LINK
CPU
STATUS
RESET
RX COL 100 USR
ELS100-16TX COM
Trunk Group #2
PORT STATUS MODE
STATUS STATUS
TX ACT FDX MON
PWR
CPU
RESET STATUS
ELS100-16TX COM RX COL 100 USR

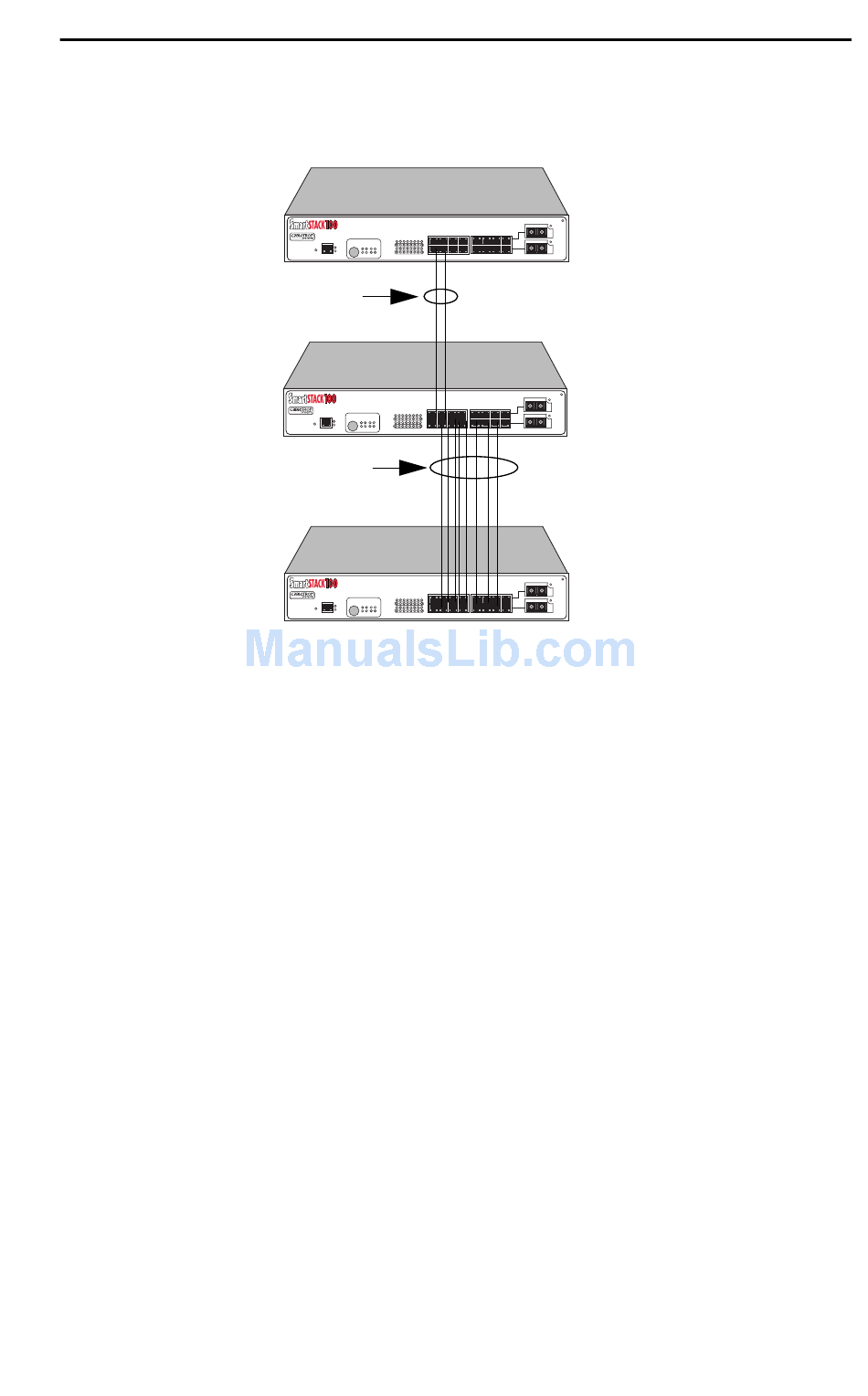

Figure 3-2. Trunk Groups
Configuring Your ELS100-16TX
EPIM100
1X 3X 5X 7X 9X 11X 13X 15X
1 3 5 7 9 11 13 15
LINK
LINK
EPIM100
2 4 6 8 10 12 14 16 2X 4X 6X 8x 10X 12X 14X 16X
EPIM100
1X 3X 5X 7X 9X 11X 13X 15X
1 3 5 9 11 13 15
7
2 4 6 8 10 12 14 16 2X 4X 6X 8x 10X 12X 14X 16X EPIM100
EPIM100
1X 3X 5X 7X 9X 11X 13X 15X
1 3 5 7 9 11 13 15
LINK
LINK
2 4 6 8 10 12 14 16 2X 4X 6X 8x 10X 12X 14X 16X EPIM100
ELS100-16TX A
ELS100-16TX B
ELS100-16TX C
3-9
