Configuring Your ELS100-16TX
100BASE-T Crossover Cables
(providing 800 Mbps of bandwidth)

Trunk Groups

Each set of connections between two ELS100-16TXs is called a
Trunk Group. You can create up to eight trunk groups, each with up
to eight ports, to interconnect your ELS100-16TXs.
For example, if you have three ELS100-16TXs (A, B, and C), as
shown in Figure 3-2, you could connect them using a single
Ethernet segment. However, that would limit the interconnection
to 100 Mbps. To solve this problem, you could connect A to B with
one Trunk Group, and connect B to C with a second Trunk Group.
3-8
PORT STATUS MODE
1 3 5 7
LINK
STATUS
STATUS
TX ACT FDX MON
PWR
LINK
CPU
RESET STATUS
COM RX COL 100 USR 2 4 6 8 10 12 14 16
ELS100-16TX
PORT STATUS MODE
1 3 5 7
LINK
STATUS
STATUS
TX ACT FDX MON
PWR
LINK
CPU
STATUS
RESET
COM RX COL 100 USR
ELS100-16TX 2 4 6 8 10 12 14 16

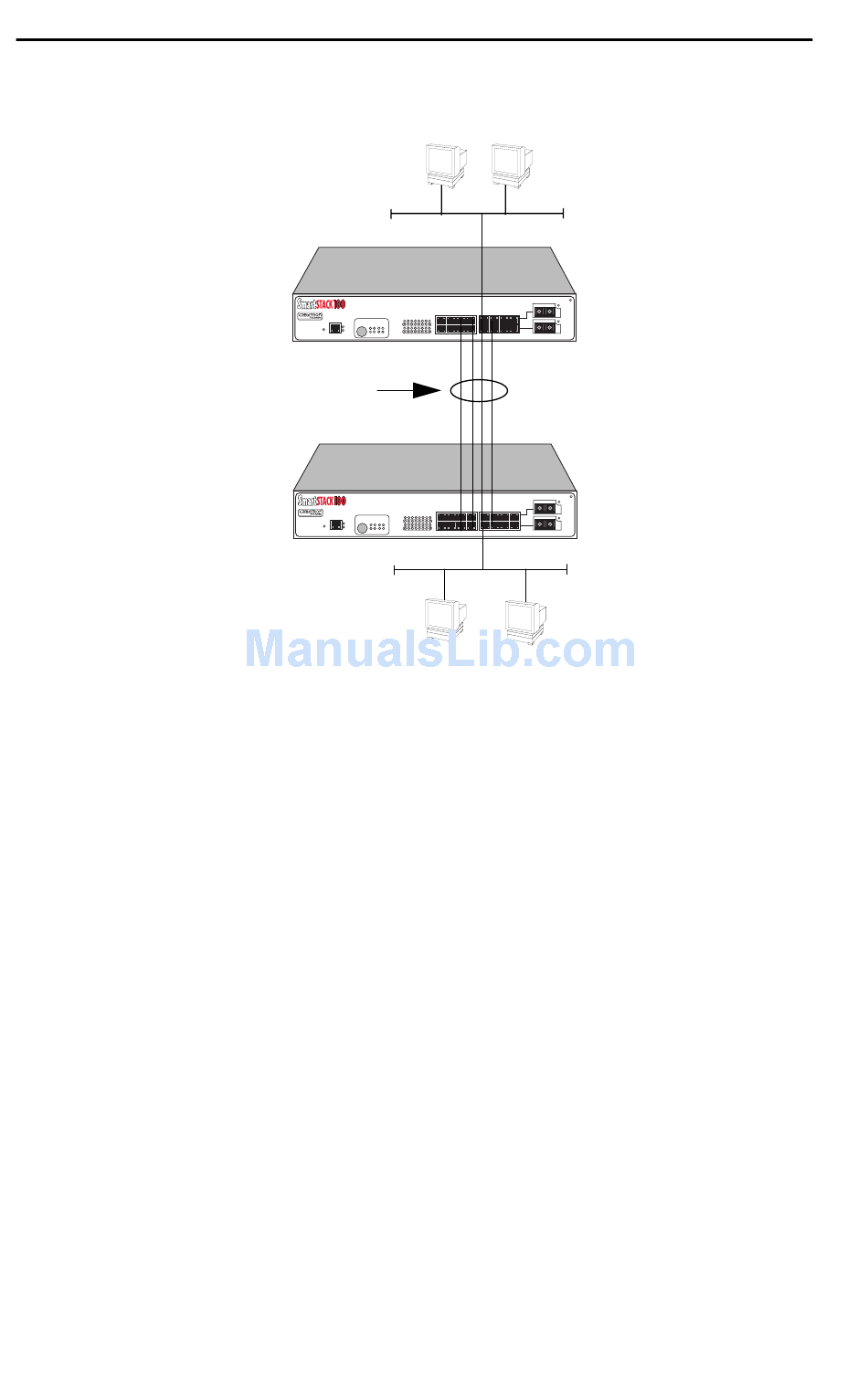

Figure 3-1. Trunk Connections
ELS100-16TX
EPIM100
1X 3X 5X 7X 9X 11X 13X 15X
9 11 13 15
EPIM100
2X 4X 6X 8x 10X 12X 14X 16X
ELS100-16TX
EPIM100
1X 3X 5X 7X 9X 11X 13X 15X
9 11 13 15
2X 4X 6X 8x 10X 12X 14X 16X EPIM100
