Internet Appliance 1100/1200
Getting Started Guide
Order No. 9033368
Part No. 39-193-01, Rev. 0A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IA1100 and is the answer not in the manual?

Questions and answers

Related Manuals for Cabletron Systems IA1100

Summary of Contents for Cabletron Systems IA1100

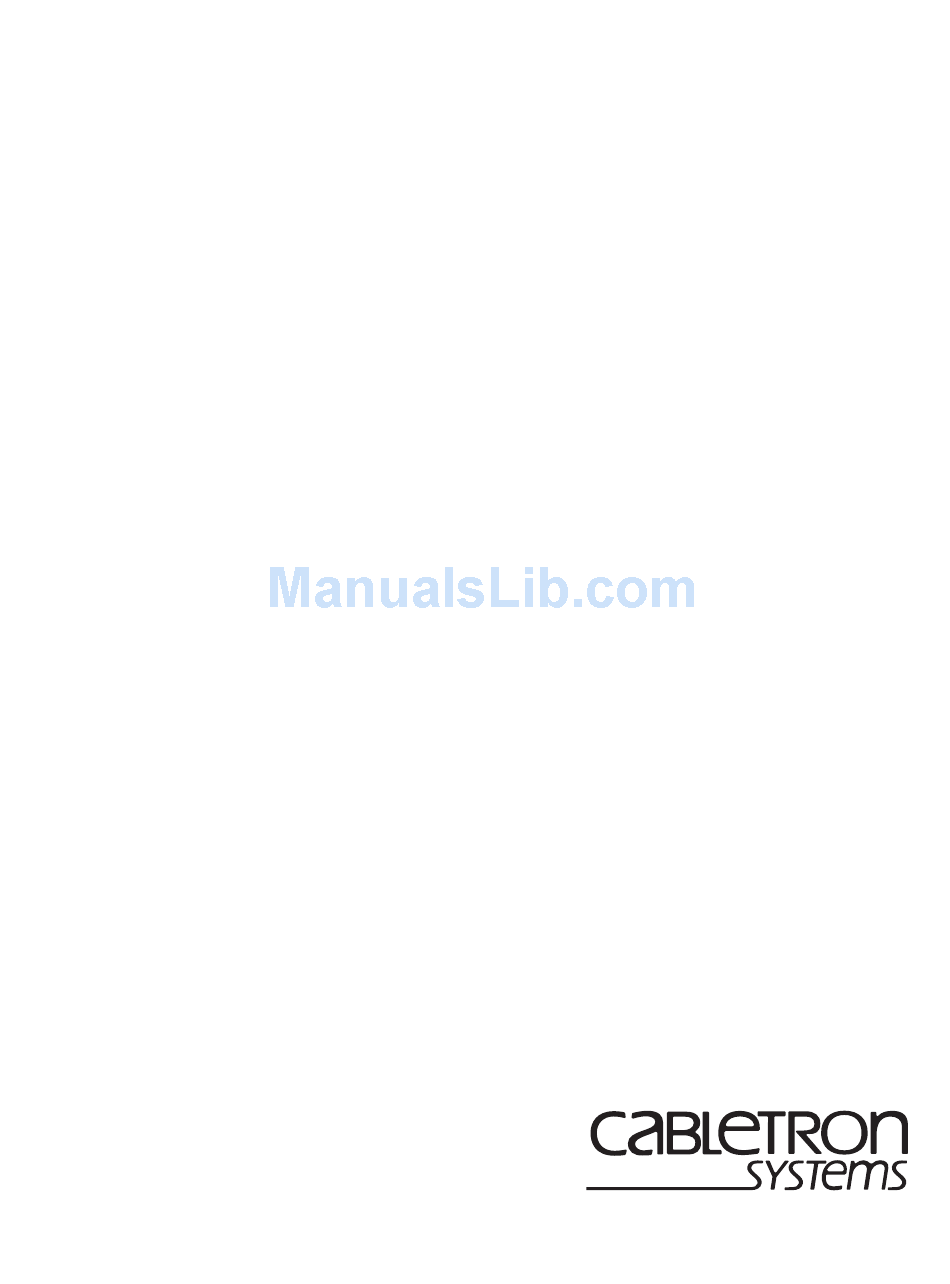

  • Page 1 Internet Appliance 1100/1200 Getting Started Guide Order No. 9033368 Part No. 39-193-01, Rev. 0A...
  • Page 2 Changes Cabletron Systems, Inc., reserves the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems, Inc., to determine whether any such changes have been made. The hardware, firmware, or software described in this manual is subject to change without notice.

  • Page 3: Industry Canada Compliance Statement

    Regulatory Compliance Information Regulatory Compliance Information This product complies with the following: Safety UL 1950; CSA C22.2, No. 950; 73/23/EEC; EN 60950; IEC 950 Electromagnetic FCC Part 15; CSA C108.8; 89/336/EEC; EN 55022; EN 61000-3-2 Compatibility (EMC) EN 61000-3-3; EN 50082-1, AS/NZS 3548; VCCI V-3 Regulatory Compliance Statements FCC Compliance Statement This device complies with Part 15 of the FCC rules.
  • Page 4 Regulatory Compliance Statements NOTICE: The Industry Canada label identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational, and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The department does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company.
  • Page 5 Safety Information: Class 1 Laser Transceivers This product may use Class 1 laser transceivers. Read the following safety information before installing or operating this product. The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation limits. This control loop eliminates the need for maintenance checks or adjustments.

  • Page 6: Program License Agreement

    Cabletron Systems, Inc. Program License Agreement Cabletron Systems, Inc. Program License Agreement IMPORTANT: THIS LICENSE APPLIES FOR USE OF PRODUCT IN THE FOLLOWING GEOGRAPHICAL REGIONS: CANADA MEXICO CENTRAL AMERICA SOUTH AMERICA BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT.
  • Page 7 Sections 1 or 2 of this Agreement, You agree not to (i) reexport or release the Program, the source code for the Program or technology to a national of a country in Country Groups D:1 or E:2 (Albania, Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia, Iraq, Kazakhstan, Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Moldova, North Korea, the People’s Republic of China, Romania, Russia, Rwanda, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, Vietnam, or such other countries as may be designated by the United States Government), (ii)
  • Page 8 Cabletron Systems Sales and Service, Inc. Program License Agreement Cabletron Systems Sales and Service, Inc. Program License Agreement IMPORTANT: THIS LICENSE APPLIES FOR USE OF PRODUCT IN THE UNITED STATES OF AMERICA AND BY UNITED STATES OF AMERICA GOVERNMENT END USERS. BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT.
  • Page 9 Republic of China, Romania, Russia, Rwanda, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, Vietnam, or such other countries as may be designated by the United States Government), (ii) export to Country Groups D:1 or E:2 (as defined herein) the direct product of the Program or the technology, if such foreign produced direct product is subject to national security controls as identified on the U.S.
  • Page 10 Cabletron Systems Limited Program License Agreement Cabletron Systems Limited Program License Agreement IMPORTANT: THIS LICENSE APPLIES FOR THE USE OF THE PRODUCT IN THE FOLLOWING GEOGRAPHICAL REGIONS: EUROPE MIDDLE EAST AFRICA ASIA AUSTRALIA PACIFIC RIM BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT.
  • Page 11 If the Program is exported from the United States pursuant to the License Exception TSR under the U.S. Export Administration Regulations, in addition to the restriction on transfer set forth in Sections 1 or 2 of this Agreement, You agree not to (i) reexport or release the Program, the source code for the Program or technology to a national of a country in Country Groups D:1 or E:2 (Albania, Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia, Iraq, Kazakhstan, Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Moldova, North Korea, the People’s...

  • Page 12: Declaration Of Conformity Addendum

    Declaration of Conformity Addendum Declaration of Conformity Application of Council Directive(s) Manufacturer’s Name Manufacturer’s Address European Representative’s Name European Representative’s Address Conformance to Directive(s)/Product Standards Equipment Type/Environment We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with this notice conforms to the above directives.

  • Page 13: Table Of Contents

    Preface ... 1 About This Guide..1 Who Should Read This Guide? ...1 How to Use This Guide ..1 Related Documentation...2 Chapter 1: Features Overview ... 3 Internet Appliance Models ...3 1100 Chassis ..4 1200 Chassis ..4 Features...
  • Page 14 Contents Chapter 3: Basic System Setup ... 19 Powering On and Booting the Software ... 19 Starting the Command Line Interface ... 20 Access Modes... 2 0 Basic Line Editing Commands ... 21 Setting Basic System Information ... 22 Setting Up SNMP Community Strings ... 25 Setting Up Passwords ...
  • Page 15 10/100 Base-TX Ports...60 Cabling and Connector Specifications ...60 LEDs...62 Console Management Cables ...62 DTE Cable...63 Index ... 65 Internet Appliance 1100/1200 Getting Started Guide Contents...
  • Page 16 Contents Internet Appliance 1100/1200 Getting Started Guide...

  • Page 17: Preface

    About This Guide This guide provides a general overview of the Internet Appliance hardware and software features and provides procedures for installing and configuring the Internet Appliance 1100/1200. For product information not available in this guide, see the manuals listed in “Related Documentation”...

  • Page 18: Related Documentation

    Preface Related Documentation The Internet Appliance documentation set includes the following items. Refer to these other documents to learn more about your product. For Information About How to use Command Line Interface (CLI) commands to configure and manage the Internet Appliance 1100/1200 The complete syntax for all CLI commands System messages...

  • Page 19: Chapter 1: Features Overview

    Features Overview The Cabletron Internet Appliance 1100/1200 (IA 1100/1200) is a family of full-function server load balancing switches. The IA 1100/1200 acts as an intelligent switch between a network (Internet, Intranet, or Extranet) and a Server Array that provides services to network users.

  • Page 20: 1100 Chassis

    Chapter 1: Features Overview 1100 Chassis The IA 1100 chassis contains 24 10/100BASE-TX ports and 2 1000BASE-SX gigabit ports. No expansion modules are available. Figure 2 shows the front view of an IA 1100. 10/100BASE-TX 1200 Chassis The Internet Appliance 1200 chassis contains eight Gigabit Ethernet (1000Base-SX) ports. The 1200’s configuration is fixed at eight Gigabit ports.

  • Page 21: Session Traffic Management

    • Multiple levels of verification checking: – Server aliveness checking – Session aliveness checking – Application content checking Session Traffic Management The IA 1100/1200 provides the following session traffic management functions: • Wire speed data • Session persistence • Bandwidth allocation or priority assignment based on applications or customer •...
  • Page 22 Chapter 1: Features Overview The following table lists the basic hardware and software specifications for the IA 1100/1200. Table 1. Basic Hardware and Software Specifications Feature Throughput Capacity Routing protocols Bridging and VLAN protocols Media Interface protocols Quality of Service (QoS) RMON Management Port mirroring...

  • Page 23: Bridging

    IA 1100/1200s. To simplify VLAN administration, the IA 1100/1200 supports 802.1q trunk ports, which allow you to use a single port to “trunk” traffic from multiple VLANs to another IA 1100/1200 or switch which supports 802.1q. IP Routing The IA 1100/1200 provides high-speed routing for the Internet Protocol (IP), which is the protocol switching and routing devices use for moving traffic within the Internet and within many corporate intranets.

  • Page 24: Layer-4 Switching

    Chapter 1: Features Overview By default, the IA 1100/1200 uses one MAC address for all interfaces. The IA 1100/1200 can be configured to have a separate MAC address for each IP interface. When the IA 1100/1200 receives a packet whose destination MAC address is one of the IA 1100/1200’s IP interface MAC addresses, the port that received the packet from the network uses information in the module’s L3 lookup tables (or information supplied by the motherboard) to route the packet to its IP destination(s).

  • Page 25: Quality Of Service

    of your organization. You can implement the following types of filters to secure traffic on the IA 1100/1200: • Layer-2 source filters (block bridge traffic based on source MAC address) • Layer-2 destination filters (block bridge traffic based on destination MAC address) •...

  • Page 26: Management Platforms

    Chapter 1: Features Overview Management Platforms You can manage the IA 1100/1200 using the following management platforms: • Command Line Interface (CLI) – An EMACS editor-like interface that accepts typed commands and responds when applicable with messages or tables. You will use the CLI to perform the basic setup procedures and configurations described in Chapter 3 and Chapter 4 of this guide.

  • Page 27: Chapter 2: Hardware Installation

    This chapter provides hardware installation information and procedures in the following sections: • Safety considerations • Hardware specifications • Installing the hardware If the hardware is already installed and you are ready to install the software and perform basic system configuration, see Chapter 3, “Basic System Setup” on page 19. Safety Considerations Read the following safety warnings and product cautions to avoid personal injury or product damage.

  • Page 28: Preventing Equipment Damage

    Chapter 2: Hardware Installation • Before performing any upgrade or installation procedures, ensure that the IA 1100/1200 is powered off. • Never operate the IA 1100/1200 if it becomes wet or the area where it has been installed is wet. Preventing Equipment Damage Observe the precautions listed in this section to prevent accidental damage to the IA 1100/1200 components.

  • Page 29: Installing The Hardware

    Installing the Hardware This section describes how to perform the following tasks: • Verifying your shipment • Installing the chassis (on a tabletop or in an equipment rack) • Attaching console management cables • Attaching port cables Note: Cables that attach to the ports on the IA 1100/1200 are not provided by Cabletron. See Appendix C, “Hardware Specifications”...

  • Page 30: Table-Top Installation

    Chapter 2: Hardware Installation Table-Top Installation You can install the IA 1100/1200 on a tabletop. Select a table that is stable (not wobbly) and is not in an area subject to frequent foot traffic. Remember that you will be attaching numerous cables to the IA 1100/1200. Place the IA 1100/1200 on the table, allowing at least 3”...

  • Page 31: Attaching The Console Management Cables

    the mounting bracket to the bottom of the chassis. (There are three holes for each rack mounting bracket, and three holes in the bottom of the chassis.) Note: Be sure to use the phillips-head screws supplied by Cabletron. If you use screws that are longer than the ones included with your shipment, there is a danger of damaging the IA 1100/1200‘s internal components.

  • Page 32: Connecting To The Dte Port

    When you are ready to begin configuring the IA 1100/1200, use procedures in Chapter 3, “Basic System Setup” on page 19 to power on the switch and boot the software. You will perform initial setup by entering CLI commands on the management console.

  • Page 33: Attaching Port Cables

    Attaching Port Cables IA 1100/1200 ports use standard cables and connectors, as shown below: Port Type 10 Base-T 802.3 100 Base-T 802.3u 1000 Base-SX 802.3z See Appendix C, “Hardware Specifications” on page 55 for cabling and connector specifications. Attaching Cables to Gigabit Ports The 1000Base-SX ports on the Gigabit Modules support multimode fiber (MMF).
  • Page 34 Chapter 2: Hardware Installation Internet Appliance 1100/1200 Getting Started Guide...

  • Page 35: Chapter 3: Basic System Setup

    Basic System Setup This chapter provides the following basic setup procedures: • Powering on and booting the software • Starting the Command Line Interface (CLI) • Setting basic system information • Setting up SNMP community strings • Setting up passwords •...

  • Page 36: Starting The Command Line Interface

    Chapter 3: Basic System Setup related to the phases of the boot sequence. When the software is fully booted, the following message appears on the management console: Press RETURN to activate console... Press Return (or Enter) to activate the CLI on the console. Starting the Command Line Interface To start the Command Line Interface (CLI), power on the system.

  • Page 37: Basic Line Editing Commands

    Note: When you exit Configure mode, the CLI will ask you whether you want to activate the configuration commands you have issued. If you enter yes or y, the configuration commands you issued are placed into effect and the IA 1100/1200’s configuration is changed accordingly.

  • Page 38: Setting Basic System Information

    Chapter 3: Basic System Setup Setting Basic System Information Use the procedure in this section to set the following system information: • System time and date • System name • System location • Contact name (the person to contact regarding this IA 1100/1200) Note: Some of the commands in this procedure accept a string value.
  • Page 39 Here is an example: ia(config)# system set name "ia" ia(config)# system set location "Sunnyvale, CA" ia(config)# system set contact "John Smith" Use the interface add ip command to set the IP address and netmask for the en0 Ethernet interface, as shown in the following example: ia(config)# interface add ip en0 address-netmask 10.50.11.22/16 Note: The en0 interface is automatically created by the system and is reserved for...
  • Page 40 Chapter 3: Basic System Setup Enter yes or y to activate the changes. To display the active configuration, enter the system show active-config command, as shown in the following example: ia# system show active-config Running system configuration: ! Last modified from Console on Mon Jan 19 11:55:35 1998 1 : system set name "ia"...

  • Page 41: Setting Up Snmp Community Strings

    Setting Up SNMP Community Strings To use SNMP to manage the IA 1100/1200, you need to set up an SNMP community on the IA 1100/1200. Otherwise, the IA 1100/1200’s SNMP agent runs in local trap process mode until you disable it using the snmp stop command. In addition, if you want to be able to access the SNMP traps issued by the IA 1100/1200’s SNMP agent, you need to specify the IP address of the target for the SNMP traps.
  • Page 42 Chapter 3: Basic System Setup Here is an example of the commands and output for configuring SNMP and saving the changes. ia# config ia(config)# snmp set community public privilege read-only ia(config)# snmp set target 10.50.11.12 community public ia(config)# save active ia(config)# exit ia# snmp show all SNMP Agent status:...

  • Page 43: Setting Up Passwords

    Remember to enter yes or y when the CLI asks you whether you want to overwrite the Startup configuration. Setting Up Passwords You can password protect CLI access to the IA 1100/1200 by setting up passwords for login access and Enable access. Users who have a login password but not an Enable password can use only the commands available in User mode.

  • Page 44: Setting The Dns Domain Name And Address

    Chapter 3: Basic System Setup Here is an example of the commands in the previous steps: ia(config)# system set password login demo ia(config)# system set password enable demo ia(config)# save active ia# exit ia# system show active-config Running system configuration: ! Last modified from Console on Mon Jan 19 12:12:19 1998 1 : system set name "ia"...
  • Page 45 Use the following command to verify that the IA 1100/1200 can reach the DNS server by pinging the server, as shown in the following example: ia# ping 10.50.11.12 PING 10.50.11.12 (10.50.11.12): 56 data bytes 64 bytes from 10.50.11.12: icmp_seq=0 ttl=255 time=0 ms --- 10.50.11.12 ping statistics --- 1 packets transmitted, 1 packets received, 0% packet loss round-trip min/avg/max = 0/0/0 ms...

  • Page 46: Setting Syslog Parameters

    Chapter 3: Basic System Setup Here is an example of the commands above featuring the addition of two DNS server IP addresses: ia# config ia(config)# system set dns domain "mktg.cabletron.com" ia(config)# system set dns server "10.50.11.12 10.50.12.11" ia(config)# save active Enter the system show dns command to verify the new DNS settings, as shown in the following example: ia# system show dns...
  • Page 47 Use the following procedure to specify the SYSLOG server and the types of messages you want the CLI to log on the server. Ensure that you are in Enable mode by entering the enable command in the CLI. Use the following command to verify that the IA 1100/1200 can reach the SYSLOG server by pinging the server: <IP-addr>...

  • Page 48: Activating Configuration Changes And Saving The Configuration File

    Chapter 3: Basic System Setup Enter the show command to show the commands you just entered. Because you have not activated these configuration changes yet, they are listed in the scratchpad section of the output. Here is an example: ia(config)# show Running system configuration: ! Last modified from Console on Mon Jan 19 12:37:21 1998 1 : interface add ip en0 address-netmask 10.50.11.22/16...

  • Page 49: Activating The Configuration Commands In The Scratchpad

    configuration commands in any order, even when dependencies exist. When you activate the commands in the scratchpad, the IA 1100/1200 sorts out the dependencies and executes the command in the proper sequence. Activating the Configuration Commands in the Scratchpad The configuration commands you have entered using procedures in this chapter are in the Scratchpad but have not yet been activated.

  • Page 50: Viewing The Current Configuration

    Chapter 3: Basic System Setup The new configuration changes are added to the Startup configuration file stored in the IA 1100/1200’s boot flash. Viewing the Current Configuration If you want to view the current configuration: Ensure that you are in Enable mode by entering the enable command in the CLI. Enter the following command to display the status of each command line: system show active-config The CLI displays the active configuration file with the following possible annotations:...

  • Page 51: Chapter 4: Configuration

    This chapter describes the basic steps for configuring the IA 1100/1200 for the following features: • Load balancing • Web caching • IP policy-based routing Configuration of the IA 1100/1200 is performed by entering CLI commands in Configure mode from either the system console or a Telnet session. Refer to Chapter 3, “Basic System Setup”...

  • Page 52: Port Names On The Ia 1100/1200

    Chapter 4: Configuration Port Names on the IA 1100/1200 The term port refers to a physical connector installed in the IA 1100/1200. Each port in the IA is referred to by the type of connector (Ethernet or Gigabit Ethernet) and its location. Figure 6 shows the names of the ports on the IA 1100.

  • Page 53: Configuring Load Balancing

    Configuring Load Balancing Load balancing allows incoming HTTP requests to a company’s website to be distributed across several physical servers. If one server should fail, other servers can pick up the workload. This section shows an example of how to configure load balancing on the IA. The following example shows two physical servers (with IP addresses 10.1.1.2 and 10.1.1.3) that are mapped to a virtual IP address 207.135.89.16 and virtual port number 80.

  • Page 54: Server And Application Verification

    Chapter 4: Configuration Specify interfaces to the VLANs you just created and assign address-netmask values to each interface. The following commands create the interface ‘if-internal’ with the address-netmask 10.1.1.1/24 for the vlan ‘internal’ and the interface ‘if-external’ with the address- netmask 207.135.89.1/24 for the vlan ‘external’: ia(config)# interface create ip if-internal address-netmask 10.1.1.1/24 vlan internal up...
  • Page 55 You can also have the IA verify the content of an application on one or more load balancing servers. For this type of verification, you specify the following: • A string that the IA sends to a single server or to the group of load balancing servers. The string can be a simple command to get a specific HTTP page.

  • Page 56: Configuring Policy-Based Routing

    Chapter 4: Configuration Configuring Policy-Based Routing IP policy-based routing allows you to configure the IA 1100/1200 to route IP packets according to policies that you define. You can define policies that make the most efficient use of your network resources. In the example shown in Figure 9, Internet access is provided for two classes of users: •...
  • Page 57 The following commands create the interfaces ‘std-ras’ (for “standard” customers) on port et. 2.1 and ‘prem-ras’ (for “premium” customers) on port et. 2.2 and assigns them the address-netmask values of 207.86.13.1/24 and 207.86.12.1/24, respectively: ia(config)# interface create ip std-ras address-netmask 207.86.13.1/24 port et. ia(config)# interface create ip prem-ras address-netmask 207.86.12.1/24 port et.2.2 Define an ACL profile that specifies the criteria that IP packets must meet to be...

  • Page 58: Configuring Web Caching

    Chapter 4: Configuration Configuring Web Caching Web caching allows HTTP requests from connected users to Internet sites to be redirected to cached Web objects on local servers. Response time is faster since requests can be handled locally and overall WAN bandwidth usage is reduced. The IA itself does not act as a cache for web objects.
  • Page 59 The following command creates the interface ‘if-internal’ with the address-netmask 207.86.11.1/24 for the vlan ‘twcr’ : ia(config)# interface create ip if-internal address-netmask 207.86.11.1/24 vlan twcr up Note: In the above command, the ‘up’ option enables the interface. Create the cache group (a list of local servers to cache Web objects) that will be applied to each interface.
  • Page 60 Chapter 4: Configuration Internet Appliance 1100/1200 Getting Started Guide...

  • Page 61: Chapter 5: Software Upgrade

    This chapter describes how to upgrade system software and boot PROM software. Upgrading System Image Software The IA 1100/1200 operates using the system image software installed in its internal flash chip. To upgrade the system software and operate using the upgraded image, go through the following procedure: Display the current boot settings by entering the system show version command, as shown in the following example:...

  • Page 62: Loading Boot Prom Software

    Images currently available: ia1000 Use the following command to select the image file the IA 1100/1200 will use the next time you reboot the switch. system image choose Here is an example: ia# system image choose ia1000 Making image ia1000 the active image for next reboot Enter the system image list command to verify the change.
  • Page 63 Note: In this example, the location “pc-flash” indicates that the IA 1100/1200 is set to use the factory-installed software in the motherboard’s internal flash chip. Copy the software upgrade you want to install onto a TFTP server that the IA 1100/1200 can access.
  • Page 64 Chapter 5: Software Upgrade Internet Appliance 1100/1200 Getting Started Guide...

  • Page 65: Appendix A: Troubleshooting

    If you experience difficulty with the basic hardware or software setup procedures in this guide, check the following table to see whether the difficulty you are experiencing is described. If you find a description of the difficulty you are experiencing, try the resolution(s) recommended for the difficulty.
  • Page 66 Appendix A: Troubleshooting If you experience this difficulty Configuration changes do not seem to be taking effect. Configuration changes are not reinstated after a reboot. The IA 1100/1200 is not resolving DNS names. An SNMP manager cannot access the IA 1100/1200. You are unable to ping a certain host.

  • Page 67: Appendix B: Technical Support

    This appendix tells you what to do if you need technical support for your IA. Cabletron offers several important support and service programs that provide high- quality support to our customers. For technical support, first contact your place of purchase. If you need additional assistance, contact Cabletron Systems, Inc. There are several easy ways to reach Cabletron Customer Support and Service.

  • Page 68: Placing A Support Call

    Appendix B: Technical Support To send comments or suggestions concerning this document, contact the Cabletron Systems Technical Writing Department via the following email address: TechWriting@cabletron.com. Make sure to include the document Part Number in the email message. You can also check our home pages on the World Wide Web. •...

  • Page 69: Repair Services

    Repair Services Cabletron offers an out-of-warranty repair service for all our products at our Santa Clara Repair Facility. Products returned for repair will be repaired and returned within 5 working days. A product sent directly to Cabletron Systems, Inc. for repair must first be assigned a Return Material Authorization (RMA) number.
  • Page 70 Appendix B: Technical Support Internet Appliance 1100/1200 Getting Started Guide...

  • Page 71: Appendix C: Hardware Specifications

    This appendix contains the relevant hardware specifications for the Internet Appliance 1100/1200. This section describes the IA 1100/1200’s hardware specifications. Chapter 2, “Hardware Installation” on page 11 in this guide describes how to install the hardware. This section describes the following: •...

  • Page 72: Motherboard Features

    A Reset switch (RST). Use this switch to reboot the IA 1100/1200’s motherboard from the internal boot flash in the event of a system failure. The Reset switch is recessed in the IA 1100/1200’s chassis, so you will have to use a tool like a small allen wrench to activate the switch.

  • Page 73: Ram Memory

    RAM Memory The IA 1100/1200’s motherboard uses 64 megabytes of RAM to hold routing and other tables. To upgrade the amount of memory on the IA 1100/1200, contact your Cabletron representative. Power Supplies The IA 1100/1200 uses two power supplies, each delivering 3.3, 5, and 12 volts DC to the motherboard, internal fans, and other components.

  • Page 74: 1000 Base-Sx Gigabit Ports

    Appendix C: Hardware Specifications 1000 Base-SX Gigabit Ports The IA’s Gigabit (1000Base-SX) Ethernet ports are indexed into groups of two ports each. The ports can operate in full-duplex or half-duplex mode. Each port can be configured as a switched port or a routed port. The ports have short wave (850 nm) lasers and connect to multimode-mode fiber (MMF) cables.
  • Page 75 Table 7. Gigabit Port LEDs Per-port Link Per-port Rx Per-port Tx Per-port AN Internet Appliance 1100/1200 Getting Started Guide Description • Green – indicates that the port hardware detects a cable plugged into the port and a good link is established. •...

  • Page 76: 10/100 Base-Tx Ports

    Appendix C: Hardware Specifications 10/100 Base-TX Ports The IA 1100 10/100BASE-TX Ethernet ports are indexed into groups of eight ports. Each port senses whether it is connected to a 10-Mbps segment or a 100-Mbps segment and automatically configures itself as a 10Base-T or 100Base-TX port. Figure 12 shows the front panel of the 10/100BASE-TX ports.
  • Page 77 Table 9. RJ-45 Connector Pin Assignments Signal (IA 1100/1200 port) TXD (transmit data) TXD (transmit data) RXD (receive data) Unused Unused RXD (receive data) Unused Unused The right hand column pin assignments are for the RJ-45 connector on the IA 1100/1200. Thus, pin 1 (TXD or “transmit data”) must emerge on the management console’s end of the connection as RXD (“receive data”) and so on.

  • Page 78: Leds

    Appendix C: Hardware Specifications LEDs The 10/100BASE-TX ports use the following LEDs. Table 10. 10/100BASE-TX Port LEDs Link Activity Console Management Cables The console cable, supplied with the IA 1100/1200, is a female to female DB-9 crossover cable that has the following pin assignments: Table 11.

  • Page 79: Dte Cable

    DTE Cable Use the RJ-45 10/100Base-TX DTE port (marked “10/100 MGMT” on the IA 1100/1200’s chassis) for Telnet connection from a host on the network. The port is configured for Media Data Interface (MDI). The DTE cable should have the following pin assignments: Table 12.
  • Page 80 Appendix C: Hardware Specifications Internet Appliance 1100/1200 Getting Started Guide...

  • Page 81: Index

    Numerics 10/100BASE-TX ports cable installation 17 overview 60 1000-Mbps port 58 100Base-TX port 60 10Base-T port 60 10Base-T/100Base-TX management port 56 802.1p 9 access modes Configure mode 20 Enable mode 20 User mode 20 active configuration 32 address-based bridging 7 application switching 8 baud rate 55 BGP-4 8...
  • Page 82 19 installation 19, 45 overview 4 specifications 12 Startup configuration 32 statistics 9 subnet VLANs 7 SYS switch 56 SYSLOG, setting up 30 system location, setting 22 system name, setting 22 system software booting 45 loading 45 system switch 56...
