SmartCell 6A000 and SNMP
The local subtree contains MIB objects defined for Release 1.1, which implements the SNMP Structure of
Management Information (SMI). Beginning with this release, ZeitNet MIBs are defined using both SNMPv1 SMI and
SNMPv2. The SmartCell 6A000 MIB files also support the AToM2-MIB and those of the pre-conformance standard
of the ATM Forum, which appear on the MIB tree as in Figure B-2:
atmForum
353
Figure B-2 ZeitNet Private MIBs
In Figure B-2, the ZeitNet proprietary group is identified by 1.3.6.1.4.1.1295; its subgroup, called znProducts, is
identified by 1; and the first variable is znManagedObjects with a value of 2. Therefore, the variable
znManagedObjects has a value of 1.3.6.1.4.1.1295.2.
B.2.1

Interpreting the Object Identifier

In this guide, each group of ZeitNet MIB variables is accompanied by an illustration that indicates the specific object
identifier for each variable.

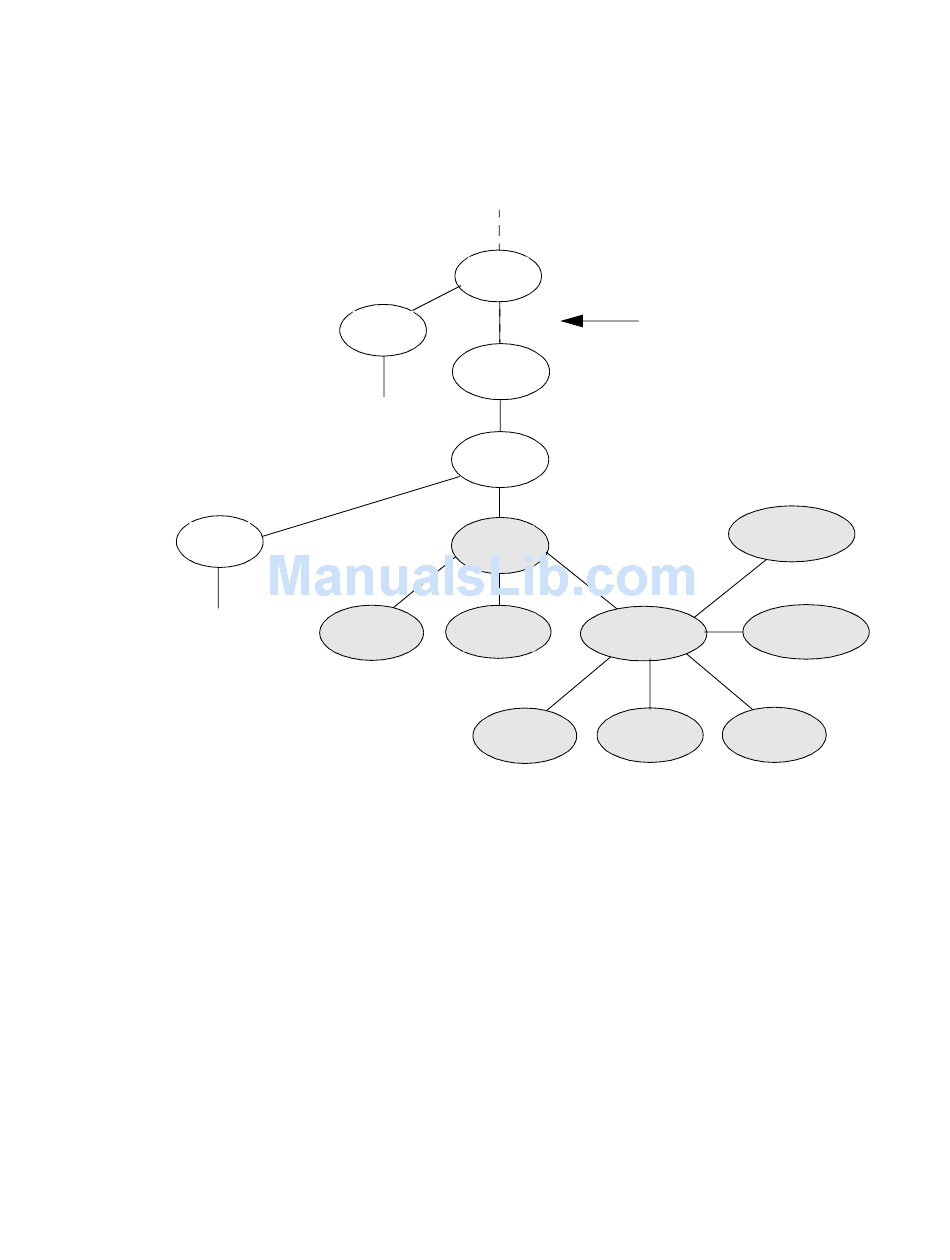

In Figure B-3, the object identifier 1.3.6.1.4.1.1295.2.200 at the top of the illustration indicates the labeled nodes. The
last value is the number of the ZeitNet MIB variable. For example, the MIB variable znIpAtmClientLisSubnetMask is
indicated by the number 1.1.1.3.
MIB
1
atomMIB
37
Private
4
enterprise
1
ZeitNet
1295
znCommonMIB znProducts
199 1
znCommonObjs
Label from the root to
this point is 1.3.6.1
znManagedObjects
2
znTrapObjs
301
300
SmartCell 6A000 User Guide Appendix B-3
ZeitNet Proprietary MIB
znSwitchObjedcts
3333
znAdminPolicyVal
202
znIpAtm
200
