Switch Installation and Setup
Plug the other end of the UTP cable into the SmartCell 6A000 female RJ-45 jack labeled Terminal,

located on the front panel (see Figure 2-5).
Connect the switch to your network by plugging a UTP cable into the SmartCell 6A000 female

RJ-45 jack labeled Ethernet, located at the lower right of the switch's front panel (see Figure 2-5).
Terminal

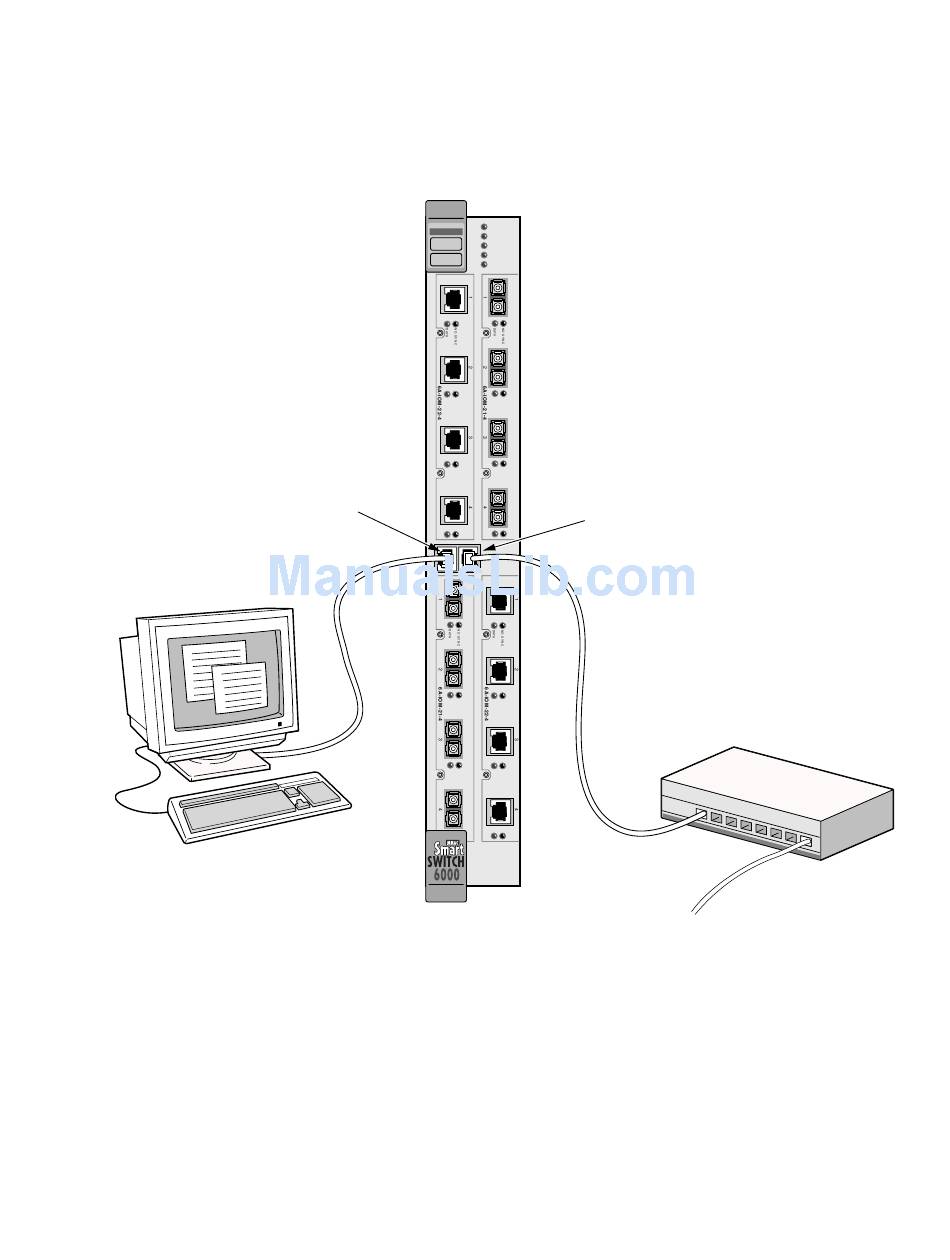

Figure 2-5 6A000 console and network connections
Start the dumb terminal or PC and its terminal emulation software.

As soon as power is applied to the SmartCell 6A000, the module emits a series of diagnostic

messages. If you inserted the module into a chassis that was turned off, turn it on now to see the
diagnostics. If you inserted the module into a chassis that was turned on, press the Reset switch to
see the diagnostics.
After the diagnostics are finished, the switch prompts for a password. Enter the default password,

"admin."
ATM
Terminal
RJ-45
Port
FAIL
S
Y
STATUS
S
POWER
T
RX ENET
E
M TX ENET
Ethernet
RJ-45
Port
Configuring the Switch
Ethernet
Hub
SmartCell 6A000 User Guide 2-7
