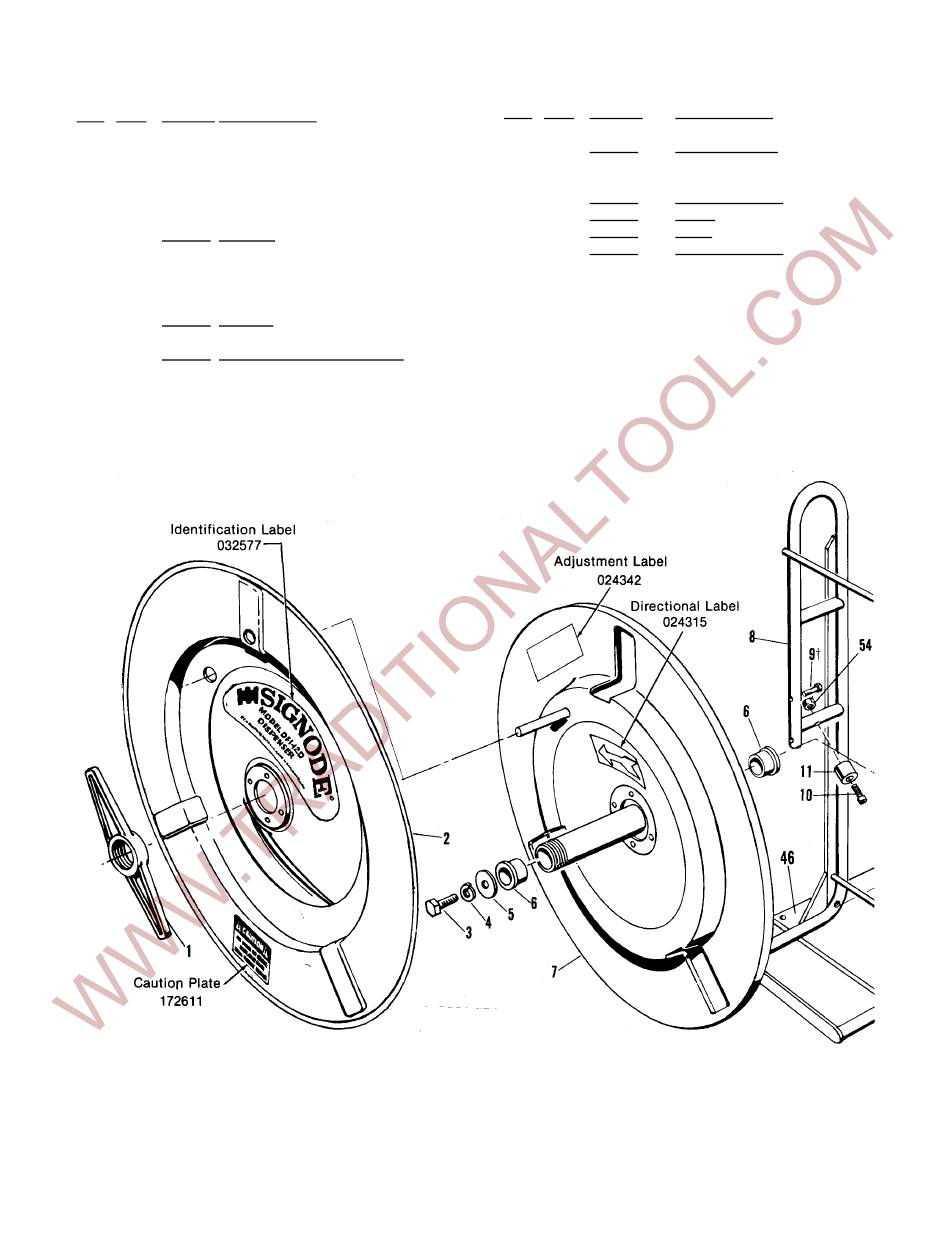

PARTS LIST, DF1-12D DISPENSER
KEY QTY PART # DESCRIPTION
1 1 067222 Nut
2 1 024321 Reel disc assy.
3 2 009094 HHCS, 1/2-13 x 1
4 2 002434 Spring lock washer, 1/2
5 2 024382 Washer, 7/16 std.
6 4 024352 Bushing
7 1 024380 Back disc assy.
8 1 024327 Pipe stand assy.
9 4 024357 HHCS, 3/8-16 x 1 3/4
10 2 009042 SHCS, 1/4-20 x 1
11 2 024301 Bumper
12 1 024325 Main plate assy.
13 1 009839 Flat pt. SSS, 5/16-24 x 1/2
14 1 024336 Spring housing
15 2 002187 Spring lock washer, 1/4
16 2 004234 HHCS, 1/4-20 x 3/4
17 1 024220 SHCS, 5/16-18 x 5/8
KEY QTY PART #
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
48
For Parts & Service 1-877-862-6699
DESCRIPTION
1 024337 Spring plunger
1 024381 Spring
1 024338 Spring screw
2 024349 Connecting link
1 024314 Chain
1 024377 Shaft
1 002399 Drum arm assy.
1 002805 Cotter pin, 1/8 x 3/4
1 004192 Washer, 1/2 SAE
1 024328 Pivot
1 024311 Brake link
1 024350 ShS, 3/8 x 3/4
1 024353 Jam nut, 3/8-16
1 024356 SHSS, 10-24 x 3/8 cup point.
1 024302 Adjustment knob
1 024344 Spring
1 007453 Washer, 3/8 plain
