Recommended Spare Parts - Signode MCD-710 Operation, Parts And Safety Manual

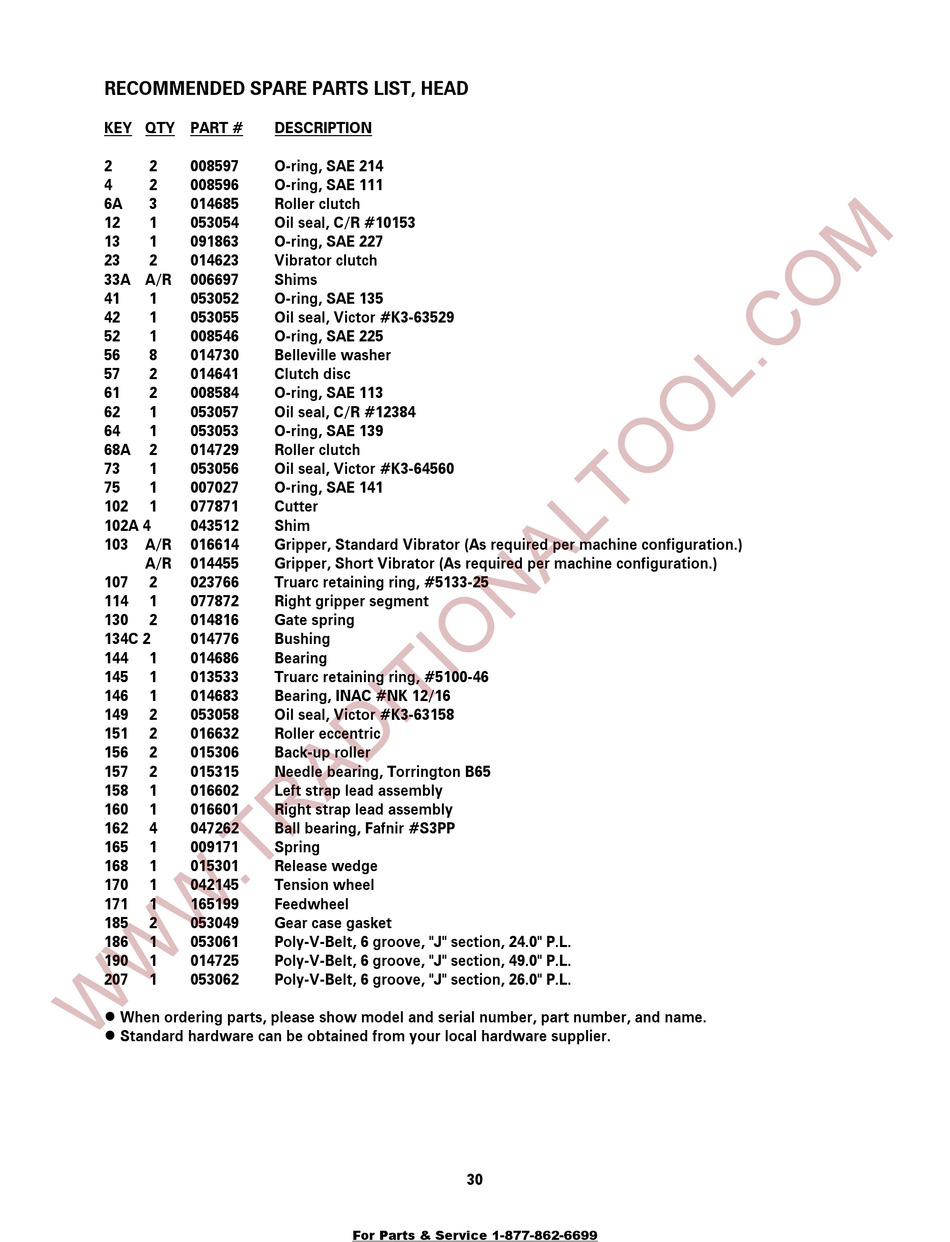

RECOMMENDED SPARE PARTS LIST, HEAD
KEY QTY PART # DESCRIPTION
2 2 008597 O-ring, SAE 214
4 2 008596 O-ring, SAE 111
6A 3 014685 Roller clutch
12 1 053054 Oil seal, C/R #10153
13 1 091863 O-ring, SAE 227
23 2 014623 Vibrator clutch
33A A/R 006697 Shims
41 1 053052 O-ring, SAE 135
42 1 053055 Oil seal, Victor #K3-63529
52 1 008546 O-ring, SAE 225
56 8 014730 Belleville washer
57 2 014641 Clutch disc
61 2 008584 O-ring, SAE 113
62 1 053057 Oil seal, C/R #12384
64 1 053053 O-ring, SAE 139
68A 2 014729 Roller clutch
73 1 053056 Oil seal, Victor #K3-64560
75 1 007027 O-ring, SAE 141
102 1 077871 Cutter
102A 4 043512 Shim
103 A/R 016614 Gripper, Standard Vibrator (As required per machine configuration.)
A/R 014455 Gripper, Short Vibrator (As required per machine configuration.)
107 2 023766 Truarc retaining ring, #5133-25
114 1 077872 Right gripper segment
130 2 014816 Gate spring
134C 2 014776 Bushing
144 1 014686 Bearing
145 1 013533 Truarc retaining ring, #5100-46
146 1 014683 Bearing, INAC #NK 12/16
149 2 053058 Oil seal, Victor #K3-63158
151 2 016632 Roller eccentric
156 2 015306 Back-up roller
157 2 015315 Needle bearing, Torrington B65
158 1 016602 Left strap lead assembly
160 1 016601 Right strap lead assembly
162 4 047262 Ball bearing, Fafnir #S3PP
165 1 009171 Spring
168 1 015301 Release wedge
170 1 042145 Tension wheel
171 1 165199 Feedwheel
185 2 053049 Gear case gasket
186 1 053061 Poly-V-Belt, 6 groove, "J" section, 24.0" P.L.
190 1 014725 Poly-V-Belt, 6 groove, "J" section, 49.0" P.L.
207 1 053062 Poly-V-Belt, 6 groove, "J" section, 26.0" P.L.
! When ordering parts, please show model and serial number, part number, and name.
! Standard hardware can be obtained from your local hardware supplier.
30
For Parts & Service 1-877-862-6699
