Signode MCD-710 Operation, Parts And Safety Manual page 20

PARTS LIST, CONTINUED
STRAP TRANSPORT MECHANISM
KEY QTY PART # DESCRIPTION
36 1 009041 SHCS, 1/4-20 x 3/4
149 2 053058 Oil seal,
Victor #K3-63158
150 2 014837 Bearing, Torrington
BH-812
151 2 016632 Roller eccentric
152 1 053050 Retainer plate
153 1 016608 Lower strap guide
154 1 005768 Roll pin, 3/16 x 1/2
155 1 053051 Inner side plate
156 2 015306 Backup roller
157 2 015315 Needle bearing,
Torrington B-65
158 1 016602 LH strap lead ass'y
159 1 016610 Drop out arm
160 1 016601 RH strap lead ass'y
161 1 014522 Dowel
162 4 047262 Ball bearing,
Fafnir #S3NPP8
163A 1 432507 Upper strap guide,
Standard vibrator
163B 1 042775 Upper strap guide, Short
vibrator
163C 1 005616 Roll pin
164 1 015317 Outer side plate
165 1 009171 Spring
166 1 074687 Eccentric arm, RH
167 1 074688 Eccentric arm, LH
168 1 015301 Release wedge
169 1 008837 Roll pin, 1/8 x 9/16
170 1 042145 Tension wheel
171 1 165199 Feedwheel
172 1 016607 Short entry guide
173 1 016609 Long entry guide
174 1 023027 Spacer
175 2 016618 Solenoid link
176 1 015313 Spring
177 7 074612 SHCS, #10-24 x 1 1/2
178 1 431816 Solenoid assy
179 3 009397 SHCS, #10-24 x 1/2
180 1 014693 Solenoid cover
181 1 015302 Solenoid bracket
181A 1 071646 Grease fitting
182 4 023099 BHCS, #10-24 x 3/8
291 1 056006 Gate, LH
292 1 056007 Gate, RH
KEY QTY PART # DESCRIPTION
294
295
296
297
299
300
301
302
303
304
305
306
307
308
20
For Parts & Service 1-877-862-6699
4 002164 Cotter pin, 1/16 X 1/2
4 009392 Washer
4 009271 Gate spring
2 014897 Chute pin
1 070059 Side guide, LH (short)
1 070063 Side giude, RH (short)
1 008738 SHCS, 10-24 x 1 1/4
4 072432 Gate spring
2 072400 Spring retainer
2 013856 Flexlock nut, 10-24
1 015321 SHCS, 10-24 x 1 3/4
2 040460 Spring retainer
1 254952 Left gate
1 254953 Right gate

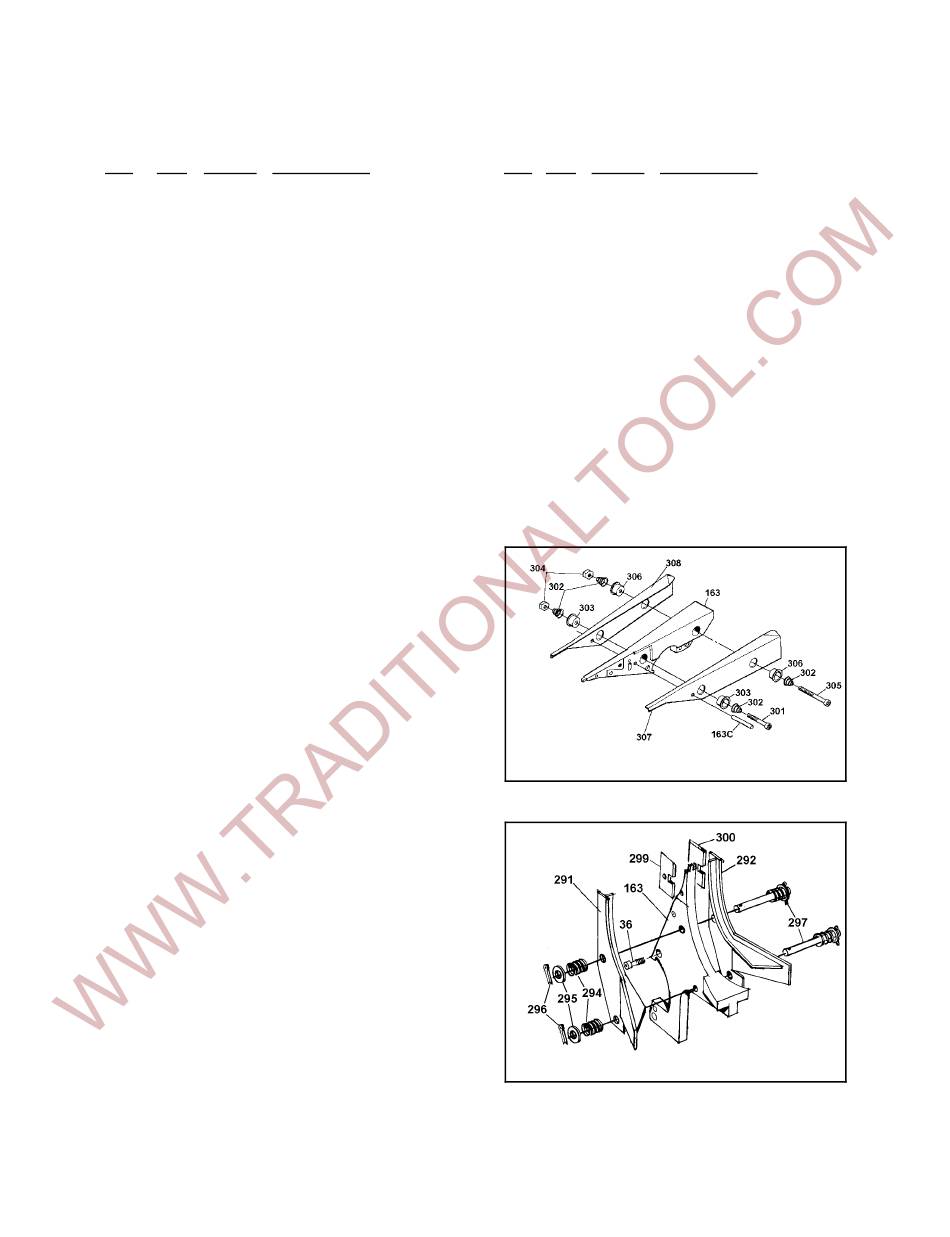

STANDARD VIBRATOR
SHORT VIBRATOR
