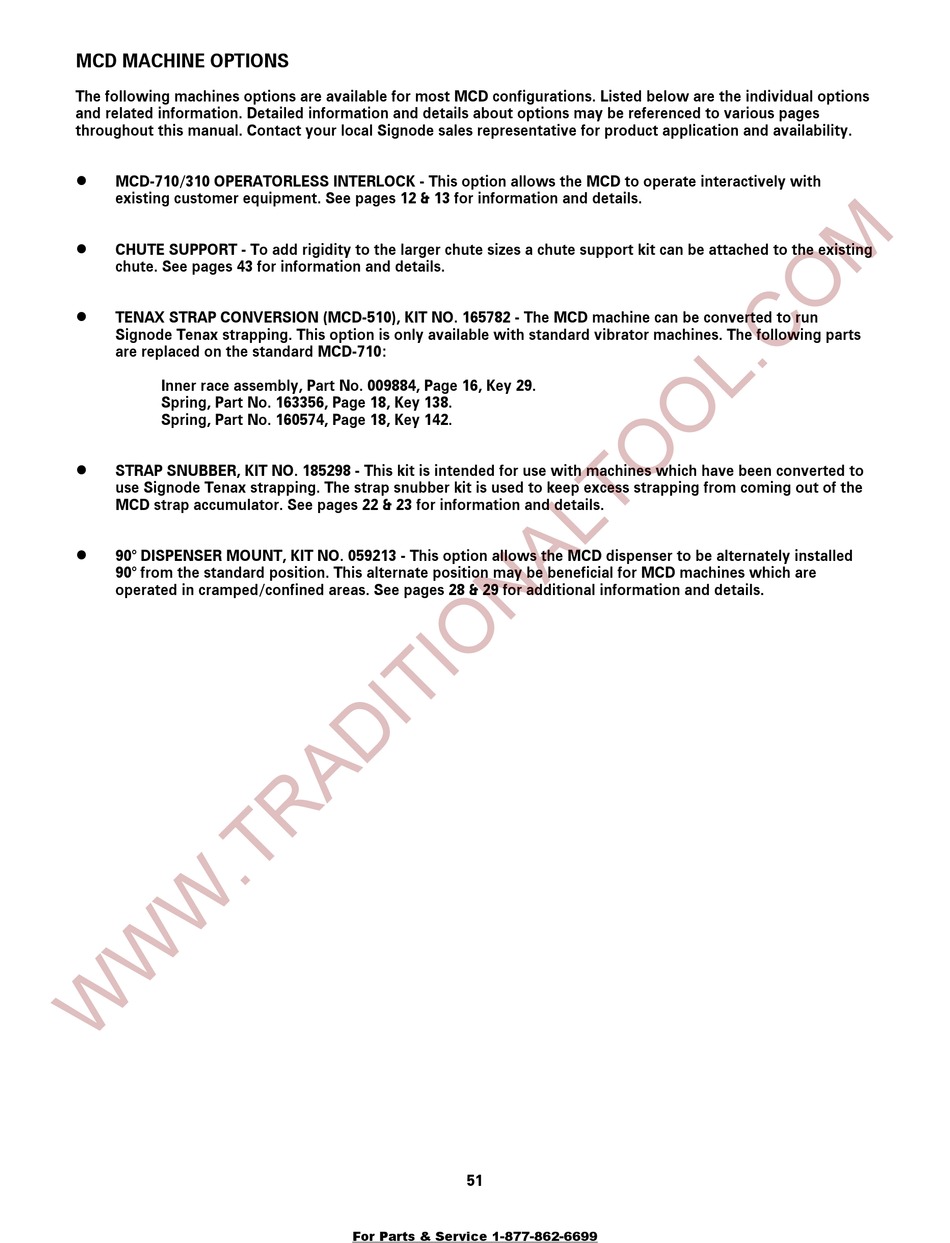

MCD MACHINE OPTIONS
The following machines options are available for most MCD configurations. Listed below are the individual options
and related information. Detailed information and details about options may be referenced to various pages
throughout this manual. Contact your local Signode sales representative for product application and availability.
! MCD-710/310 OPERATORLESS INTERLOCK - This option allows the MCD to operate interactively with
existing customer equipment. See pages 12 & 13 for information and details.
CHUTE SUPPORT - To add rigidity to the larger chute sizes a chute support kit can be attached to the existing
!
chute. See pages 43 for information and details.
TENAX STRAP CONVERSION (MCD-510), KIT NO. 165782 - The MCD machine can be converted to run
!
Signode Tenax strapping. This option is only available with standard vibrator machines. The following parts
are replaced on the standard MCD-710:
Inner race assembly, Part No. 009884, Page 16, Key 29.
Spring, Part No. 163356, Page 18, Key 138.
Spring, Part No. 160574, Page 18, Key 142.
STRAP SNUBBER, KIT NO. 185298 - This kit is intended for use with machines which have been converted to
!
use Signode Tenax strapping. The strap snubber kit is used to keep excess strapping from coming out of the
MCD strap accumulator. See pages 22 & 23 for information and details.
90° DISPENSER MOUNT, KIT NO. 059213 - This option allows the MCD dispenser to be alternately installed
!
90° from the standard position. This alternate position may be beneficial for MCD machines which are
operated in cramped/confined areas. See pages 28 & 29 for additional information and details.
51
