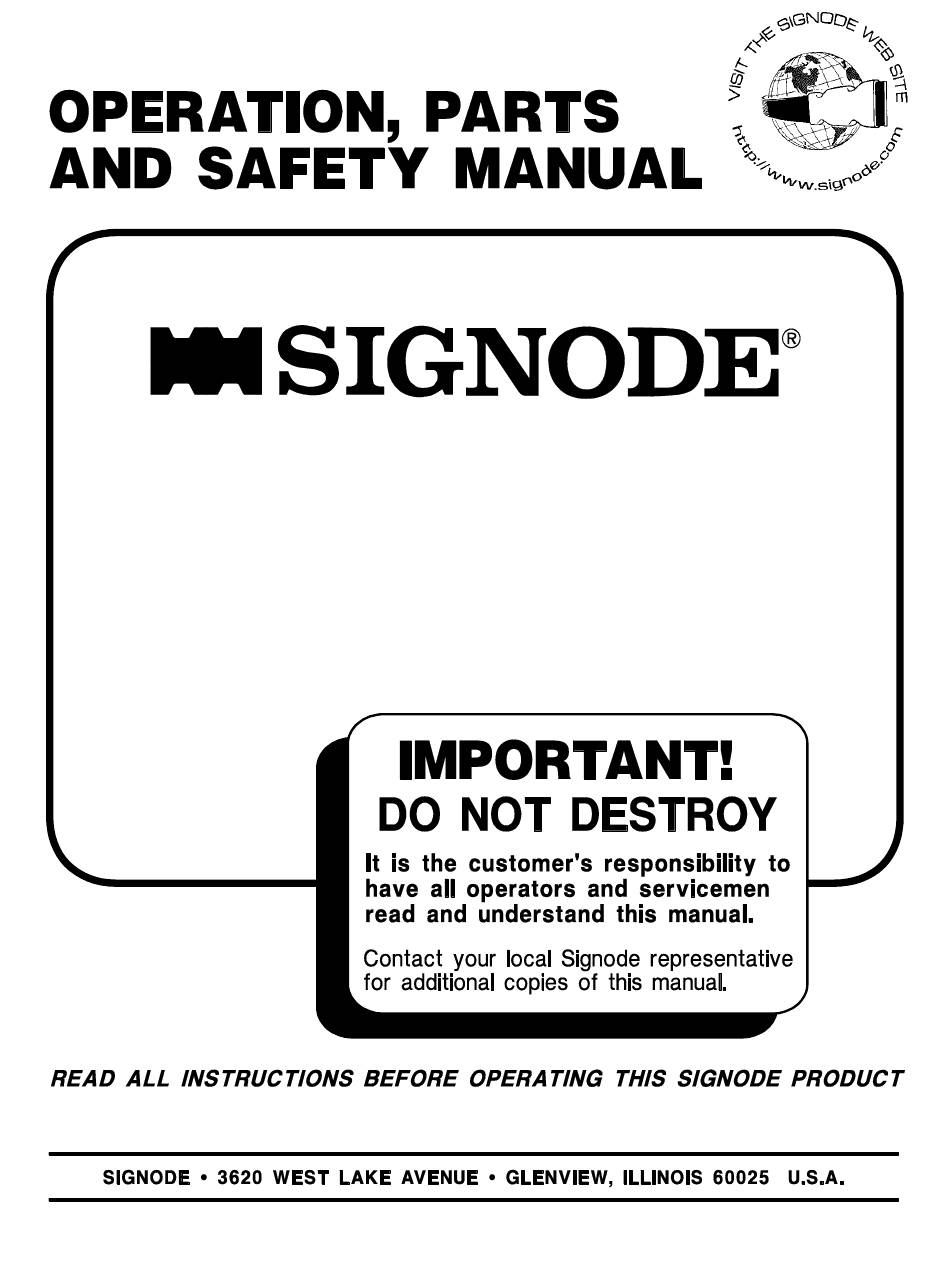

- Page 1 AL-12/38 COMBINATION STRAPPING TOOLS...
-
Page 2: Fall Hazard
TRAINING This tool must not be used by persons not properly trained in its use. Be certain that you receive proper training from your employer. If you have any questions contact your Signode Representative. EYE INJURY HAZARD Failure to wear safety glasses with side shields can result in severe eye injury or blindness. -
Page 3: Cutting Tensioned Strap
Use correct Signode products for your application. If you need help contact your Signode Representative. Signode tools and machines are designed and warranted to work together with Signode strapping and seals. Use of non-Signode strap and seals and/or manufactured or specified replacement parts may result in strap breakage or joint separation while applying strapping to a load or during normal shipping and handling. -
Page 4: Specifications
Signode tools and machines are designed Tool Parts Removal, Replacement and Adjustments and warranted to work together with Signode strapping and seals. Use of non- Signode strap and seals and/or manufactured or specified replacement parts may result in strap breakage or joint... - Page 5 OPERATING INSTRUCTIONS Wear safety glasses which conform to ANSI Standard Z87.1 or EN 166. Stand to one side of the strap while tensioning. Make sure all bystanders are clear before proceeding. Failure to follow the above could result in serious personal injury. LOADING SEALS To load seals, raise the seal pad to the top of the magazine and insert a stack of seals through the wide opening in the side of the seal magazine.
- Page 6 OPERATING INSTRUCTIONS, Continued 4. Return the sealer handle to its original position. At the same time pull the tensioner handle all the way back to disengage the feedwheel. The tool can be removed from the tensioned strap by swinging the rear of the tool to the operator's left.
-
Page 7: Parts List
PARTS LIST KEY QTY. PART # DESCRIPTION KEY QTY. PART # DESCRIPTION 009041 SHCS, 1/4-20 x 3/4 006787 Roll pin, 3/16 x 1 008845 SHCS, 5/16-18 x 7/8 023347 Ejector arm spring 005197 Roll pin, 5/32 x 11/16 023343 Ejector lever 007631 Roll pin, 1/8 x 5/8 023348... - Page 8 * Use Loctite #242. ** Not required for AL-12 tool.
- Page 9 PART ADJUSTMENT, REMOVAL & REPLACEMENT REFER TO PAGES 7 AND 8 FOR ADDITIONAL INFORMATION DISASSEMBLY OF TOOL: Remove the seals from the magazine and the sealer mechanism. To remove both units loosen the cutter adjustment screw (33) and remove the top and bottom cap screws in the sealer frame (1 and 2).
-
Page 10: Replacing The Feedwheel
PART ADJUSTMENT, REMOVAL & REPLACEMENT, Continued REFER TO PAGES 7 AND 8 FOR ADDITIONAL INFORMATION REASSEMBLE THE EJECTOR LEVER (46): Insert the ejector (48) into the cutter block (52) slot, hold the gripper lever (35) down and slide the ejector lever (46) into position. Start the ejector arm pin (42) through the left side of the ejector lever (46) and magazine. - Page 12 Signode reserves the right to replace any tool which proves not to operate per functional specifications with a new or like-new tool of the same model if in Signode's judgement such replacement is appropriate. Any new replacement tool provided to an owner will carry a full sixty (60) day warranty. Any warranty repaired tool or like-new replacement tool will carry a warranty for the balance of the time remaining on the initial sixty (60) day warranty.
