DF1-12D CONVERSION INSTRUCTIONS

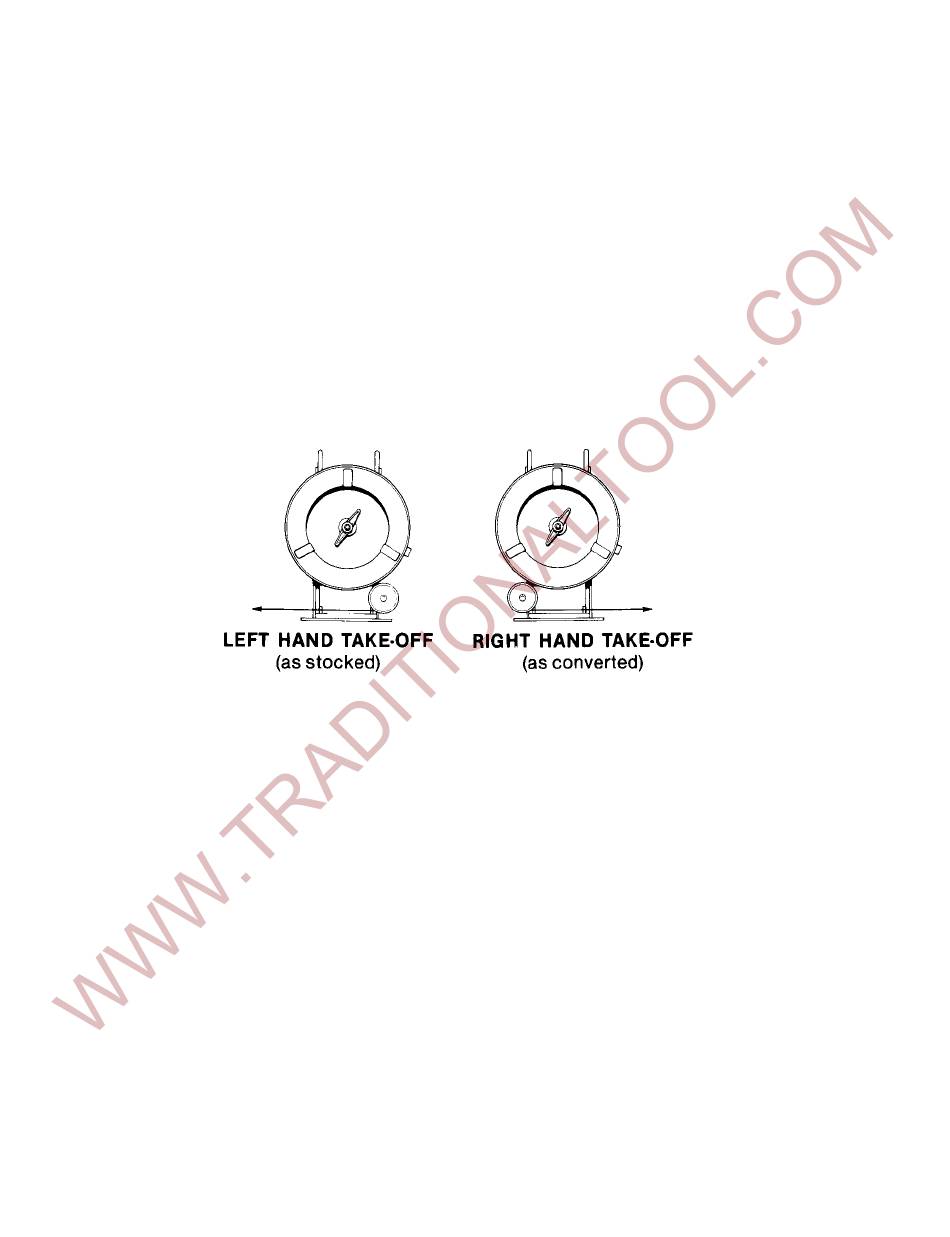

LEFT HAND STRAP PAY-OFF
To convert the DF1-12D to pay-off strap from the left hand side, follow the steps below:
1. Transfer the stop bumper (11) to the other side of the frame.
2. Remove the mounting screw (39) then carefully remove mounting screws (16) and connecting link (21). Move
the spring housing to the alternate position.
3. Move the brake linkage parts to the opposite side and resecure in place with the mounting screw (39).
4. Adjust the brake by following the adjustment instructions in this section.
5. Move the guide pins (47) to the opposite side of the drum on the arm assembly (24).
6. To avoid confusion when threading the strap, remove the directional arrow.
Note: An application of light machine oil to all moving parts at a frequent interval will result in ease of
operation and provide longer service.
