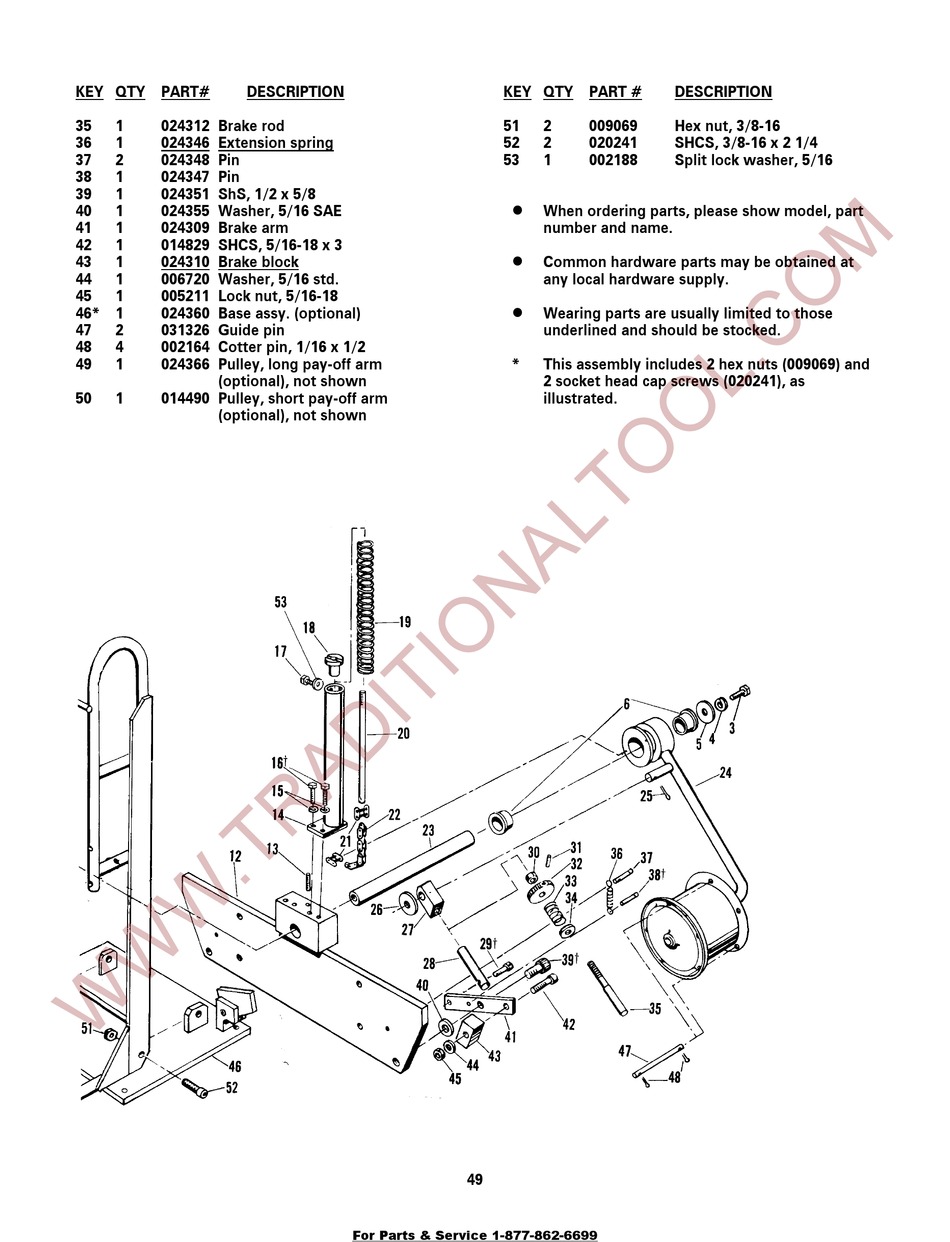

Signode MCD-710 Operation, Parts And Safety Manual page 49

KEY QTY PART# DESCRIPTION
35 1 024312 Brake rod
36 1 024346 Extension spring
37 2 024348 Pin
38 1 024347 Pin
39 1 024351 ShS, 1/2 x 5/8
40 1 024355 Washer, 5/16 SAE
41 1 024309 Brake arm
42 1 014829 SHCS, 5/16-18 x 3
43 1 024310 Brake block
44 1 006720 Washer, 5/16 std.
45 1 005211 Lock nut, 5/16-18
46* 1 024360 Base assy. (optional)
47 2 031326 Guide pin
48 4 002164 Cotter pin, 1/16 x 1/2
49 1 024366 Pulley, long pay-off arm
(optional), not shown
50 1 014490 Pulley, short pay-off arm
(optional), not shown
KEY QTY PART #
51
52
53
!
!
!
*
49
For Parts & Service 1-877-862-6699
DESCRIPTION
2 009069 Hex nut, 3/8-16
2 020241 SHCS, 3/8-16 x 2 1/4
1 002188 Split lock washer, 5/16
When ordering parts, please show model, part
number and name.
Common hardware parts may be obtained at
any local hardware supply.
Wearing parts are usually limited to those
underlined and should be stocked.
This assembly includes 2 hex nuts (009069) and
2 socket head cap screws (020241), as
illustrated.
