Signode MCD-710 Operation, Parts And Safety Manual page 23

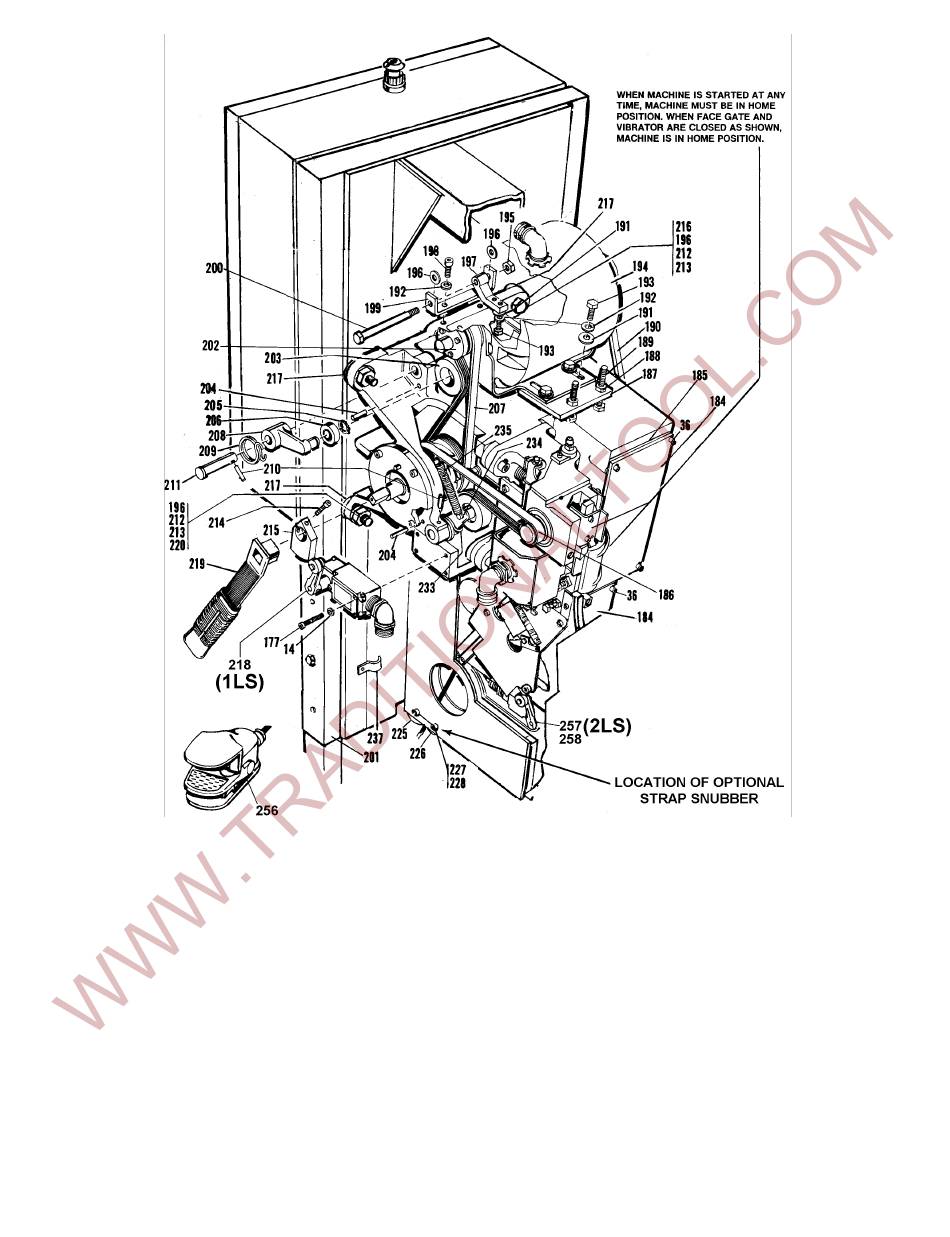

PART REMOVAL & REPLACEMENT - DRIVE BELT
1. Remove left cover (276).
2. Remove arm (218) from the 1LS micro-switch.
3. Remove switch cam (215) from the cam shaft end.
4. Remove four socket head cap screws (37) from cam shaft cover (33).
5. Thread two socket head cap screws into the tapped holes of the shaft cover and tighten uniformly
until cover comes off. If ball bearing (31) does not come off with cover, use a bearing puller.
6. Slip belt (186) off clutch. Pull off outer half of vibrator clutch assembly (23,29) from the cam shaft.
Shaft must be centered for clutch to clear opening. Remove old belt.
7. Reassemble, making sure that cover roll pins (34) engage slots in inner race (29). Slot marked X must
be in 11 o'clock position if performing this procedure with the head removed from the machine and in
the service position as shown.
8. Set micro-switch (1LS) for proper operation - refer to following page.
NOTE: If replacing belts on an MCD
head in the machine, the slot marked
X will be in the 2 o'clock position.
23
