Signode MCD-710 Operation, Parts And Safety Manual page 22

PARTS LIST, CONTINUED
EXTERNAL ASSEMBLY
KEY QTY. PART NO. DESCRIPTION
184 2 014698 Gear cover
185 2 053049 Gasket gear cover
186 1 053061 Poly-V-Belt, 6 groove,
"J" section, 24.0" P.L.
187 1 014793 Motor plate
188 2 071836 Hex jam nut, 5/16-18
189 2 028976 Square HSS, 5/16-18 x 1
3/4
190 1 014725 Poly-V-Belt, 6 groove,
"J" section, 49.0" P.L.
191 3 001250 Flat washer, 5/16
192 7 002188 Lockwasher, 5/16
193 7 006366 HHCS, 5/16-18 x 3/4
194 1 431992 MCD Motor Assy,
208/230/460V,
3 phase, 50/60 Hz.,
1 059316 MCD Motor,
575V, 60Hz (Optional)
195 21 009189 Locknut, 3/8-16
196 2 007453 Flat washer, 3/8
197 2 014794 Pivot arm
198 2 008845 SHCS, 5/16-18 x 7/8
199 1 014779 Motor bracket
200 1 014796 HHCS, 3/8-16 x 5
201 1 014945 Frame, short
1 014935 Frame, standard
202 2 014723 Motor sheave, 60 Hz
2 056072 Motor sheave, 50 Hz
203 2 014788 Idler wheel
204 2 010019 Roll pin, 1/4 x 1 1/8
205 2 014791 Truarc, #5100-50
206 2 020142 Bearing, Fafnir S5PP
207 1 053062 Poly-V-Belt, 6 groove,
"J" section, 26.0" P.L.
208 2 014790 Idler link
209 2 014795 Idler spring
210 2 006787 Roll pin, 3/16 x 1
211 2 014792 Idler pivot
212 4 009069 Hex nut, 3/8-16
213 4 006243 Lockwasher, 3/8
214 2 008738 SHCS, #10-24 x 1 1/4
215 1 014737 Switch cam
216 2 009092 HHCS, 3/8-16 x 1 1/2
217 4 014462 Spacer, Short only
218 1 431865 1LS Switch assy
219 1 014886 Wrench assy, packaged
loose
220 2 014896 HHCS, 3/8-16 x 4
225 1 014936 Rear roller
226 1 014937 Front roller
KEY QTY. PART NO
227
228
233
234
235
237
256
257
258

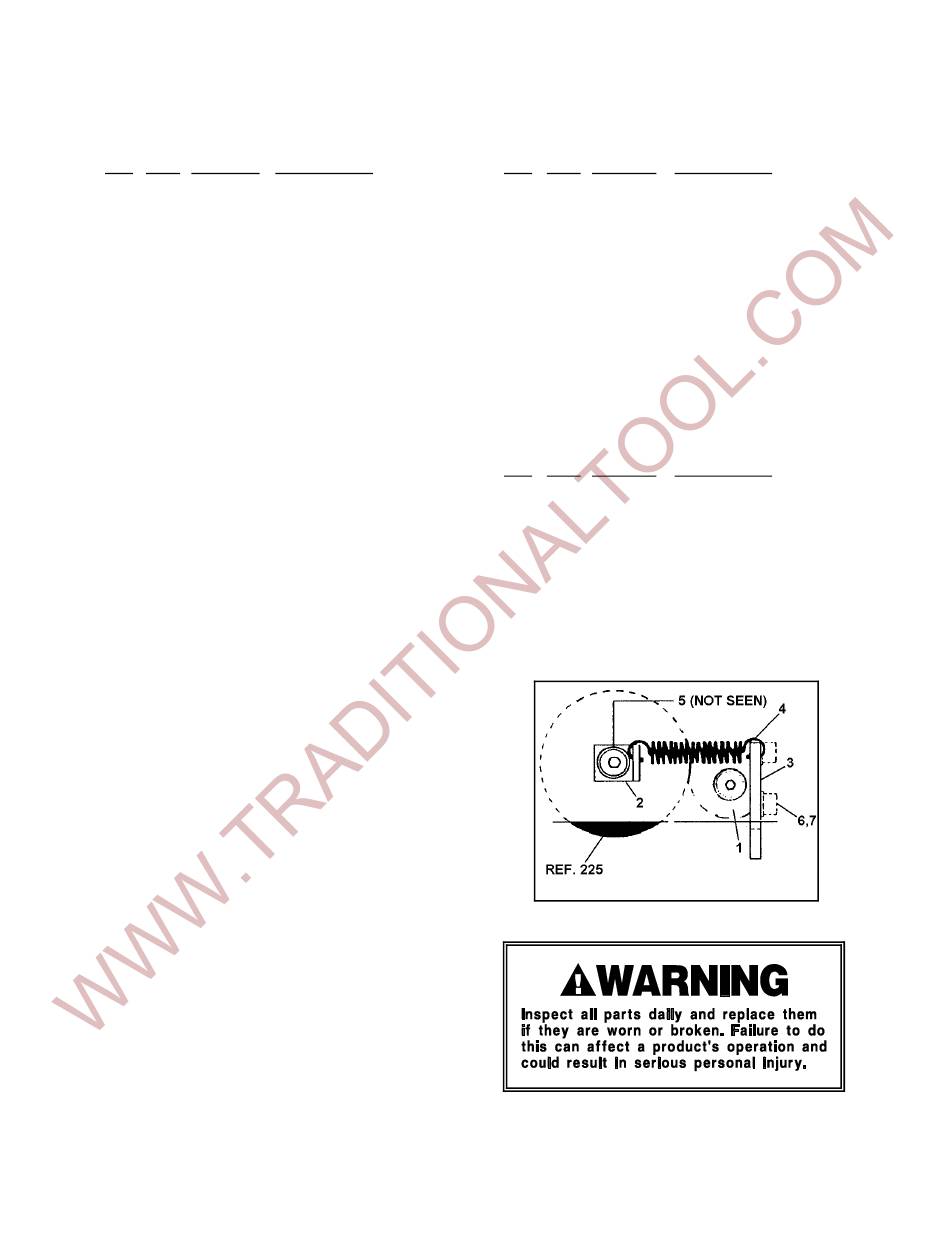

OPTIONAL STRAP SNUBBER FOR USE WITH
TENAX STRAP ONLY. Kit No. 185298
KEY QTY. PART NO
1
2
3
4
5
6
7
22
For Parts & Service 1-877-862-6699
DESCRIPTION
2 023708 Socket head shoulder
screw, 3/8 x 1
2 072132 Locknut (thin) 5/16-18
1 075615 Washer
1 016363 Groove pin
1 016361 Spring
1 071943 Jiffy clamp
1 431695 Foot switch
1 431993 2LS Switch assy
1 431999 Spring Kit for 2LS
DESCRIPTION
1 185311 Snubber
1 185312 Spring tab
1 185313 Lock lever
1 014804 Spring, Lee
#LE-031D-2-MW
1 013862 Oilite bushing
1 009397 SHCS, #10-24
2 004238 Lock washer, #10
OPTIONAL STRAP SNUBBER
