Signode MCD-710 Operation, Parts And Safety Manual page 19

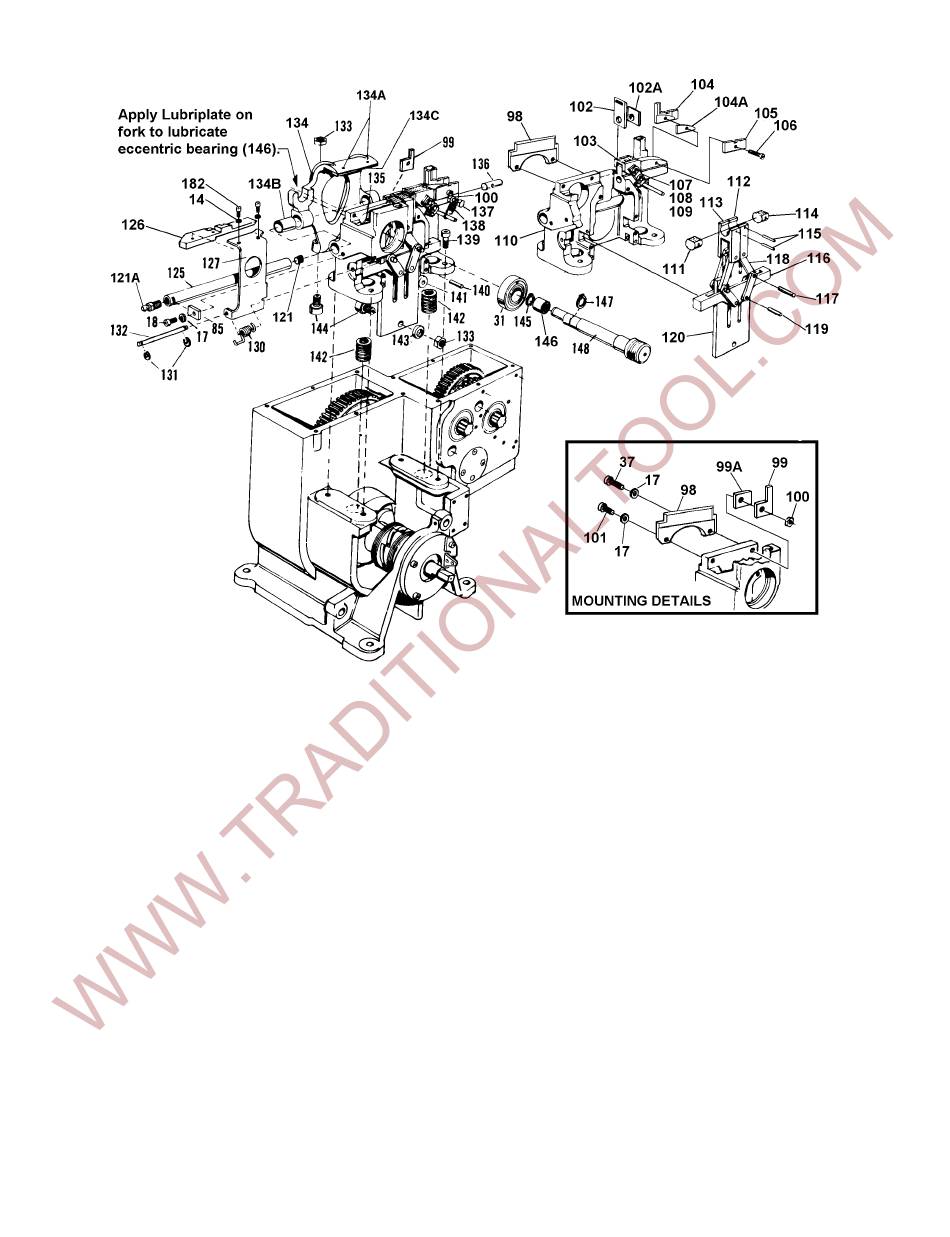

PART REMOVAL & REPLACEMENT - VIBRATOR (134), SOLENOID GRIPPER (103), AND GRIPPER
SEGMENTS (111 AND 114).
1. Remove right cover (275) and grease fitting from vibrator shaft (125).
2. Remove vibrator shaft keeper (85).
3. Remove eccentric bearing (146).
4. Slide shaft out as far as possible. Vibrator is now free and can be lifted out. Gripper segments are
accessible after removing vibrator and can be removed after driving out two roll pins (115). Solenoid
gripper is also exposed and can be easily removed.
PART REMOVAL & REPLACEMENT - CUTTER (102)
1. Turn cam shaft until vibrator opens.
2. Remove two socket head cap screws (128).
3. Remove solenoid bracket (181). Do not disturb release wedge (168) or wedge pins (117).
4. Remove two button head socket screws (182) and solenoid cover (180).
5. With a magnet, remove two link pins (119) from grip carriages (112 and 113). Grip carriages can now be
removed, giving access to cutter.
6. Replace cutter. Shim (102A) as required to obtain .003" clearance.
7. Reassemble, making sure rear links (118) are engaged when replacing link pins.
PART REMOVAL & REPLACEMENT - MICRO-SWITCH ADJUSTMENT
1. DROP-OUT ARM SWITCH (2LS) - Switch roller must ride against drop-out arm (159) when drop-out arm
is fully closed. Switch must trip before drop-out arm is fully open.
2. CAM SHAFT SWITCH (1LS) - Switch must be set to trip as soon as machine is in home position.
