Designing Labels Using LDS Chapter 4
Feed Direction
4" PRINT HEAD
CMX
CMY
YB
XB
X beginning
This is the
origin; 1,1
Y beginning

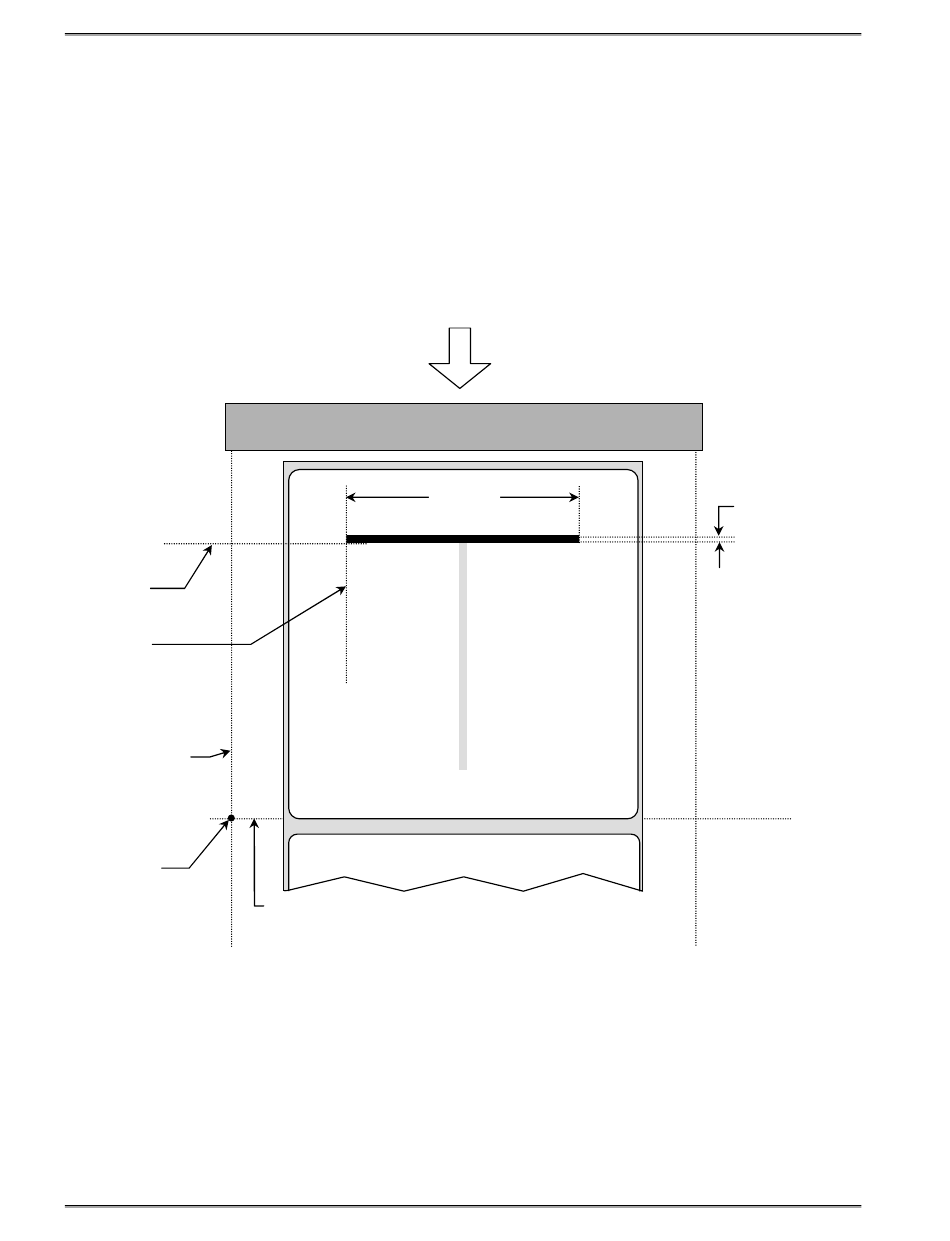

Figure 4-6 Label Format Line Draw
TSN (Text String Number) The TSN parameter may point to any valid text string but it is a
good idea to always use "1" to make trouble-shooting formats easier. The text string that
the TSN is referencing must contain at least one character in order for a line to print
properly. "Line" was used in the example to clearly define the label format fields that contain
line values. However, it could have simply been one character such as a period "."
4-20 428LT Operator's Manual - 880040-0200
