Li g ht Ac t ivit y
PWR Solid blue
WAN Solid blue
Access Point Quick flashing blue light and a pause.
WPS
Slow flashing blue light.
Repeater Slow flashing blue light and a pause
WPS

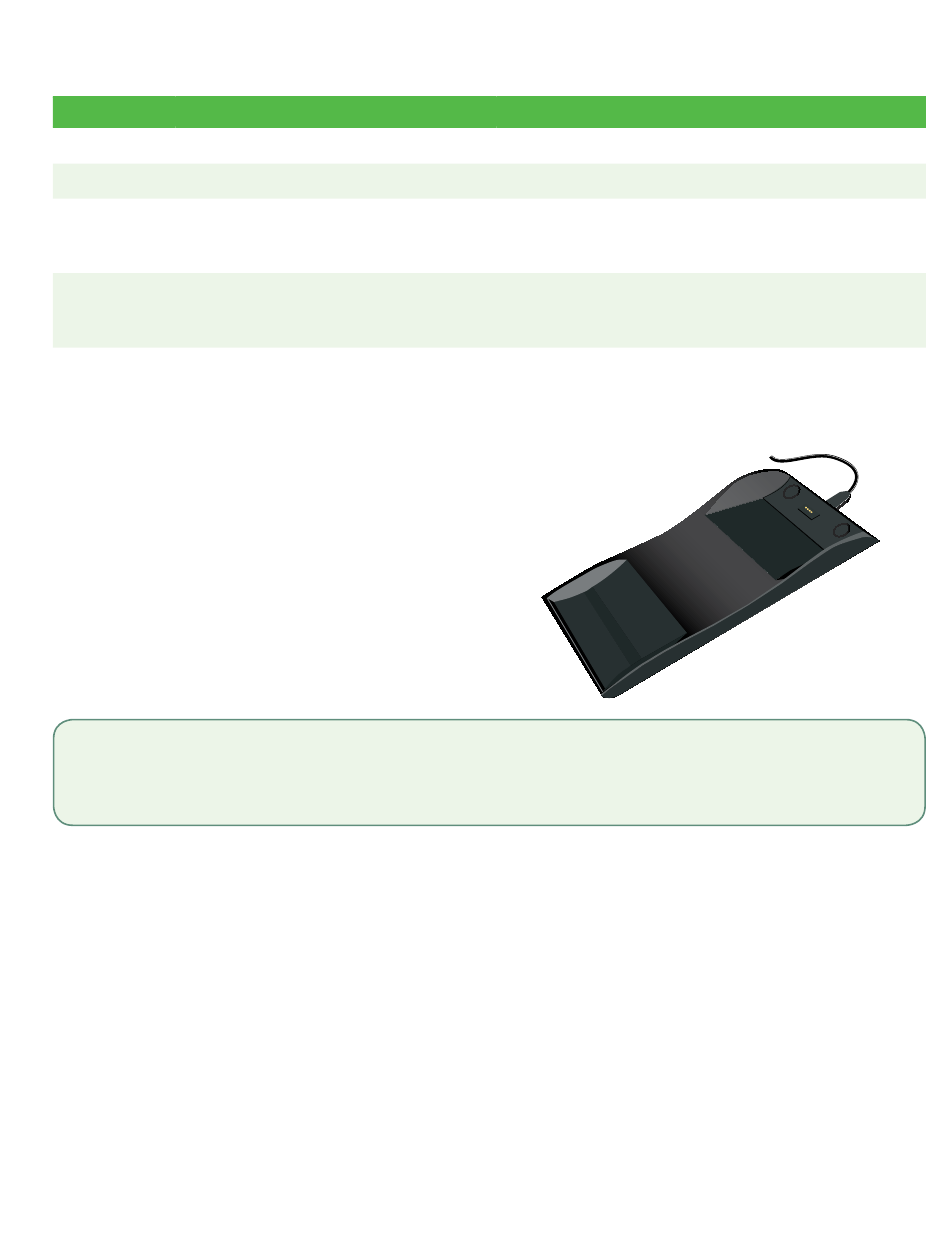

The Charger Base (Optional for HSPA and WiFi)

The charger base is a great option for businesses that
require mobile terminals (restaurants, etc.).
Just plug the power cord into the charger base and the
other end into an electrical outlet. When you want to
recharge an HSPA or WiFi terminal, just place it in the
charger base with the terminal's charge connectors (the
rectangle with eight circles) aligned to the base's charge
connectors (the rectangle with four metal pins).
• Ensure that the charger base's power cord is inserted completely. If it isn't the terminal won't charge.
• Placement of the charger base is important. Make sure it is convenient, but not in a high traffic area
where the terminal could be accidentally knocked or pushed off the base.
About the Solution
E xp l a n a t i o n
The access point / repeater is powered.
The access point has a connection.
The access point is searching for a connection.
The access point is connected.
The number of flashes indicates the strength of the
signal reaching the repeater. Five flashes is the
strongest and one is the weakest.
