Ford Transit

General References

• Bare sheet metal, for example around drilled holes, must be treated with anti-corrosive coating.
• Secure hoses, cables and wiring harnesses with cable ties and fit protective hoses around them at chafing
points.
• Fit edge protectors (split fuel hose, grommet, split-loom, etc.) to sharp edges.
Item Part Number
Number
1 5012085
7 5011594
30 5011595
36 905163
4 5012221
10 5001321
31 5010279
39 5001322
34 5012015
18 620681053R
37 902713
Kit preparation
Refer to the manufacturer's instructions as
necessary:
• Remove left-side interior body panels.
• Remove the headliner.
• Remove the overhead package tray.
• Evacuate the A/C system.
• Remove the battery tray.
• Remove the cover from the power distribu-
tion center under the driver's seat.

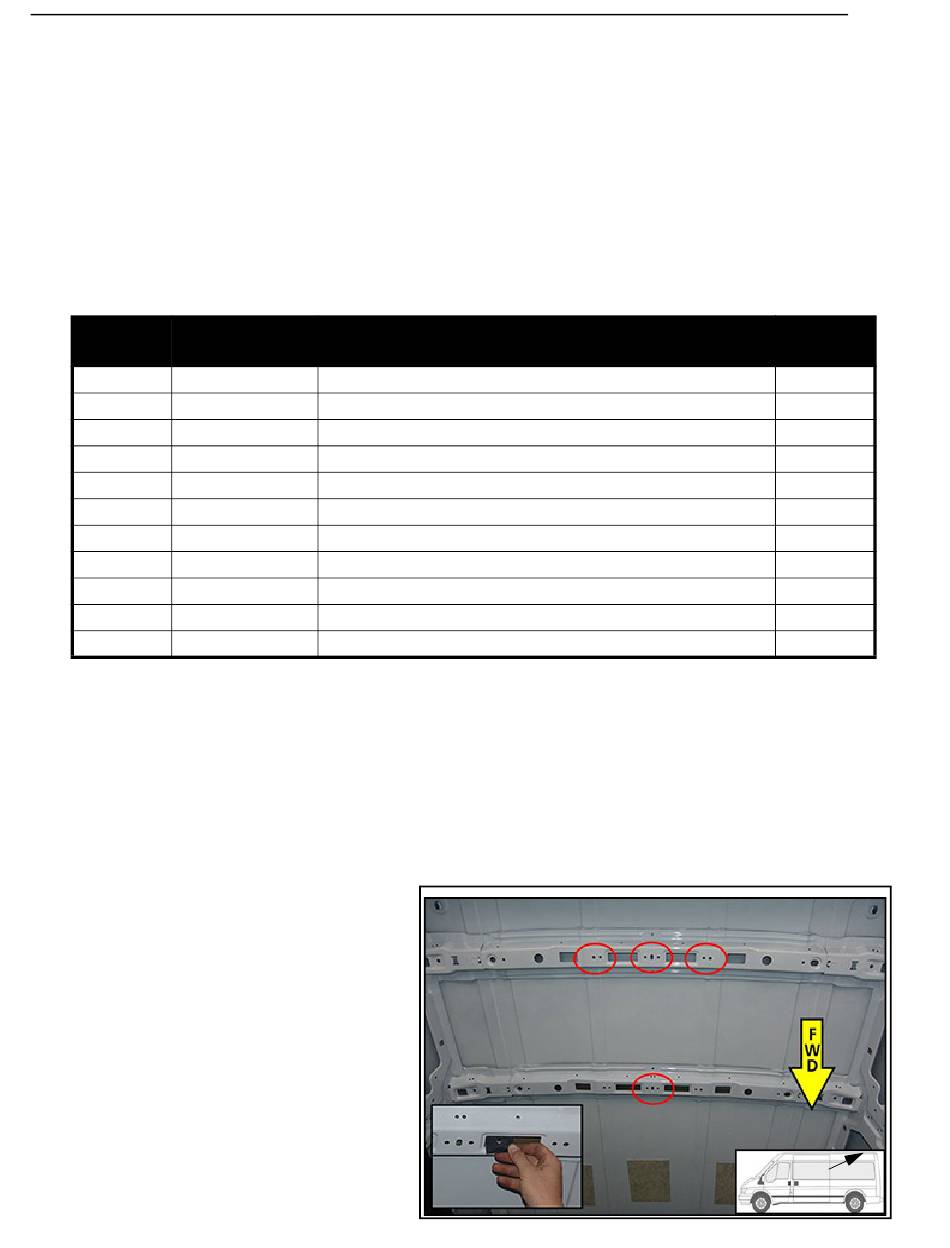

1. Insert four threaded mounting plates (7) in
the locations as shown.
Parts required for VAC Unit Installation
VAC Vancouver 12V W Thermostat
Threaded Plate M8X1.25
Bracket London Rear Mount Transit
M8 Bolt
Bracket Adapter Vancouver
Bolt M6
Bolt M6
Nut M6
Washer Flat M6
2-Way Valve Solenoid
1/4 inch Washer
11
Description
Vancouver
Quantity
1
4
1
4
1
4
8
8
8
1
4
