Webasto Transit Vancouver Standard Manual page 22

Vancouver

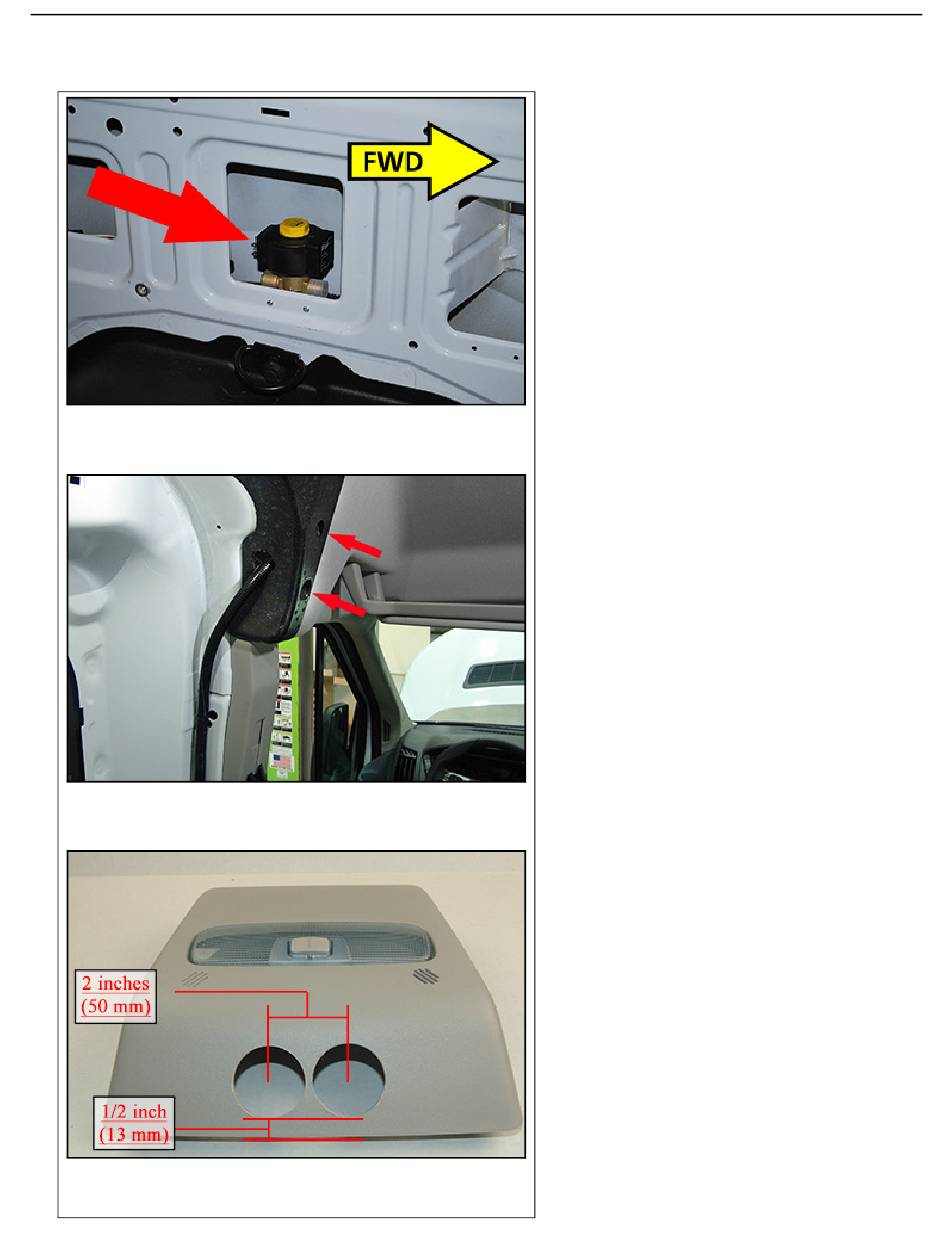

21. Connect the refrigerant valve electrical
connector. Route the wiring harness through
the body cavities to the b-pillar area.
NOTE: Headliner shown installed for refer-
ence purposes.
22. Drill a 1.25 inch (32 mm) hole in the rear of
the left foam panel, approximately centered
between the two indents. Route the control
panel wiring harness through the hole and to
the top center of the windshield. Secure as
necessary.
23.Drill two 1 3/4 inch (45 mm holes) in the map
light housing as indicated.
22
Ford Transit
