Webasto Thermo Top Evo Installation Documentation

Parking heater for seat leon
Hide thumbs Also See for Thermo Top Evo:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Workshop Manual, Installation Documentation

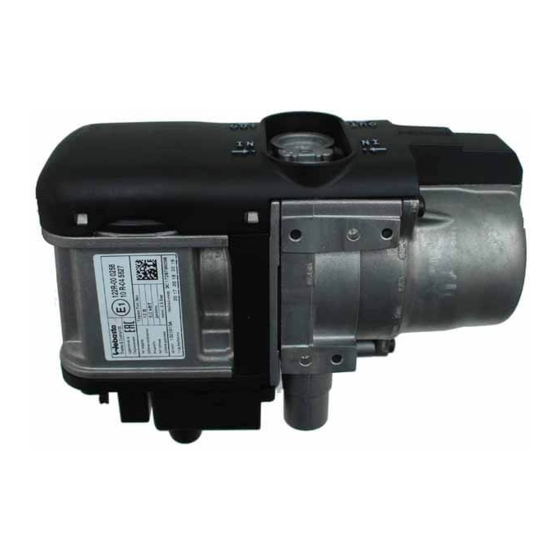

Water Heater
Thermo Top Evo Parking Heater
Installation Documentation
Seat Leon

Validity

Manufacturer
Seat
Motorisation
Fuel
1.4 TSI
Petrol
1.6 TDI
Diesel
SG = Manual transmission
from Model Year 2013
Left-hand drive vehicle
verified equipment variants: Climatronic
not verified:
Total installation time:
Ident. No.: 1319064A_EN
00 0258
Model
Leon
Transmission type Output in kW
6-speed SG
5-speed SG
Front fog light
Passenger compartment monitoring
Xenon / Headlight washer system
LED Headlight
Start-Stop
approx. 8.5 hours
Status: 14.01.2013
E
1
Type
EG BE No. / ABE
5F
e9 * 2007 / 46 * 0094 * ...
Displacement in cm³ Engine code
103
1395
77
1598
CPT
CLH
© Webasto Thermo & Comfort SE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Thermo Top Evo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Webasto Thermo Top Evo

Summary of Contents for Webasto Thermo Top Evo

  • Page 1: Validity

    Water Heater Thermo Top Evo Parking Heater 00 0258 Installation Documentation Seat Leon Validity Manufacturer Model Type EG BE No. / ABE Seat Leon e9 * 2007 / 46 * 0094 * ... Motorisation Fuel Transmission type Output in kW Displacement in cm³...

  • Page 2: Table Of Contents

    Fan Control Necessary Components • Basic delivery scope of Thermo Top Evo based on price list • Installation kit for Seat Leon 2013 Petrol and diesel: 1319063A • Heater control in accordance with price list and upon consultation with end customer •...

  • Page 3: Information On Operating And Installation Instructions

    Installation and repair may ONLY be carried out by persons trained and VEHICLE INSTALLATION REQUIREMENTS certified in a Webasto training course. NEVER try to install or repair We- 2.1. Scope basto heating or cooling systems if you have not completed a Webasto training course, you do not have the necessary technical skills and you 2.1.1.

  • Page 4: Notes On Validity

    • Crimping pliers for cable lug / tab connector 0.5 - 6mm² • Torque wrench for 2.0 - 10 Nm • Hose clamping pliers • Metric thread-setter kit • Webasto Thermo Test diagnosis with current software Dimensions • All dimensions are in mm. Tightening torque values •...

  • Page 5: Preliminary Work

    The installation steps are nearly identical for both the TSI and TDI. Deviations have been documented, apart from that all images show a 1.6 TDI. Heater Installation Location 1 Heater Installation location Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...

  • Page 6: Preparing Electrical System

    Wire sections retain their numbering in the entire document. Separate green/white (gn/ws) wire of LIN- Gateway/SH at the marking. Discard section 1 and connector. Preparing wiring har- ness Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...

  • Page 7: Electrical System

    Route wiring harnesses of heater and heater 2 Positive wire on positive distributor control through protective rubber plug 1 to the 3 Wiring harnesses in original vehicle line duct passenger compartment. Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...

  • Page 8: Fan Control

    Heater control violet Fan relay white 20A fuse brown Replace 30A with 1A blue fuse. LIN- Gateway Insulate wire end and tie back Cutting point Wiring colours may vary. Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...

  • Page 9: Lin- Gateway

    2 Violet/blue (vi/bl) wire of connector A, Pin 16 A/C control unit Connect- 3 Violet/blue (vi/bl) wire of 4-pin connector ing fan-mo- GM, Pin 4 Red (rt) wire of LIN-Gateway/IN Black/white (sw/ws) wire of LIN-Gate- way/OUT Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...

  • Page 10: Digital Timer

    1 M5x16 bolt, washer, nut, existing hole 2 Receiver 3 Receiver bracket Mounting receiver 1 Antenna Mounting antenna Temperature sensor T100 HTM Fasten temperature sensor 1 with adhesive tape. Installing tempera- ture sensor Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...

  • Page 11: Preparing Installation Location

    Bend tab down at an angle of 30°. 1 Bracket of horns 30° Bending bracket at an angle Angle bracket of horn b 1 down by 10°. Bending bracket at an angle 10° Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...

  • Page 12: Preparing Heater

    1 Water connection piece, sealing ring [2x each] 2 5x15 self-tapping bolt, retaining plate of water connection piece Mounting water con- nection piece 1 Bracket 2 5x13 self-tapping bolt [3x] Mounting bracket Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...
  • Page 13 All spring clips = 25 mm dia. 1 Connecting pipe 90° Premount- ing hoses 1.6 TDI Discard section X . Hose A = 18x20mm dia. straight moulded hose Cutting B = 1020 hoses to length Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...
  • Page 14 1 Cable tie 2 Wiring harness of circulating pump [2x] Mounting wiring har- ness Discard section X . 1 Exhaust pipe a = 195 2 Exhaust end section Preparing exhaust pipe Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...
  • Page 15 1 51mm dia. clamp 2 Combustion air silencer 3 5x13mm self-tapping bolt 4 Combustion air pipe Premount- ing com- bustion air silencer Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...

  • Page 16: Installing Heater

    3 in front of the bracket as shown. Mounting heater 2 Original vehicle stud bolt, 5mm shim, M8 flanged nut [2x each] 1 Stud bolt of bracket, large diameter washer, M8 flanged nut Mounting heater Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...

  • Page 17: Fuel

    1 and route to the en- gine compartment. Routing lines Route fuel line and wiring harness of meter- ing pump in corrugated tube 1 to the firewall on original vehicle lines. Routing lines Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...
  • Page 18 1 M6x25 bolt, flanged nut 2 Support angle 3 Perforated bracket 4 Metering pump 5 Intake of metering pump Premount- ing meter- ing pump Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...
  • Page 19 Cut off top from connection piece 1 . Fuel ex- traction Slightly bend open retaining clamp 1 and in- sert it into fuel-tank sending unit. Inserting retaining clamp Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...
  • Page 20 1 Standpipe A 2 10 mm dia. clamp 3 90°, 4.5x10.5mm moulded hose Premount- ing mould- ed hose 1 13.5mm dia. clamp 2 Standpipe A Installing standpipe A Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...
  • Page 21 Check the position of the components; adjust if necessary. Check that they have freedom of movement. 2 Cable tie Connect- 3 Fuel line, hose section, 10 mm dia. clamp [2x] ing meter- ing pump Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...

  • Page 22: 1.4 Tsi Coolant Circuit

    All spring clips without a specific designation = 25 mm dia. 2 = Original vehicle spring clip 1 = Original vehicle hose All connecting pipes = 18x18mm dia. Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...
  • Page 23 Remove hose from engine outlet / heat ex- changer inlet 1. Spring clips will be reused! Cutting point 1 Hose section of engine outlet 2 Hose section of heat exchanger inlet 3 Discard section Cutting point Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...
  • Page 24 1 Spacer bracket 2 Spacer bracket, twistable 2 Hose for heat exchanger outlet Routing on firewall 1 48 mm dia. rubber-coated p-clamp 2 M6x20 bolt, spring lockwasher Fastening to firewall Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...
  • Page 25 Ensure sufficient distance from adjacent com- ponents; correct if necessary. 1 Original vehicle stud bolt, plastic nut 2 38mm dia. rubber-coated p-clamp Aligning and fasten- ing hoses Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...

  • Page 26: Coolant Circuit 1.6 Tdi

    All spring clips without a specific designation = 25 mm dia. 2 = Original vehicle spring clip 1 = EGR. 3 = Original vehicle hose All connecting pipes = 18x18mm dia. Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...
  • Page 27 Spring clips 1 will be reused. Cutting point Push 600mm long heat protection hose 3 onto hose B . 1 Engine outlet pipeline 2 Original vehicle spring clip Connect- ing engine outlet Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...
  • Page 28 3 M6x20 bolt, flanged nut Routing on frame side member Align hoses. Ensure sufficient distance to cat- alytic converter at position 1 , correct if neces- sary. Routing in engine compart- ment Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...
  • Page 29 1 Original vehicle stud bolt, plastic nut 2 38mm dia. rubber-coated p-clamp Connec- tion of heater inlet Align hoses. Ensure sufficient distance from adjacent components; correct if necessary. Connec- tion of heater out- Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...

  • Page 30: Final Work

    1 Wheel well trim mounted 2 Underride protection installed Aligning exhaust end section Webasto Thermo & Comfort SE Postfach 1410 82199 Gilching Germany Internet: www.webasto.com Technical Extranet: http://dealers.webasto.com Ident. No.: 1319064A_EN Status: 14.01.2013 © Webasto Thermo & Comfort SE...

  • Page 31: Operating Instructions For End Customer

    Seat Leon Operating Instructions for End Customer Please remove page in case of Climatronic and add it to the vehicle operating instructions. Note: We recommend matching the heating time to the driving time. Heating time = driving time Example: For a driving time of approx. 20 min. (in one direction), we recommend not exceeding a switch-on time of 20 min.
