NOTE: Due to vehicle variances some con-
nectors will be different than the one pic-
tured.

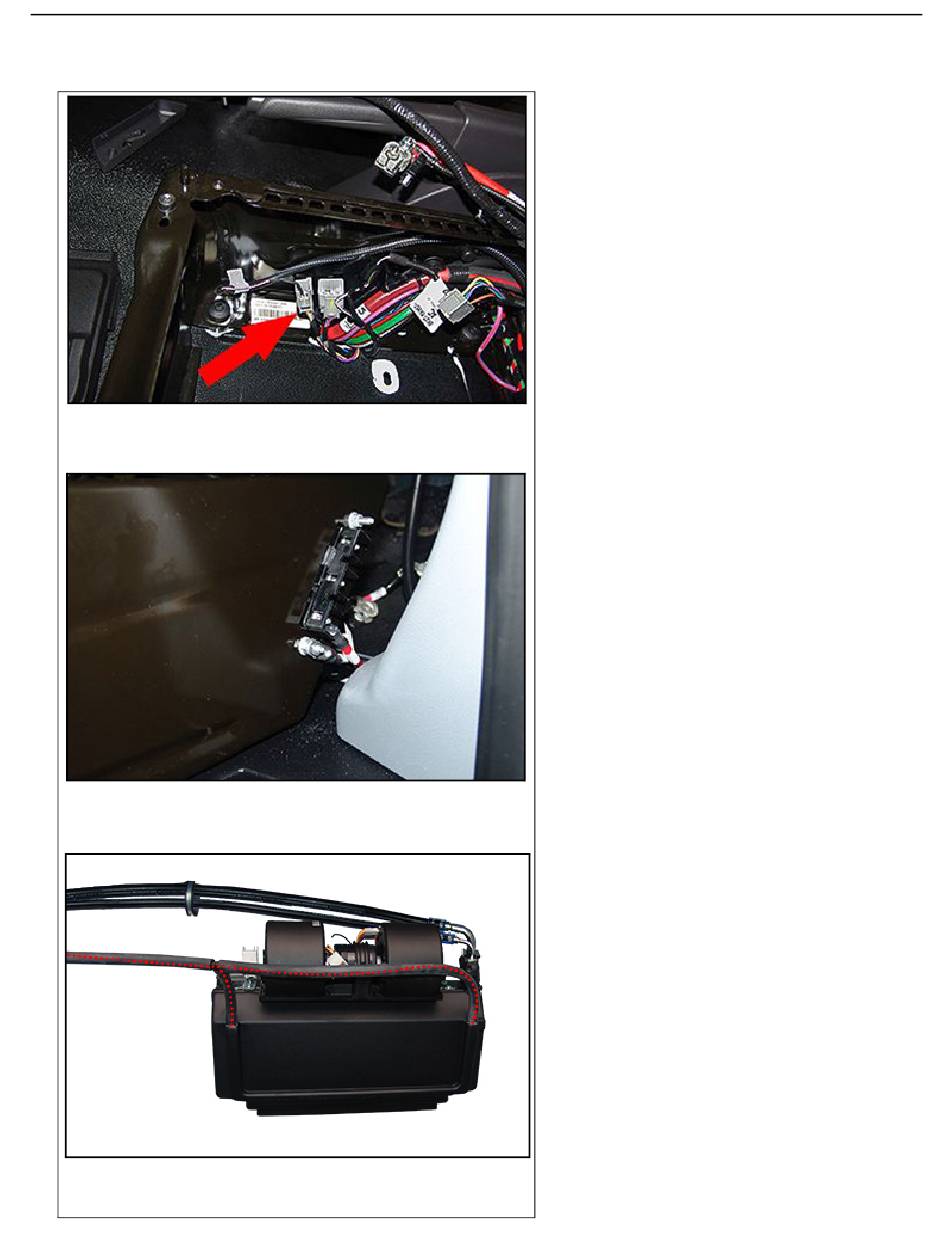

27.Connect the pink wire to a 12V ignition
circuit at the open connector in the battery
compartment.
28. Connect the positive wire to the fuse
installed earlier. Connect the ground wire to a
good ground point. Route and secure the
wiring to prevent chaffing.
NOTE: Do not secure the drain hose to the
other hoses at the roof level. The drain hose
must be lower than the Vancouver VAC
unit.
29.Connect the drain hoses to the Vancouver
VAC unit. Tie both sides together with the T
fitting (35).
24
