Webasto Thermo Top Evo Installation Documentation

Parking heater for audi a6 / a6- avant / audi a7 sportback
Hide thumbs Also See for Thermo Top Evo:
Table of Contents

Advertisement

Quick Links

See also: Workshop Manual , Installation Documentation

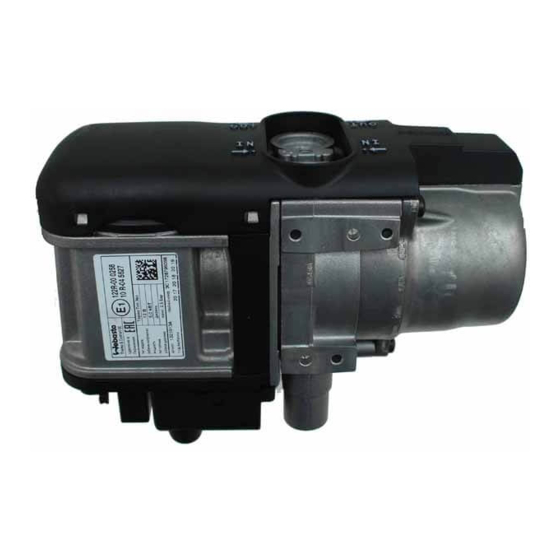

Water Heater
Thermo Top Evo Parking Heater
Installation Documentation
Audi A6 / A6- Avant /
Audi A7 Sportback

Validity

Manufacturer
Audi
Audi
Audi
Motorisation
Fuel
2.0 TDI
Diesel
3.0 TDI quattro
Diesel
3.0 TDI quattro
Diesel
AG = Automatic transmission
from model year 2011
Left-hand drive vehicle
Verified equipment variants: Comfort automatic air-conditioning / 4-zone comfort automatic air-conditioning
Total installation time:
Note:
Verify part number index of the A/C control panel at the connector end.
For A/C control panels that end with a double index (two letters, see section "Preliminary Work"), the installation
should be carried out WITHOUT the time-delay relay.
Ident. No.: 1317500E_EN
00 0258
Model
A6
A6 Avant
A7 Sportback
Transmission type Output in kW
Multitronic
Multitronic
AG
Passenger compartment monitoring
NebelscheinwerferXenon with headlight washer system
Front fog lights
NebelscheinwerferStart / Stop
LED headlight
about 10 hours
Status: 19.03.2015
E
1
Type
EG-BE No. / ABE
4G
e1 * 2007 / 46 * 0436 * ...
4G
e1 * 2007 / 46 * 0436 * ...
4G
e1 * 2007 / 46 * 0436 * ...
Displacement in cm³ Engine
130
1968
180
2967
235
2967
code
CGLC
CDUC
CVUA
© Webasto Thermo & Comfort SE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Thermo Top Evo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Webasto Thermo Top Evo

Summary of Contents for Webasto Thermo Top Evo

  • Page 1: Validity

    Water Heater Thermo Top Evo Parking Heater 00 0258 Installation Documentation Audi A6 / A6- Avant / Audi A7 Sportback Validity Manufacturer Model Type EG-BE No. / ABE Audi e1 * 2007 / 46 * 0436 * ... Audi A6 Avant e1 * 2007 / 46 * 0436 * ...

  • Page 2: Table Of Contents

    The total installation time may vary for vehicle equipment other than provided. Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...

  • Page 3: Information On Operating And Installation Instructions

    1.7.1. A clearly visible tell-tale in the operator's field of view shall inform when certified in a Webasto training course. NEVER try to install or repair We- the combustion heater is switched on or off. basto heating or cooling systems if you have not completed a Webasto...

  • Page 4: Information On Validity

    • Torque wrench for 2.0 - 10 Nm • Hose clamping pliers • Metric thread-setter kit • 25mm dia. punching tool • Webasto Thermo Test diagnosis with current software Measurements • All measurements are in mm! Tightening torque values • Tightening torque values of 5x13 heater bolts and 5x11 heater stud bolts = 8Nm.

  • Page 5: Preliminary Work

    • Remove years that do not apply from the type and duplicate label. • Attach the duplicate label (type label) visibly in the appropriate place in the engine compartment. Heater Installation Location 1 Heater Installation Location Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...

  • Page 6: Preparing Electrical System

    0,75² wires 0,75² Connect- 0,75² ing wires to time-delay relay sock- 0,75² All vehicles 1 Turn perforated bracket about 90° in its longitudinal axis Preparing perforated bracket Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...
  • Page 7 Cut thread of M6 in existing hole 2 of positive support point 1 (check depth, about 8mm)! Preparing positive support point Connector X7 Disman- tling con- nector of metering pump Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...

  • Page 8: Electrical System

    4 . If necessary, bend perforated bracket 3 again! 1 Wiring harnesses of heater, heater control 1 M5x16 bolt, washer [2x], nut 2 50 mm edge protection 2 F1-2 fuses (replace F2 with 1A) Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...

  • Page 9: Fan Controller Without Time-Delay Relay

    Connection to 20-pin T20c connector 1 of A/C control unit, pin 10. Crimp microtimer onto green/white (gn/ws) wire and insert into free pin 10 socket. 1 T20c connector dismantled Connec- tion of A/C control unit Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...

  • Page 10: Fan Controller With Time-Delay Relay

    Switch for glove compart- grey er control ment lighting blue Time-delay relay ST A 2-pin connector HSF Wiring harness of glove compartment lighting Cutting point Wiring colours may vary. Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...
  • Page 11 3 Brown (br) wire of 2-pin connector pin 1 partment 5 Grey (gr) wire of 2-pin connector pin 2 lighting Blue (bl) wire of ZR/87 Brown (br) wire of ZR/87z Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...
  • Page 12 Connection to 20-pin T20c connector 1 of A/C control unit, pin 10. Crimp microtimer onto green/white (gn/ws) wire and insert into free pin 10 socket. 1 T20c connector dismantled Connec- tion of A/C control unit Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...

  • Page 13: Multicontrol Car Option

    1 Receiver 2 Original vehicle bolt 3 Bracket Installing receiver 1 Antenna Installing antenna Temperature sensor T100 HTM Fasten temperature sensor 1 with adhesive tape. Installing tempera- ture sensor Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...

  • Page 14: Preparing Installation Location

    Preparing Heater 1 Water connection piece, sealing ring [2x each] 2 Self-tapping bolt 5x15, retaining plate, water connection piece Assem- bling water connec- tion piece Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...
  • Page 15 1 Exhaust pipe View of ex- haust pipe Lightly bend exhaust end section 2 at the end as shown (threaded insert points to the right). 1 Silencer Preparing silencer Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...
  • Page 16 H and cut to length (3.0 TDI only). Heat shrink plastic tubing on position 1, 3.0 TDI on- Preparing hoses 1 50 mm long heat shrink plastic tubing [4x] 2 150 mm long heat shrink plastic tubing Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...
  • Page 17 = 25mm dia. [2x]! Premount- ing hoses Tighten bolt of 51mm dia. clamp. 1 Combustion air pipe 2 Combustion air silencer Premount- ing com- bustion air silencer Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...

  • Page 18: Installing Heater

    1 Bracket part B 2 Self-tapping bolt 5x13 [3x] 3 M8x20 bolt, spring lockwasher [2x] Installing Heater 1 Wiring harness of heater [2x] Attaching wiring har- ness to heater Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...

  • Page 19: Coolant Circuit 2.0 Tdi

    All spring clips without a specific designation = 25 mm dia. 1 = Original vehicle circulating pump 2 = Original vehicle spring clip All connecting pipes = 18x18 mm dia. Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...
  • Page 20 1 Original vehicle circulating pump Cutting 3 Hose section on engine outlet point 1 Punch in 25 mm dia. hole [2x] 2 Protective rubber plug Preparing protective rubber plug Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...
  • Page 21 Mount air filter box 2. Route hoses A and H (below hose A, hidden) through original vehi- cle pass through into the coolant reservoir! Routing in engine compart- ment Connect- ing hoses Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...
  • Page 22 1 Hose section on engine outlet 2 Spacer bracket Connect- ing engine outlet Ensure sufficient distance to neighbouring components, adjust, if necessary. Aligning hoses Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...

  • Page 23: Coolant Circuit 3.0 Tdi

    All spring clips without a specific designation = 25 mm dia. 1 = Original vehicle circulating pump 2 = Original vehicle spring clip All connecting pipes = 18x18 mm dia. Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...
  • Page 24 Routing in engine compart- ment 3.0 TDI quattro 180kW Remove hose 1 of engine outlet/original vehi- cle circulating pump. Spring clip on circulating pump will be reused. Cutting point Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...
  • Page 25 2 Hose on heat exchanger inlet 3 Original vehicle hose 4 Original vehicle spring clip Connect- ing heat ex- changer inlet Route hose A through rubber-coated p-clamp 1 . Connect- ing heater inlet Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...
  • Page 26 3.0 TDI quattro 235kW 1 Hose section on engine outlet Connect- ing engine outlet All vehicles Ensure sufficient distance to neighbouring components, adjust, if necessary. Aligning hoses Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...

  • Page 27: Fuel

    Installing lines Route fuel line and wiring harness of meter- ing pump into corrugated tube 1 through orig- inal vehicle cable duct 2 to the underbody. Installing lines Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...
  • Page 28 5 M6x25 bolt, flanged nut Premount- ing meter- ing pump 1 180° moulded hose 2 10 mm dia. clamp [2x] 3 90° moulded hose Premount- ing meter- ing pump Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...
  • Page 29 4 10 mm dia. clamp Remove fuel-tank sending unit 1 in accord- ance with manufacturer's instructions. Drill out connection piece 2 to 2.5 mm dia. Fuel ex- traction Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...
  • Page 30 Check the position of the components; adjust if necessary. Check that they have freedom of movement. 1 10 mm dia. clamp 2 Fuel line in corrugated tube Connect- ing meter- ing pump Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...

  • Page 31: Exhaust Gas

    Centrally position exhaust end section 2 in hole. 1 Underride protection mounted Aligning exhaust end section Ensure sufficient distance to neighbouring components, adjust, if necessary. Aligning si- lencer Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...

  • Page 32: Final Work

    3. 1 Time-delay relay mounted Aligning time-delay relay sock- Webasto Thermo & Comfort SE Postfach 1410 82199 Gilching Germany Internet: www.webasto.com Technical Extranet: http://dealers.webasto.com Ident. No.: 1317500E_EN Status: 19.03.2015 © Webasto Thermo & Comfort SE...

  • Page 33: Operating Instructions For End Customer

    Audi A6 / A6- Avant / Audi A7 Sportback Operating Instructions for End Customer Please remove page and add to the vehicle operating instructions. Note: We recommend matching the heating time to the driving time. Heating time = driving time Example: For a driving time of approx.
