General References; Vehicle Prep - Webasto ProMaster Vancouver Standard Manual

Vancouver
• Bare body parts, around drilled holes for example, must be treated with an anti-corrosive coating.
• Secure hoses, cables and wiring harnesses with cable ties and fit protective hoses around them at chafing points.
• Fit edge protectors (grommet, split-loom, etc.) to sharp edges.
AAA
1. Disconnect the negative battery cable.
2. Discharge and evacuate the A/C system.
3. Remove the following components, refer to manufacturer's instructions as needed:
• Driver's side step-well trim panel
• Driver's side lower b-pillar trim panel
• Upper headliner (discard)
• Passenger's side A-pillar trim panel
• Driver's side knee bolster
Item
Part Number
Number
5012081A
3
4 5012082A
7 5012085B
38 5001321A
11 5011511A
21 5011938A

General References

Vehicle Prep

Vancouver Kit Installation
Parts required for the Vancouver kit installation:
BRACKET VANCOUVER PROMASTER LEFT
BRACKET VANCOUVER PROMASTER RIGHT
VAC ASSY VANCOUVER 12V W-THERMOSTAT
BOLT HFH M6-1.0 6g x 20 8.8 ZP CLEAR
MOUNTING PLATE LONDON PROMASTER
EDGE TRIM 0.125X0.5INCH-2FT
AAA
Description

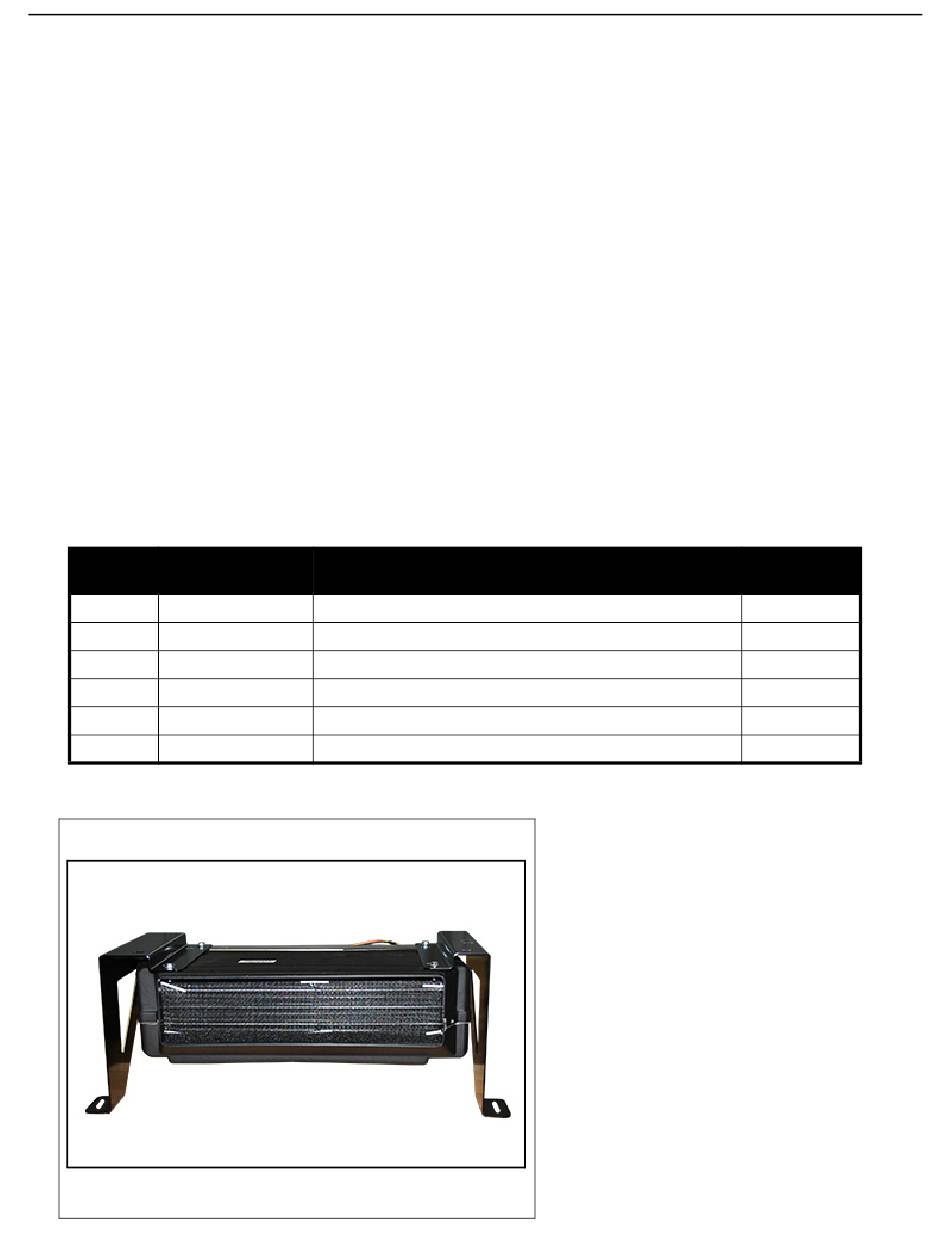

4. Install the left and right Vancouver mounting
brackets (3,4) on the Vancouver unit (7)
using four M6 bolts (38).
12
Ram ProMaster
Quantity
1
1
1
4
2
As needed
