Webasto Transit Vancouver Standard Manual page 19

Ford Transit
NOTE: Fittings are shown without hoses for
clarity.

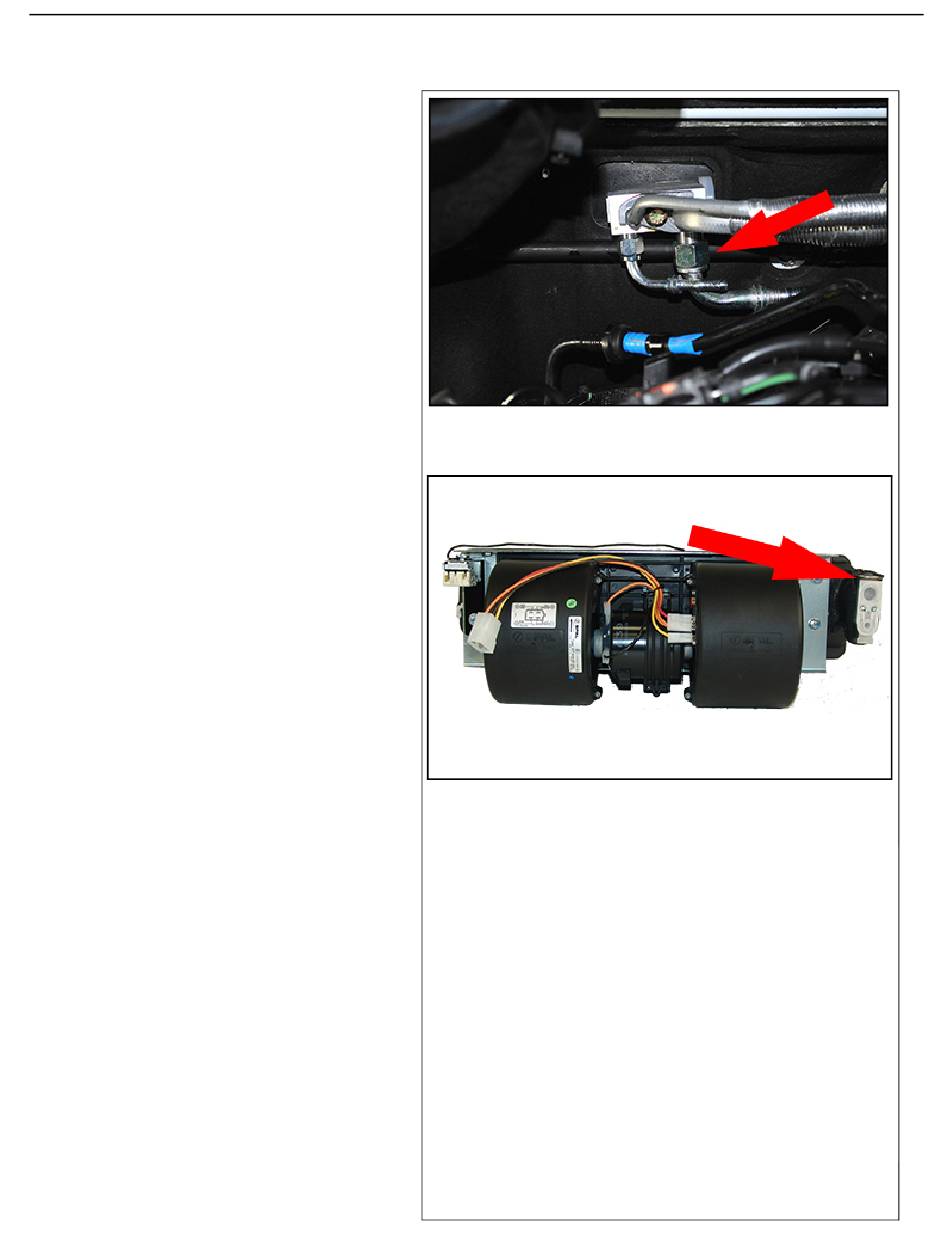

14. Using the supplied fitting, connect the
refrigerant hose (16) to the low-pressure port
of the tie-in kit. Route the A/C hose along the
chassis and through the holes drilled in the
floor.
15. Using the #10 90º fitting (29), connect the
low-pressure A/C hose to the evaporator
assembly. Tighten the TXV plate at this time.
16. Using P-clips (32, 9), secure hoses.
19
Vancouver
