1 Vancouver VAC unit Assembly
2 Refrigerant Valve
Special Tools
– Hose-clamping pliers
– Hole saw kit
– Refrigerant recovery and recharging machine
– Oetiker crimping pliers
DOC P/N 5012356B
1
2
KIT P/N 5012355
Ford Transit
2015 - Present 3.5 Liter
148" wheelbase - High-roof
For kit 5012355
Special instructions for these models
Part locations may differ slightly dependent on
the vehicle-specific configuration.
Printed in USA
Webasto N.A., Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Webasto Transit Vancouver Standard
Summary of Contents for Webasto Transit Vancouver Standard

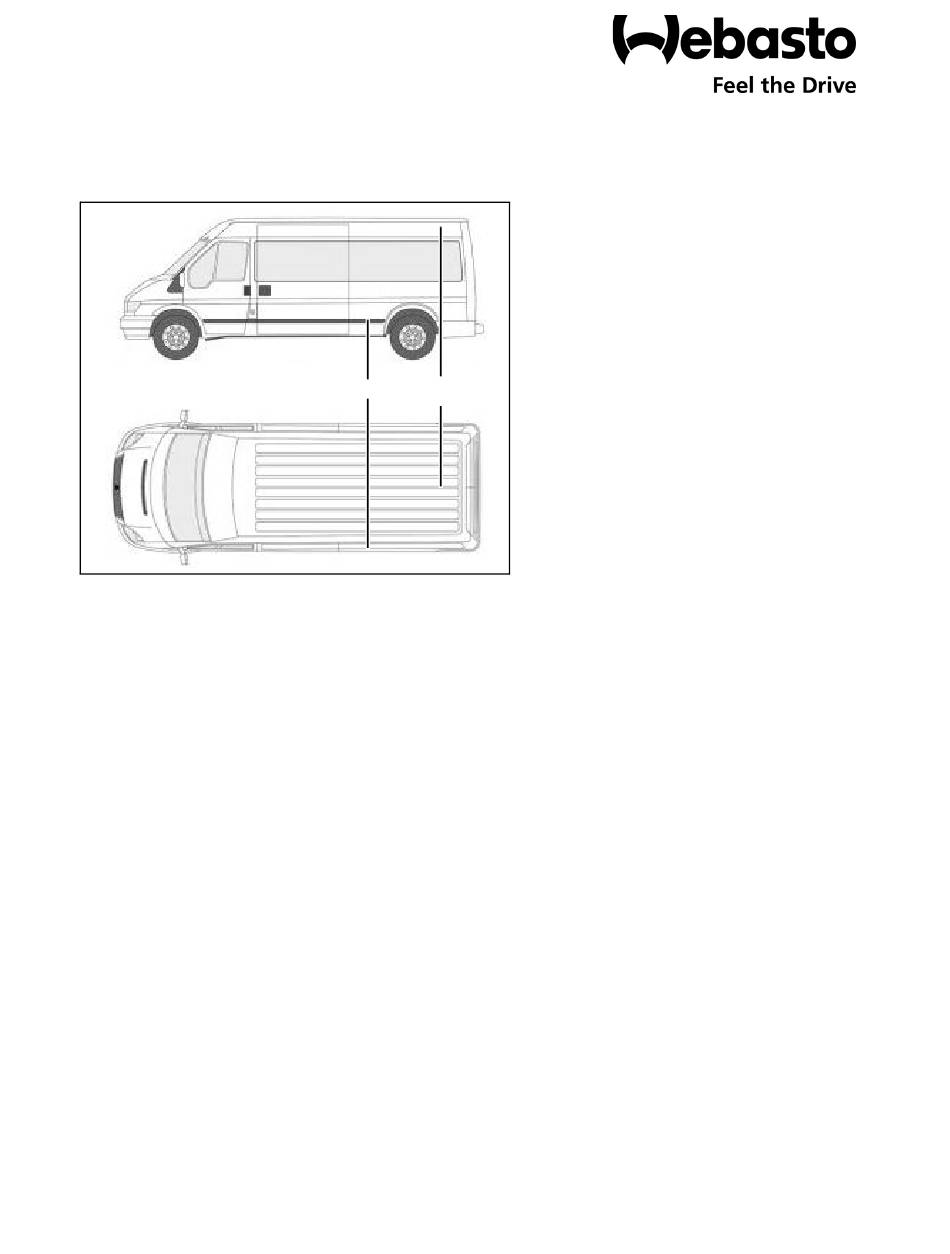

- Page 1 Legend 1 Vancouver VAC unit Assembly 2 Refrigerant Valve Special Tools – Hose-clamping pliers – Hole saw kit – Refrigerant recovery and recharging machine – Oetiker crimping pliers DOC P/N 5012356B KIT P/N 5012355 Printed in USA Webasto N.A., Inc.
-
Page 2: Table Of Contents
Vancouver Ford Transit Table of Contents Kit Contents ..........4 INTRODUCTION . - Page 3 – Installation and repair of Webasto heating and cooling systems requires special Webasto training, technical information, special tools and special equipment. – NEVER attempt to install or repair Webasto heating or cooling system unless you have the proper certifications, technical skills, tools, and equipment required to properly complete the necessary procedures.
-
Page 4: Kit Contents
Vancouver Ford Transit Kit Contents Item Part Number Description Quantity Number VAN KIT VANCOUVER 12V W-Thermostat 5012085A 5012113A CONTROL HEAD ASSY A/C ONLY TRANSIT 5012356B INSTALL MANUAL TRANSIT –Vancouver 5012221A BRACKET ADAPTER VANCOUVER 5011613 TIE-IN KIT TRANSIT 5012357A WIRE HARNESS VANCOUVER TRANSIT 5011594 THREADED PLATE M8X1.25 620406Z... - Page 5 Ford Transit Vancouver FITTING REFRIGERANT 45 -06THD - 5011028 06HOSE SCREW PAN HD 10-16ST X 1 SELF-DRILL- 902006A 5011428A CAP SCREW SOCKET HD M6-1 12MM SS PPC201065A TXV MOUNTING PLATE OUTER 152560Z LOCK WASHER REFRIGERANT HOSE BURGAFLEX H-10- 5011166A 10 meters 3090-R REFRIGERANT HOSE BURGAFLEX H-06- 5011164...
- Page 6 Vancouver Ford Transit 5011556A INSULATION HOSE ID 0.875IN X 6 FT 5001085A CABLE TIE HEAVY DUTY BLACK 5011929A SCREW - PAN HEAD 10X1.5INC 905682A GROMMIT 2 inch FITTING REFRIGERANT 45 -06MTHD - 5011202 06HOSE 62U003AA093 AIR DUCT ENDPIECE MODULAIR 1 Black 5011002A FITTING REFRIGERANT 90 -6CONN -6HOSE 5011005A...
- Page 7 Ford Transit Vancouver 5000534A SCREW PAN T20 SS 5012015 WASHER FLAT M6X18 629069011A DRAIN TEE 905163 M8 BOLT 902713 ¼” WASHER 629070001 ANTI-CONDENSATION TAPE 1 meter 5001322A NUT M6...
-
Page 8: Introduction
Failure to properly flush, purge, or pressure test a system for leaks can result in serious injury or death from explosion, fire or contact with acid-saturated refrigerant or oil mists. Webasto recommends that the system be serviced using a flush and purge station such as a Robinair ®... -
Page 9: Scope
Location of the Webasto provided components, wiring and control devices are important for proper operation. Failure to comply with the installation instructions provided may result in poor operation or damage to the Webasto unit, the vehi- cle, or vehicle components. -
Page 10: Safety
609 of the Clean Air Act and that all refrigerant be reclaimed and recycled. Vehicle operation must not be impaired due to any Webasto installed components. All power circuits must be fused with an appropriate fuse or circuit breaker. -
Page 11: General References
Ford Transit Vancouver General References • Bare sheet metal, for example around drilled holes, must be treated with anti-corrosive coating. • Secure hoses, cables and wiring harnesses with cable ties and fit protective hoses around them at chafing points. • Fit edge protectors (split fuel hose, grommet, split-loom, etc.) to sharp edges. Parts required for VAC Unit Installation Item Part Number... - Page 12 Vancouver Ford Transit 2. Install the mounting bracket (30) using four bolts (36) and washers (37). 3. Install the Vancouver top bracket (4) to the Vancouver unit (1) using four bolts (10). 4. Mount the Vancouver assembly to the mounting bracket using 8 bolts (31), nuts (39), and washers (34).
- Page 13 Ford Transit Vancouver 5. Remove the following items from the refrigerant valve (18): • Yellow cap • Black threaded retainer • Black plastic sleeve (discard) NOTE: The arrow on the valve indicates the direction of flow. 6. Install the refrigerant valve and bracket in the lower left corner of the vehicle.
-
Page 14: Parts Required For Hose Installation
Vancouver Ford Transit Parts required for Hose installation Item Part Number Description Quantity Number 5011613 Tie-In Kit Transit 5011002 Fitting Refrigerant 90 -06 5011028 Fitting Refrigerant 45 -06 5011164 Refrigerant Hose H-06 As needed 5011428 Cap Screw PPC201065A TXV Mounting Plate Outer 152560 Lock Washer 5011202... - Page 15 Ford Transit Vancouver 8. Drill a 1 3/4 inch (45 millimeters) hole in front of the left-rear wheel, similar to previously done. Protect the cut edge against corrosion and install the rubber grommit (25). 9. Remove the A/C manifold from the TXV. Ensure that the sealing surfaces are clean of debris.
-
Page 16: A/C Hose Crimping
Vancouver Ford Transit A/C Hose Crimping NOTE: The proper method for crimping A/C hoses is outlined below. Refer to these steps if you are unfamiliar with making A/C hoses. A. Using blade-type hose cutters, cut the hose in one cut. The cut edge must be clean and flush. B. - Page 17 Ford Transit Vancouver D. Lubricate the fitting with PAG oil and insert the fitting until the shoulder of the fitting is touching the clip holder. E. Using Oetiker pliers, crimp the clips closed.
- Page 18 Vancouver Ford Transit NOTE: Before cutting any hoses ensure there is enough hose for proper routing and securing of the hose. 11.Using a #6 90º and a #6 45º fitting (28, 26), connect the A/C hose (17) between the evaporator high-pressure port and the outlet of the refrigerant valve.
- Page 19 Ford Transit Vancouver NOTE: Fittings are shown without hoses for clarity. 14. Using the supplied fitting, connect the refrigerant hose (16) to the low-pressure port of the tie-in kit. Route the A/C hose along the chassis and through the holes drilled in the floor.
-
Page 20: Parts Required For Electrical Installation
Vancouver Ford Transit Parts required for Electrical Installation Item Part Number Description Quantity Number 5012357 Wiring Harness Vancouver Transit 902006 Self Tapping Screw 5011929 Self Tapping Screw 5012113 Control Head Assy A/C Only 5000534 Screw Pan Head 629069011 Drain Tee 620406 Cable Tie 11 inch As needed... - Page 21 Ford Transit Vancouver 18. Route the wiring harness down the left-rear corner of the body, following the same routing as the A/C hoses. NOTE: Any extra harness length can be secured to the vehicle as needed. NOTE: Be sure the relay- and fuse-mounting screws will not penetrate the outer sheet metal.
- Page 22 Vancouver Ford Transit 21. Connect the refrigerant valve electrical connector. Route the wiring harness through the body cavities to the b-pillar area. NOTE: Headliner shown installed for refer- ence purposes. 22. Drill a 1.25 inch (32 mm) hole in the rear of the left foam panel, approximately centered between the two indents.
- Page 23 Ford Transit Vancouver 24. Install the control panel (2) using four screws (33). Connect the control panel connector and install the map light assembly. 25. Route the power portion of the wiring harness under the flooring to the battery compartment. NOTE: Due to vehicle build variations, the images in this manual may not be represen- tative.
- Page 24 Vancouver Ford Transit NOTE: Due to vehicle variances some con- nectors will be different than the one pic- tured. 27.Connect the pink wire to a 12V ignition circuit at the open connector in the battery compartment. 28. Connect the positive wire to the fuse installed earlier.
-
Page 25: Initial Start
Ford Transit Vancouver 30. Route the drain hose from the Vancouver VAC unit assembly down the left-rear corner of the vehicle and through the factory- supplied hole in the floor. 31.Cut the drain hose about 1 in. (25 mm) from the bottom of the floor at a 45°... -
Page 26: Wiring Diagram
Ford Transit Wiring Diagram... - Page 27 Ford Transit Vancouver...
- Page 28 Webasto Product N.A., Inc. Technical Assistance Hotline USA: (800) 555-4518 Canada: (800) 667-8900 www.webasto.us Org.11/2016 Rev. 05/2020 www.techwebasto.com...
